# Categorical outcomes: logistic regression
## Professor Andy Field

<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/twitter_60.png">
  <span style="line-height:40px;">@profandyfield</span>
</div>
<div>
  <img style="vertical-align:middle; width:60px" src="media/youtube.png">
  <span style="line-height:40px;">www.youtube.com/user/ProfAndyField/</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/ds_com_fav.png">
  <span style="line-height:40px;">www.discoveringstatistics.com</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/milton_grey_fav.png">
  <span style="line-height:40px;">www.milton-the-cat.rocks</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/discovr_fav.png">
  <span style="line-height:40px;">www.discovr.rocks</span>
</div>

???
h or ?: Toggle the help window
j: Jump to next slide
k: Jump to previous slide
b: Toggle blackout mode
m: Toggle mirrored mode.
p: Toggle PresenterMode
f: Toggle Fullscreen
t: Reset presentation timer
<number> + <Return>: Jump to slide <number>
c: Create a clone presentation on a new window

---
class: center, middle, title-slide, inverse
layout: false
background-image: url("media/as_snowy_village.jpg")
background-size: cover
exclude: ![:isSV]

# Categorical outcomes: .red[Christmas] log~~istic~~ regression
## ~~Professor Andy Field~~ .red[Santa]

---

background-image: none
background-color: #000000
class: no-scribble
exclude: ![:isSV]

???

Santa: long intro

[After Santa says about Krampus and head popping out of bucket ...]

Andy: Santa, I can help. Tell me about your operations.

---

background-image: none
background-color: #000000
class: no-scribble
exclude: ![:isSV]

<video width="100%" height="100%" controls id="my_video">
    <source src="media/xmas_santa_02.mp4" type="video/mp4">
</video>
---

class: center

![:scale 83%](media/spine_content_map.png)
???

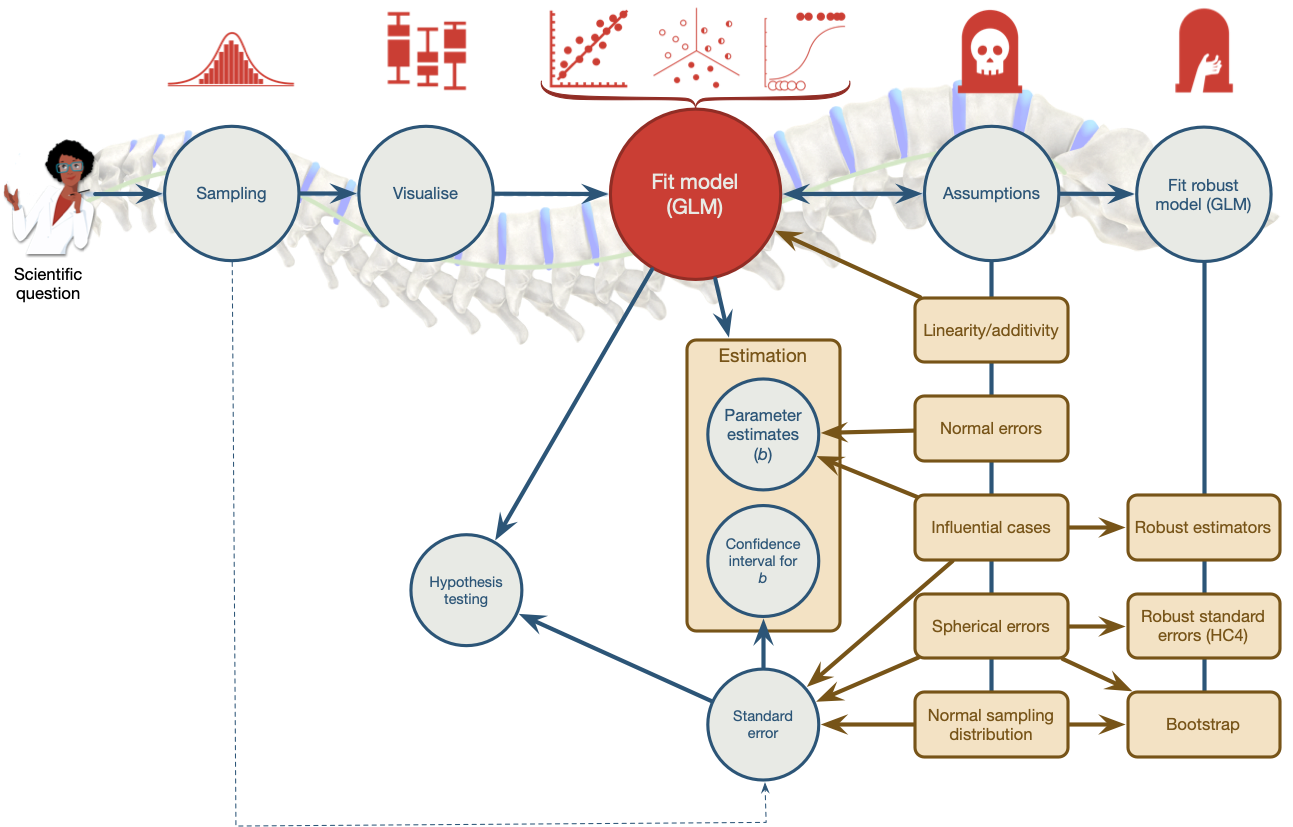

We've seen this map of the process of fitting models before

---
class: center
exclude: ![:isSV]

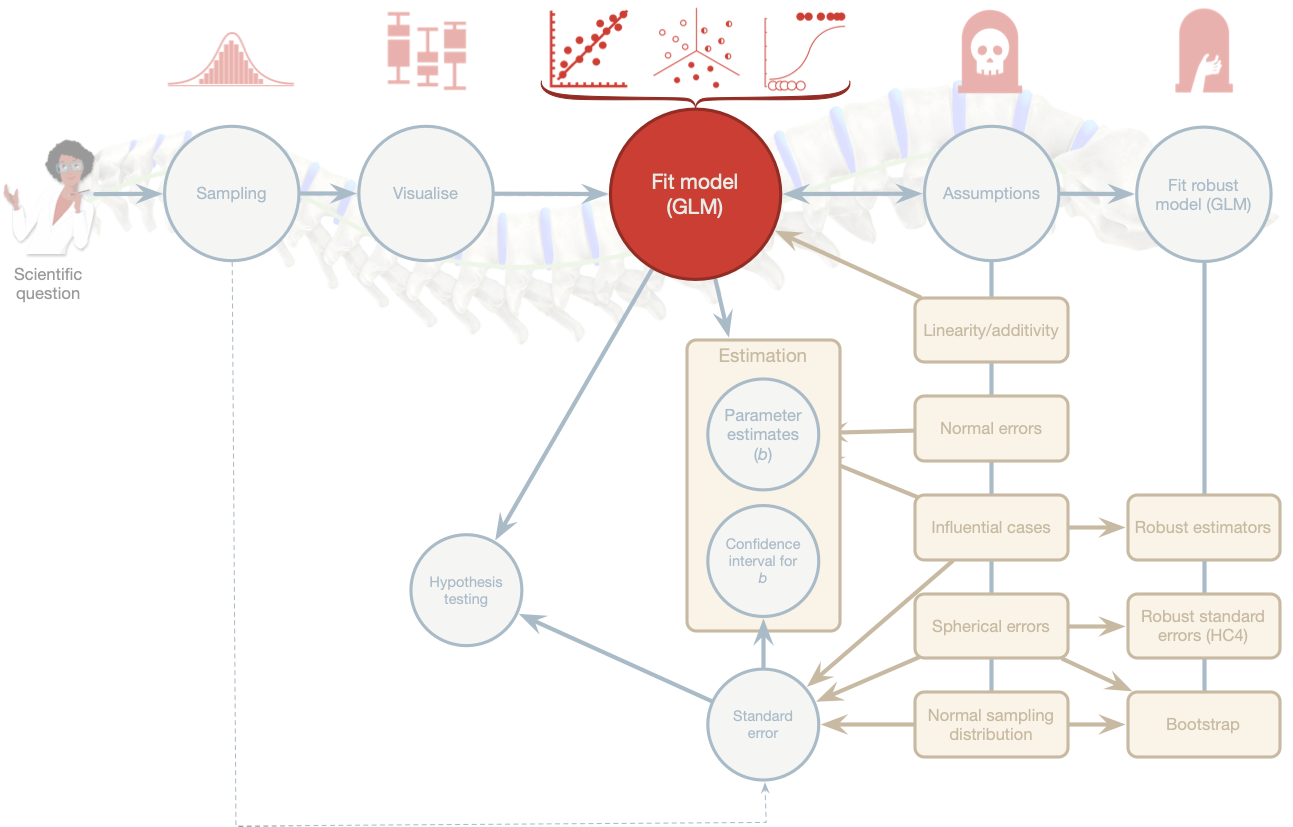

![:scale 83%](media/spine_lec_04.png)

???

Today we focus back on the model itself to look at the form of the model we're fitting. The faded stuff still applies though - we'll look at bias, robust models, and of course samples and estimation and so on. But they are the same as for other models, what is different is the form of the model we're fitting.

---
class: inverse
background-image: url("media/as_blu_house_93514381.jpg")
background-size: cover

# A festive example

.pull-right[
Santa Claus wanted to test the effects of different types of treats on whether presents got delivered:

* Predictors

+ **treat**: Christmas pudding, Mulled wine

* Outcome

+ **delivered**: Did the presents get delivered?
]

???

---
class: inverse
background-image: url("media/as_santa_moon_36326866.jpg")
background-size: cover
exclude: ![:isSV]

---
class: inverse
background-image: url("media/as_santa_moon_36326866.jpg")
background-size: cover

# The data in <svg style="height: 1em; top:.04em; position: relative; fill: #136CB9;" viewBox="0 0 581 512"><path d="M581 226.6C581 119.1 450.9 32 290.5 32S0 119.1 0 226.6C0 322.4 103.3 402 239.4 418.1V480h99.1v-61.5c24.3-2.7 47.6-7.4 69.4-13.9L448 480h112l-67.4-113.7c54.5-35.4 88.4-84.9 88.4-139.7zm-466.8 14.5c0-73.5 98.9-133 220.8-133s211.9 40.7 211.9 133c0 50.1-26.5 85-70.3 106.4-2.4-1.6-4.7-2.9-6.4-3.7-10.2-5.2-27.8-10.5-27.8-10.5s86.6-6.4 86.6-92.7-90.6-87.9-90.6-87.9h-199V361c-74.1-21.5-125.2-67.1-125.2-119.9zm225.1 38.3v-55.6c57.8 0 87.8-6.8 87.8 27.3 0 36.5-38.2 28.3-87.8 28.3zm-.9 72.5H365c10.8 0 18.9 11.7 24 19.2-16.1 1.9-33 2.8-50.6 2.9v-22.1z"/></svg>

<div class="datatables html-widget html-fill-item-overflow-hidden html-fill-item" id="htmlwidget-5bb261e9d712e0101e57" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-5bb261e9d712e0101e57">{"x":{"filter":"none","vertical":false,"caption":"<caption>Table 1: Santa's data<\/caption>","data":[["1","2","3","4","5","6","7","8","9","10","11","12","13","14","15","16","17","18","19","20","21","22","23","24","25","26","27","28","29","30","31","32","33","34","35","36","37","38","39","40","41","42","43","44","45","46","47","48","49","50","51","52","53","54","55","56","57","58","59","60","61","62","63","64","65","66","67","68","69","70","71","72","73","74","75","76","77","78","79","80","81","82","83","84","85","86","87","88","89","90","91","92","93","94","95","96","97","98","99","100","101","102","103","104","105","106","107","108","109","110","111","112","113","114","115","116","117","118","119","120","121","122","123","124","125","126","127","128","129","130","131","132","133","134","135","136","137","138","139","140","141","142","143","144","145","146","147","148","149","150","151","152","153","154","155","156","157","158","159","160","161","162","163","164","165","166","167","168","169","170","171","172","173","174","175","176","177","178","179","180","181","182","183","184","185","186","187","188","189","190","191","192","193","194","195","196","197","198","199","200","201","202","203","204","205","206","207","208","209","210","211","212","213","214","215","216","217","218","219","220","221","222","223","224","225","226","227","228","229","230","231","232","233","234","235","236","237","238","239","240","241","242","243","244","245","246","247","248","249","250","251","252","253","254","255","256","257","258","259","260","261","262","263","264","265","266","267","268","269","270","271","272","273","274","275","276","277","278","279","280","281","282","283","284","285","286","287","288","289","290","291","292","293","294","295","296","297","298","299","300","301","302","303","304","305","306","307","308","309","310","311","312","313","314","315","316","317","318","319","320","321","322","323","324","325","326","327","328","329","330","331","332","333","334","335","336","337","338","339","340","341","342","343","344","345","346","347","348","349","350","351","352","353","354","355","356","357","358","359","360","361","362","363","364","365","366","367","368","369","370","371","372","373","374","375","376","377","378","379","380","381","382","383","384","385","386","387","388","389","390","391","392","393","394","395","396","397","398","399","400"],["Fankle the Determined","Amber the Cuddle","Snorklum the Content","Henri the Biddible","Ainsley the Eigen vector","Funnelcup the Iron maiden fan","Ramsey the Surprised","Bindlestiff the Surprised","Lardy the Strong","Theo the Small","Alexis the Cute","Per the Egalitarian","Nergal the Lollygag","Hughy the Content","Ramsey the Partial derivative","Flo the Sangoma","Flumin the Nostril-checker","Nicko the Forgetful","Tulip the Hincklepump","Nicko the Nostril-checker","Cleo the Dextrous","Quo the Dextrous","Tinsel the Pointless dancer","Petr the Puddle jumper","Juniper the Tall","Jezebel the Determined","Quo the Vagarious","Alexis the Mudlark","Amulet the Hincklepump","Geeling the Puddle jumper","Bumfissue the Dotish","Vanessa the Visible","Bumbo the Partial derivative","Vanessa the Hipster","Charlie the Mischievous","Edwin the Kind","Evra the Jubulant","Arlo the Nondescript","Iwobi the Lollygag","Nicko the Wrapper","Juniper the Biddible","Wickham the Xylopolist","Geeling the Mischievous","Ramsey the Neurotic","Juniper the Statistical","Oxter the Knee-scratcher","Bardy the Agreeable","Amber the Nondescript","Jongle the Determined","Liv the Carpenter","Daisy the Fork-lift truck","Pooter the Fairy disguised as an elf","Buttercup the Woodchopper","Merkin the Dwaal","Ogdoad the Small","Rand the Invisible","Tibble the Delighted","Dojan the Conscious","Saed the Gregarious","Wickham the Innocuous","Ozzy the Eigen vector","Edward the Partial derivative","Juniper the Fairy disguised as an elf","Jongle the Partial derivative","Ramsey the Truculent","Petr the Knee-scratcher","Selkie the Conscious","Bellerin the Xylopolist","Iwobi the Jumentous","Bardfast the Nepharious","Vidiot the Pinguid","Liv the Kind","Condrick the Sangoma","Liv the Musical","Charlie the Dextrous","Ozzy the Agreeable","Evra the Eigen vector","Rob the Cute","Erwin the Forgetful","Flimminiflam the Reindeer feeder","Dojan the Xylopolist","Fankle the Invisible","Fankle the Knee-scratcher","Liv the Nepharious","Ug the Cuddle","Skelf the Kind","Vicki the Visible","Fipple the Chopwooder","Tibble the Tidy","Nergal the Superbious","Amber the Nepharious","Flo the Kind","Fipple the Potato carver","Xeb the Muppet","Frimpong the Woodchopper","Milton the Pointless dancer","Liv the Arm measurer","Zorro the Chopwooder","Belphegor the Pointless dancer","Xeb the Tedious","Bindlestiff the Busy","Condrick the Neurotic","Merkin the Hippocampus","Ogdoad the Crank","Famulus the Biddible","Potomous the Jubulant","Evra the Neurotic","Rob the Extroverted","Jezebel the Potato carver","Roediger the Visionary","Dani the Nostril-checker","Dani the Knee-scratcher","Liv the Mid-term assessment","Amber the Wizzard","Vidiot the Statistical","Florence the Tidy","Jinjijinjinjan the Quiet","Ainsley the Jumentous","Charlie the Fork-lift truck","Lardy the Nostril-checker","Roediger the Nostril-checker","Balcock the Conscientious","Vanessa the Xylopolist","Zoe the Lumple-mumple","Cleo the Joyous","Roediger the Truculent","Alan the Muppet","Petr the Lumple-mumple","Jingle the Puddle jumper","Zoe the Vagarious","Liv the Partial derivative","Flimminiflam the Dotish","Alan the Jumentous","Cleo the Innocuous","Tinsel the Witch","Bardfast the Fork-lift truck","Ramsey the Famulus","Pooter the Quiet","Meggie the Sangoma","Flo the Chopwooder","Pongo the Delighted","Tinsel the Nostril-checker","Dojan the Mudlark","Ramsey the Innocuous","Joz the Sangoma","Zorro the Delighted","Juniper the Musical","Vicki the Invisible","Zoe the Kind","Jojo the Statistical","Hughy the Jubulant","Belphegor the Content","Juniper the Innocuous","Dreary the Cuddle","Ramsey the Woodchopper","Francis the Iron maiden fan","Belphegor the Jubulant","Henri the Xylopolist","Alice the Content","Mustafi the Strong","Bindlestiff the Bashful","Evie the Fugacious","Fifi the Xylopolist","Wickham the Chopwooder","Edwin the Visible","Jongle the Tall","Oxter the Truculent","Rob the Invisible","Amber the Fugacious","Bellerin the Panurgic","Pongo the Bashful","Nit the Jumentous","Erwin the Hippocampus","Cog the Mudlark","Vidiot the Nondescript","Edwin the Jumentous","Tinsel the Invisible","Roediger the Superbious","Alan the Defensive midfielder","Erwin the Fork-lift truck","Edward the Extroverted","Famulus the Wrapper","Jangle the Unconscious","Erwin the Xylopolist","Dreary the Invisible","Oxter the Pinguid","Balcock the Dwaal","Noothbrush the Musical","Iwobi the Bashful","Skelf the Knee-scratcher","Fankle the Strong","Nit the Panurgic","Erwin the Musical","Noothbrush the Chin-tickler","Ramsey the Superbious","Edward the Egalitarian","Bruce the Vagarious","Rand the Pinguid","Frimpong the Mudlark","Mustafi the Argute","Jangle the Pickler","Paice the Unconscious","Bruce the Wrapper","Dreary the Fergal-fargel","Erwin the Unconscious","Flumin the Lollygag","Potomous the Visionary","Lardy the Conscious","Amber the Wrapper","Vidiot the Sangoma","Francis the Partial derivative","Milton the Determined","Edward the Mudlark","Liv the Cuddle","Buttercup the Xylopolist","Moggie the Bashful","Oxter the Eigen vector","Pooter the Introverted","Vicki the Reindeer feeder","Lardy the Mudlark","Nergal the Arm measurer","Nergal the Visionary","Skelf the Fugacious","Snorklum the Determined","Gillan the Biddible","Henri the Famulus","Vicki the Unconscious","Joz the Neurotic","Milton the Muppet","Selkie the Neurotic","Francis the Sangoma","Vicki the Biddible","Rand the Chin-tickler","Balcock the Spatula","Hughy the Visible","Farty the Ulotrichous","Tinsel the Mid-term assessment","Potomous the Strong","Tinsel the Superbious","Nicko the Flatulent","Tulip the Witch","Flumin the Cuddle","Saed the Mid-term assessment","Em the Egalitarian","Amulet the Egalitarian","Bardy the Mid-term assessment","Em the Ulotrichous","Per the Wrapper","Florence the Cute","Flumin the Dotish","Jinjijinjinjan the Mid-term assessment","Bardfast the Dextrous","Per the Woodchopper","Theo the Conscious","Ozzy the Jumentous","Oxter the Crank","Condrick the Nostril-checker","Petr the Strong","Charlie the Forgetful","Bindlestiff the Visionary","Fipple the Hippocampus","Noggin the Nostril-checker","Charlie the Ulotrichous","Edward the Puddle jumper","Daisy the Visible","Vanessa the Visionary","Amulet the Dextrous","Vidiot the Innocuous","Ogdoad the Egalitarian","Janice the Content","Iwobi the Muppet","Juniper the Impossible","Vidiot the Joyous","Pooter the Pointless dancer","Zoe the Sangoma","Ainsley the Industrious","Zorro the Defensive midfielder","Hughy the Tidy","Bumbo the Elf","Aaron the Delighted","Arlo the Cute","Edward the Lollygag","Sisifus the Rubiginous","Zoe the Determined","Bruce the Nepharious","Rand the Extroverted","Compote the Xylopolist","Ogdoad the Xylopolist","Snorklum the Busy","Petr the Wrapper","Alan the Argute","Edwin the Partial derivative","Condrick the Content","Liv the Forgetful","Edward the Unconscious","Jizzlobber the Forgetful","Mustafi the Muppet","Jingle the Forgetful","Evie the Arm measurer","Arlo the Xylopolist","Skelf the Extroverted","Sisifus the Dextrous","Bumbo the Muppet","Jingle the Jumentous","Darren the Invisible","Ogdoad the Eigen vector","Gillan the Quiet","Jingle the Eigen vector","Buttercup the Nelipot","Fifi the Fugacious","Ug the Partial derivative","Nicko the Extroverted","Noggin the Tedious","Dojan the Determined","Rik the Egalitarian","Edward the Invisible","Janice the Carpenter","Iwobi the Statistical","Petr the Partial derivative","Tinsel the Busy","Nergal the Conscious","Flumin the Tedious","Juniper the Festive","Rik the Truculent","Flo the Pickler","Janice the Flatulent","Bumfissue the Famulus","Quo the Nostril-checker","Joz the Tedious","Saed the Carpenter","Ogdoad the Lumple-mumple","Daisy the Rubiginous","Oxter the Chopwooder","Theo the Pointless dancer","Nicko the Lollygag","Liv the Innocuous","Gillan the Truculent","Pongo the Carpenter","Ramsey the Musical","Oxter the Pointless dancer","Bardfast the Crank","Bardfast the Carpenter","Hadley the Musical","Snorklum the Dotish","Erwin the Dwaal","Milton the Jubulant","Aaron the Musical","Jojo the Dwaal","Condrick the Joyous","Evie the Chin-tickler","Nergal the Xylopolist","Meggie the Extroverted","Tarantino the Knee-scratcher","Jangle the Arm measurer","Fipple the Truculent","Milton the Fairy disguised as an elf","Erwin the Knee-scratcher","Bindlestiff the Statistical","Balcock the Arm measurer","Flo the Invisible","Edwin the Witch","Willock the Xylopolist","Farty the Invisible","Amber the Content","Arlo the Visible","Jingle the Dextrous","Selkie the Gregarious","Geeling the Musical","Fipple the Small","Compote the Invisible","Jangle the Biddible","Charlie the Conscious","Noggin the Biddible","Xeb the Determined","Bardfast the Knee-scratcher","Petr the Musical","Alexis the Rapid","Milton the Industrious","Hadley the Vagarious","Vidiot the Industrious","Edward the Cuddle","Charlie the Witch","Meggie the Gregarious","Zorro the Rapid","Daisy the Xylopolist","Ozzy the Crank","Bumbo the Pinguid","Bumbo the Conscientious","Noggin the Hincklepump","Ug the Content","Em the Defensive midfielder","Ogdoad the Statistical","Dani the Dotish","Cleo the Defensive midfielder","Alexis the Spatula","Potomous the Hungry","Nicko the Determined","Wibbleflip the Neurotic","Fankle the Dotish","Jinjijinjinjan the Nepharious"],["Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine"],["Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered"]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>id<\/th>\n      <th>treat<\/th>\n      <th>delivered<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"dom":"tp","columnDefs":[{"className":"dt-center","targets":[1,2,3]},{"orderable":false,"targets":0}],"pageLength":10,"order":[],"autoWidth":false,"orderClasses":false},"selection":{"mode":"multiple","selected":null,"target":"row","selectable":null}},"evals":[],"jsHooks":[]}</script>

---
class: inverse
background-image: url("media/as_snowy_trees_126530339.jpg")
background-size: cover
#  If it were a standard linear model

.center[.eq_lrge[.white[
$$
`\begin{aligned}
\text{delivered}_{i} &= \hat{b}_{0} + \hat{b}_{1}\text{treat}_{i} + e_{i}
\end{aligned}`
$$
]]]

</br>

.pull-left[
Assumption of linearity

* Violated with categorical outcomes
* We can’t fit this model
]

.pull-right[.whitebox9[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Group </th>
   <th style="text-align:center;"> Treat </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Christmas pudding </td>
   <td style="text-align:center;"> 0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Mulled wine </td>
   <td style="text-align:center;"> 1 </td>
  </tr>
</tbody>
</table>
]]

---
class: inverse
background-image: url("media/as_blu_globe_391811093.jpg")
background-size: cover
#  But it’s not a standard linear model

.pull-right[
We predict the probability of the outcome occurring

.eq_lrge[.white[
$$
`\begin{aligned}
P(Y) &= \frac{1}{1+ e^{-(\hat{b}_0 + \hat{b}_1X_i+e_i)}} \\
P(\text{delivery}) &= \frac{1}{1+ e^{-(\hat{b}_0 + \hat{b}_1\text{treat}_i+e_i)}} \\
\end{aligned}`
$$
]]

Note the equation contains the linear model
]

---
class: inverse
background-image: url("media/as_snowy_trees_126530339.jpg")
background-size: cover

#  Or …

.eq_lrge[.white[
$$
`\begin{aligned}
\ln\bigg(\frac{P(Y)}{1- P(Y)}\bigg) &= \hat{b}_0 + \hat{b}_1X_{i} + e_i \\
\ln\bigg(\frac{P(\text{delivery})}{1- P(\text{delivery})}\bigg) &= \hat{b}_0 + \hat{b}_1\text{treat}_{i} + e_i \\
\end{aligned}`
$$
]]

.pull-left[.blubox[
### Outcome

* We predict the log odds of the outcome occurring
]]

.pull-right[.blubox[
### `$\hat{b}_0$` and `$\hat{b}_1$`

* Note the the logistic regression equation is the same as the linear model, except we predict the log odds of the outcome

* `$\hat{b}_1$` is the change in the log odds of the outcome associated with a unit change in the predictor
]]

---
class: inverse
background-image: url("media/as_red_santa_globe_45715114.jpg")
background-size: cover

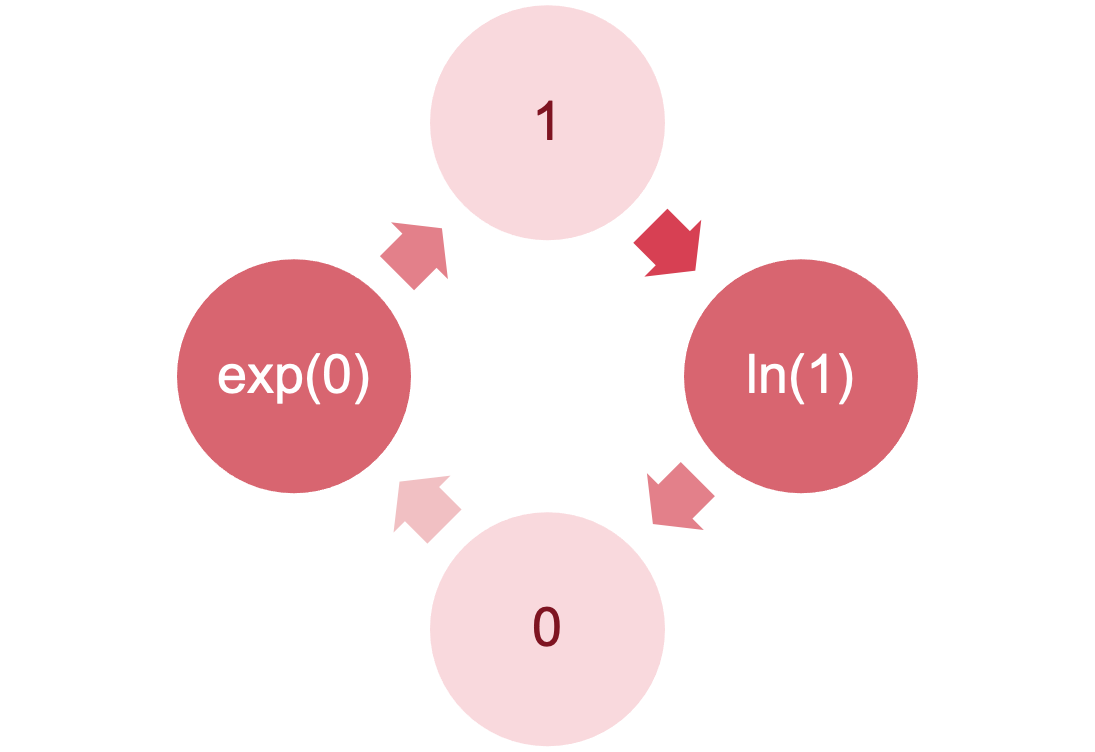

#  Logs and exponents

.pull-right[

![](media/log_exp.png)

]

---
background-image: url("media/as_snowman_wave_303329070.jpg")
background-size: cover

#  The odds ratio: exp(*b*)

.center[.eq_lrge[
$$
`\begin{aligned}
\exp(b) = \frac{\text{odds after a unit change in the predictor}}{\text{original odds}}
\end{aligned}`
$$
]]

### *b*<sub>0</sub>

* Log odds of outcome when the predictors are 0

* Easier to interpret exp(*b*<sub>0</sub>), the odds of outcome when predictor is 0

### *b*<sub>1</sub>

* Change in the log odds of outcome associated with a unit change in the predictor

* Easier to interpret exp (*b*<sub>1</sub>), the odds ratio associated with a unit change in the predictor

* OR > 1: Predictor `$\uparrow$`, probability of outcome occurring `$\uparrow$`

* OR < 1: Predictor `$\uparrow$`, probability of outcome occurring `$\downarrow$`

---
class: inverse
background-image: url("media/as_santa_vortex_94489562.jpg")
background-size: cover
exclude: ![:isSV]
---
class: inverse
background-image: url("media/as_santa_vortex_94489562.jpg")
background-size: cover

#  Classification table

.pull-left[.whitebox9[
<table>
 <thead>
  <tr>
   <th style="text-align:left;">   </th>
   <th style="text-align:center;"> Delivered </th>
   <th style="text-align:center;"> Not delivered </th>
   <th style="text-align:center;"> Total </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Christmas pudding </td>
   <td style="text-align:center;"> 150 </td>
   <td style="text-align:center;"> 28 </td>
   <td style="text-align:center;color: #912D25 !important;"> 178 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Mulled wine </td>
   <td style="text-align:center;"> 100 </td>
   <td style="text-align:center;"> 122 </td>
   <td style="text-align:center;color: #912D25 !important;"> 222 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #912D25 !important;"> Total </td>
   <td style="text-align:center;color: #912D25 !important;"> 250 </td>
   <td style="text-align:center;color: #912D25 !important;"> 150 </td>
   <td style="text-align:center;color: #912D25 !important;color: #912D25 !important;"> 400 </td>
  </tr>
</tbody>
</table>
]]

.pull-right[.whitebox9[
$$
`\begin{aligned}
\text{odds}_\text{delivery} &= \frac{\text{Number delivered}}{\text{Number not delivered}} \\
&= \frac{250}{150} \\
&= 1.67
\end{aligned}`
$$
]]
---
class: inverse
background-image: url("media/as_gingerbread_229820523.jpg")
background-size: cover
exclude: ![:isSV]

---
class: inverse
background-image: url("media/as_gingerbread_229820523.jpg")
background-size: cover

#  The odds ratio

.whitebox9[
$$
`\begin{aligned}
\text{odds}_\text{delivered after pudding} &= \frac{\text{Number delivered after pudding}}{\text{Number not delivered after pudding}} \\
&= \frac{150}{28} \\
&= 5.36
\end{aligned}`
$$
]

</br>

.whitebox9[
$$
`\begin{aligned}
\text{odds}_\text{delivered after wine} &= \frac{\text{Number delivered after wine}}{\text{Number not delivered after wine}} \\
&= \frac{100}{122} \\
&= 0.82
\end{aligned}`
$$
]

---
class: inverse
background-image: url("media/as_gingerbread_229820523.jpg")
background-size: cover

#  The odds ratio

.whitebox9[.eq_lrge[
$$
`\begin{aligned}
\text{odds ratio} &= \frac{\text{odds}_\text{delivered after wine}}{\text{odds}_\text{delivered after pudding}} \\
&= \frac{0.82}{5.36} \\
&= 0.15
\end{aligned}`
$$
]]

---
class: inverse
background-image: url("media/as_gingerbread_229820523.jpg")
background-size: cover

#  The odds ratio

.whitebox9[.eq_lrge[
$$
`\begin{aligned}
\text{odds ratio} &= \frac{\text{odds}_\text{delivered after pudding}}{\text{odds}_\text{delivered after wine}} \\
&= \frac{5.36}{0.82} \\
&= 6.54
\end{aligned}`
$$
]]

---
class: inverse
background-image: url("media/as_santa_over_village_71686107.jpg")
background-size: cover
exclude: ![:isSV]

---
class: inverse
background-image: url("media/as_santa_over_village_71686107.jpg")
background-size: cover

#  Fitting the model

```r
santa_mod <- glm(delivered ~ treat, data = santa_tib, family = binomial())

santa_mod |>
  broom::tidy(conf.int = TRUE) |>
  knitr::kable(digits = 2, align = 'lcccccc')
```

---
class: inverse
background-image: url("media/as_santa_over_village_71686107.jpg")
background-size: cover

# Odds ratios

```r
santa_mod |>
  broom::tidy(conf.int = TRUE, `exponentiate = TRUE`) |>
  knitr::kable(digits = 2, align = 'lcccccc')
```

---
background-image: none
background-color: #000000
class: no-scribble
exclude: ![:isSV]

---
class: inverse
background-image: url("media/as_blu_house_93514381.jpg")
background-size: cover

# A festive example

.pull-right[

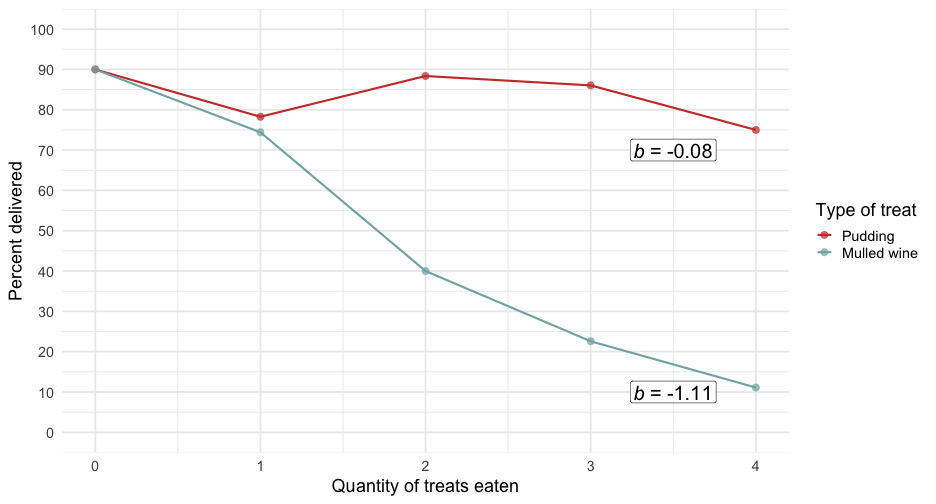

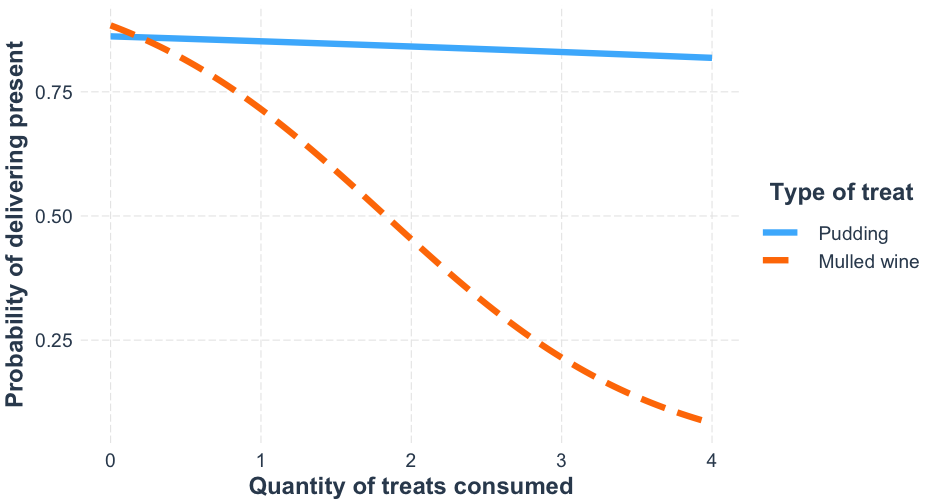

Santa Claus wanted to test the effects of different types of treats and the quantity of them consumed on whether presents got delivered:

* Predictors

+ **treat**: Christmas pudding, Mulled wine

  + **quantity**: 0, 1, 2, 3, or 4

* Outcome

+ **delivered**: Did the presents get delivered?
]

---
class: inverse
background-image: url("media/as_santa_moon_36326866.jpg")
background-size: cover

<div class="datatables html-widget html-fill-item-overflow-hidden html-fill-item" id="htmlwidget-59de6989d14964b5183b" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-59de6989d14964b5183b">{"x":{"filter":"none","vertical":false,"caption":"<caption>Table 1: Santa's data<\/caption>","data":[["1","2","3","4","5","6","7","8","9","10","11","12","13","14","15","16","17","18","19","20","21","22","23","24","25","26","27","28","29","30","31","32","33","34","35","36","37","38","39","40","41","42","43","44","45","46","47","48","49","50","51","52","53","54","55","56","57","58","59","60","61","62","63","64","65","66","67","68","69","70","71","72","73","74","75","76","77","78","79","80","81","82","83","84","85","86","87","88","89","90","91","92","93","94","95","96","97","98","99","100","101","102","103","104","105","106","107","108","109","110","111","112","113","114","115","116","117","118","119","120","121","122","123","124","125","126","127","128","129","130","131","132","133","134","135","136","137","138","139","140","141","142","143","144","145","146","147","148","149","150","151","152","153","154","155","156","157","158","159","160","161","162","163","164","165","166","167","168","169","170","171","172","173","174","175","176","177","178","179","180","181","182","183","184","185","186","187","188","189","190","191","192","193","194","195","196","197","198","199","200","201","202","203","204","205","206","207","208","209","210","211","212","213","214","215","216","217","218","219","220","221","222","223","224","225","226","227","228","229","230","231","232","233","234","235","236","237","238","239","240","241","242","243","244","245","246","247","248","249","250","251","252","253","254","255","256","257","258","259","260","261","262","263","264","265","266","267","268","269","270","271","272","273","274","275","276","277","278","279","280","281","282","283","284","285","286","287","288","289","290","291","292","293","294","295","296","297","298","299","300","301","302","303","304","305","306","307","308","309","310","311","312","313","314","315","316","317","318","319","320","321","322","323","324","325","326","327","328","329","330","331","332","333","334","335","336","337","338","339","340","341","342","343","344","345","346","347","348","349","350","351","352","353","354","355","356","357","358","359","360","361","362","363","364","365","366","367","368","369","370","371","372","373","374","375","376","377","378","379","380","381","382","383","384","385","386","387","388","389","390","391","392","393","394","395","396","397","398","399","400"],["Fankle the Determined","Amber the Cuddle","Snorklum the Content","Henri the Biddible","Ainsley the Eigen vector","Funnelcup the Iron maiden fan","Ramsey the Surprised","Bindlestiff the Surprised","Lardy the Strong","Theo the Small","Alexis the Cute","Per the Egalitarian","Nergal the Lollygag","Hughy the Content","Ramsey the Partial derivative","Flo the Sangoma","Flumin the Nostril-checker","Nicko the Forgetful","Tulip the Hincklepump","Nicko the Nostril-checker","Cleo the Dextrous","Quo the Dextrous","Tinsel the Pointless dancer","Petr the Puddle jumper","Juniper the Tall","Jezebel the Determined","Quo the Vagarious","Alexis the Mudlark","Amulet the Hincklepump","Geeling the Puddle jumper","Bumfissue the Dotish","Vanessa the Visible","Bumbo the Partial derivative","Vanessa the Hipster","Charlie the Mischievous","Edwin the Kind","Evra the Jubulant","Arlo the Nondescript","Iwobi the Lollygag","Nicko the Wrapper","Juniper the Biddible","Wickham the Xylopolist","Geeling the Mischievous","Ramsey the Neurotic","Juniper the Statistical","Oxter the Knee-scratcher","Bardy the Agreeable","Amber the Nondescript","Jongle the Determined","Liv the Carpenter","Daisy the Fork-lift truck","Pooter the Fairy disguised as an elf","Buttercup the Woodchopper","Merkin the Dwaal","Ogdoad the Small","Rand the Invisible","Tibble the Delighted","Dojan the Conscious","Saed the Gregarious","Wickham the Innocuous","Ozzy the Eigen vector","Edward the Partial derivative","Juniper the Fairy disguised as an elf","Jongle the Partial derivative","Ramsey the Truculent","Petr the Knee-scratcher","Selkie the Conscious","Bellerin the Xylopolist","Iwobi the Jumentous","Bardfast the Nepharious","Vidiot the Pinguid","Liv the Kind","Condrick the Sangoma","Liv the Musical","Charlie the Dextrous","Ozzy the Agreeable","Evra the Eigen vector","Rob the Cute","Erwin the Forgetful","Flimminiflam the Reindeer feeder","Dojan the Xylopolist","Fankle the Invisible","Fankle the Knee-scratcher","Liv the Nepharious","Ug the Cuddle","Skelf the Kind","Vicki the Visible","Fipple the Chopwooder","Tibble the Tidy","Nergal the Superbious","Amber the Nepharious","Flo the Kind","Fipple the Potato carver","Xeb the Muppet","Frimpong the Woodchopper","Milton the Pointless dancer","Liv the Arm measurer","Zorro the Chopwooder","Belphegor the Pointless dancer","Xeb the Tedious","Bindlestiff the Busy","Condrick the Neurotic","Merkin the Hippocampus","Ogdoad the Crank","Famulus the Biddible","Potomous the Jubulant","Evra the Neurotic","Rob the Extroverted","Jezebel the Potato carver","Roediger the Visionary","Dani the Nostril-checker","Dani the Knee-scratcher","Liv the Mid-term assessment","Amber the Wizzard","Vidiot the Statistical","Florence the Tidy","Jinjijinjinjan the Quiet","Ainsley the Jumentous","Charlie the Fork-lift truck","Lardy the Nostril-checker","Roediger the Nostril-checker","Balcock the Conscientious","Vanessa the Xylopolist","Zoe the Lumple-mumple","Cleo the Joyous","Roediger the Truculent","Alan the Muppet","Petr the Lumple-mumple","Jingle the Puddle jumper","Zoe the Vagarious","Liv the Partial derivative","Flimminiflam the Dotish","Alan the Jumentous","Cleo the Innocuous","Tinsel the Witch","Bardfast the Fork-lift truck","Ramsey the Famulus","Pooter the Quiet","Meggie the Sangoma","Flo the Chopwooder","Pongo the Delighted","Tinsel the Nostril-checker","Dojan the Mudlark","Ramsey the Innocuous","Joz the Sangoma","Zorro the Delighted","Juniper the Musical","Vicki the Invisible","Zoe the Kind","Jojo the Statistical","Hughy the Jubulant","Belphegor the Content","Juniper the Innocuous","Dreary the Cuddle","Ramsey the Woodchopper","Francis the Iron maiden fan","Belphegor the Jubulant","Henri the Xylopolist","Alice the Content","Mustafi the Strong","Bindlestiff the Bashful","Evie the Fugacious","Fifi the Xylopolist","Wickham the Chopwooder","Edwin the Visible","Jongle the Tall","Oxter the Truculent","Rob the Invisible","Amber the Fugacious","Bellerin the Panurgic","Pongo the Bashful","Nit the Jumentous","Erwin the Hippocampus","Cog the Mudlark","Vidiot the Nondescript","Edwin the Jumentous","Tinsel the Invisible","Roediger the Superbious","Alan the Defensive midfielder","Erwin the Fork-lift truck","Edward the Extroverted","Famulus the Wrapper","Jangle the Unconscious","Erwin the Xylopolist","Dreary the Invisible","Oxter the Pinguid","Balcock the Dwaal","Noothbrush the Musical","Iwobi the Bashful","Skelf the Knee-scratcher","Fankle the Strong","Nit the Panurgic","Erwin the Musical","Noothbrush the Chin-tickler","Ramsey the Superbious","Edward the Egalitarian","Bruce the Vagarious","Rand the Pinguid","Frimpong the Mudlark","Mustafi the Argute","Jangle the Pickler","Paice the Unconscious","Bruce the Wrapper","Dreary the Fergal-fargel","Erwin the Unconscious","Flumin the Lollygag","Potomous the Visionary","Lardy the Conscious","Amber the Wrapper","Vidiot the Sangoma","Francis the Partial derivative","Milton the Determined","Edward the Mudlark","Liv the Cuddle","Buttercup the Xylopolist","Moggie the Bashful","Oxter the Eigen vector","Pooter the Introverted","Vicki the Reindeer feeder","Lardy the Mudlark","Nergal the Arm measurer","Nergal the Visionary","Skelf the Fugacious","Snorklum the Determined","Gillan the Biddible","Henri the Famulus","Vicki the Unconscious","Joz the Neurotic","Milton the Muppet","Selkie the Neurotic","Francis the Sangoma","Vicki the Biddible","Rand the Chin-tickler","Balcock the Spatula","Hughy the Visible","Farty the Ulotrichous","Tinsel the Mid-term assessment","Potomous the Strong","Tinsel the Superbious","Nicko the Flatulent","Tulip the Witch","Flumin the Cuddle","Saed the Mid-term assessment","Em the Egalitarian","Amulet the Egalitarian","Bardy the Mid-term assessment","Em the Ulotrichous","Per the Wrapper","Florence the Cute","Flumin the Dotish","Jinjijinjinjan the Mid-term assessment","Bardfast the Dextrous","Per the Woodchopper","Theo the Conscious","Ozzy the Jumentous","Oxter the Crank","Condrick the Nostril-checker","Petr the Strong","Charlie the Forgetful","Bindlestiff the Visionary","Fipple the Hippocampus","Noggin the Nostril-checker","Charlie the Ulotrichous","Edward the Puddle jumper","Daisy the Visible","Vanessa the Visionary","Amulet the Dextrous","Vidiot the Innocuous","Ogdoad the Egalitarian","Janice the Content","Iwobi the Muppet","Juniper the Impossible","Vidiot the Joyous","Pooter the Pointless dancer","Zoe the Sangoma","Ainsley the Industrious","Zorro the Defensive midfielder","Hughy the Tidy","Bumbo the Elf","Aaron the Delighted","Arlo the Cute","Edward the Lollygag","Sisifus the Rubiginous","Zoe the Determined","Bruce the Nepharious","Rand the Extroverted","Compote the Xylopolist","Ogdoad the Xylopolist","Snorklum the Busy","Petr the Wrapper","Alan the Argute","Edwin the Partial derivative","Condrick the Content","Liv the Forgetful","Edward the Unconscious","Jizzlobber the Forgetful","Mustafi the Muppet","Jingle the Forgetful","Evie the Arm measurer","Arlo the Xylopolist","Skelf the Extroverted","Sisifus the Dextrous","Bumbo the Muppet","Jingle the Jumentous","Darren the Invisible","Ogdoad the Eigen vector","Gillan the Quiet","Jingle the Eigen vector","Buttercup the Nelipot","Fifi the Fugacious","Ug the Partial derivative","Nicko the Extroverted","Noggin the Tedious","Dojan the Determined","Rik the Egalitarian","Edward the Invisible","Janice the Carpenter","Iwobi the Statistical","Petr the Partial derivative","Tinsel the Busy","Nergal the Conscious","Flumin the Tedious","Juniper the Festive","Rik the Truculent","Flo the Pickler","Janice the Flatulent","Bumfissue the Famulus","Quo the Nostril-checker","Joz the Tedious","Saed the Carpenter","Ogdoad the Lumple-mumple","Daisy the Rubiginous","Oxter the Chopwooder","Theo the Pointless dancer","Nicko the Lollygag","Liv the Innocuous","Gillan the Truculent","Pongo the Carpenter","Ramsey the Musical","Oxter the Pointless dancer","Bardfast the Crank","Bardfast the Carpenter","Hadley the Musical","Snorklum the Dotish","Erwin the Dwaal","Milton the Jubulant","Aaron the Musical","Jojo the Dwaal","Condrick the Joyous","Evie the Chin-tickler","Nergal the Xylopolist","Meggie the Extroverted","Tarantino the Knee-scratcher","Jangle the Arm measurer","Fipple the Truculent","Milton the Fairy disguised as an elf","Erwin the Knee-scratcher","Bindlestiff the Statistical","Balcock the Arm measurer","Flo the Invisible","Edwin the Witch","Willock the Xylopolist","Farty the Invisible","Amber the Content","Arlo the Visible","Jingle the Dextrous","Selkie the Gregarious","Geeling the Musical","Fipple the Small","Compote the Invisible","Jangle the Biddible","Charlie the Conscious","Noggin the Biddible","Xeb the Determined","Bardfast the Knee-scratcher","Petr the Musical","Alexis the Rapid","Milton the Industrious","Hadley the Vagarious","Vidiot the Industrious","Edward the Cuddle","Charlie the Witch","Meggie the Gregarious","Zorro the Rapid","Daisy the Xylopolist","Ozzy the Crank","Bumbo the Pinguid","Bumbo the Conscientious","Noggin the Hincklepump","Ug the Content","Em the Defensive midfielder","Ogdoad the Statistical","Dani the Dotish","Cleo the Defensive midfielder","Alexis the Spatula","Potomous the Hungry","Nicko the Determined","Wibbleflip the Neurotic","Fankle the Dotish","Jinjijinjinjan the Nepharious"],[4,3,3,0,0,1,2,3,1,1,1,3,3,1,3,2,1,1,2,3,1,1,0,2,3,2,2,4,3,1,2,1,4,1,3,2,4,0,1,2,3,1,3,2,2,3,1,1,2,3,0,1,4,0,2,3,4,0,1,3,4,2,1,1,4,3,2,1,2,2,3,4,1,3,2,2,2,3,2,2,2,3,3,0,1,2,1,0,0,2,0,4,4,1,0,3,1,4,4,1,2,1,3,3,0,2,4,2,4,3,0,2,1,3,2,2,0,1,3,1,3,3,2,0,4,3,2,3,2,3,1,3,3,2,4,1,3,1,3,3,3,0,2,2,3,4,1,4,0,2,3,3,2,4,3,3,0,2,1,2,1,4,0,2,2,0,4,0,3,2,3,3,1,3,4,4,0,1,2,3,1,3,1,2,3,0,1,4,1,4,2,3,3,2,1,0,3,2,1,2,2,3,3,2,3,2,3,2,0,0,2,4,3,0,3,1,3,2,1,3,0,4,4,1,3,2,3,3,2,0,1,1,2,0,3,1,3,2,2,2,0,1,1,1,4,3,0,3,2,1,2,4,4,3,3,3,2,3,1,0,2,2,2,0,4,3,1,3,1,4,2,1,3,2,1,3,3,0,1,4,3,2,3,4,3,1,2,1,1,1,0,3,2,0,2,1,0,3,3,4,1,1,1,0,3,1,0,3,4,0,2,0,1,1,0,1,2,3,4,0,3,2,0,1,2,3,2,2,4,2,0,2,1,1,1,1,1,3,2,0,2,2,1,1,2,2,3,0,2,3,0,0,1,2,1,3,0,1,3,1,3,3,2,2,4,2,2,0,0,1,0,3,0,3,2,0,3,3,1,3,3,0,3,4,2,2,0,2,2,1,2,4,2,2,2,3,1,2,0,3],["Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Pudding","Mulled wine","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Pudding","Mulled wine","Pudding","Mulled wine","Pudding","Mulled wine"],["Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Not delivered","Not delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Not delivered","Delivered","Not delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Not delivered","Delivered","Delivered","Delivered","Delivered"]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>id<\/th>\n      <th>quantity<\/th>\n      <th>treat<\/th>\n      <th>delivered<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"dom":"tp","columnDefs":[{"className":"dt-center","targets":[1,2,3]},{"orderable":false,"targets":0}],"pageLength":10,"order":[],"autoWidth":false,"orderClasses":false},"selection":{"mode":"multiple","selected":null,"target":"row","selectable":null}},"evals":[],"jsHooks":[]}</script>

---
class: inverse
background-image: url("media/as_red_snowflake_228468210.jpg")
background-size: cover

# Extending the model

.center[.eq_med[.white[
$$
`\begin{aligned}
\text{delivered}_{i} &= \hat{b}_{0} + \hat{b}_{1}\text{treat}_{i} + \hat{b}_{2}\text{quantity}_{i} + \hat{b}_{3}\text{treat} \times \text{quantity}_{i} + e_{i}
\end{aligned}`
$$
]]]

</br>

.eq_med[.white[
$$
`\begin{aligned}
P(\text{delivery}) &= \frac{1}{1+e^{-(\hat{b}_0 + \hat{b}_1\text{treat}_{i} + \hat{b}_2\text{quantity}_{i} + \hat{b}_3\text{treat} \times \text{quantity}_{i} + e_i)}} \\
\end{aligned}`
$$
]]

.eq_med[.white[
$$
`\begin{aligned}
\ln\bigg(\frac{P(\text{delivery})}{1- P(\text{delivery})}\bigg) &= \hat{b}_0 + \hat{b}_1\text{treat}_{i} + \hat{b}_2\text{quantity}_{i} + \hat{b}_3\text{treat} \times \text{quantity}_{i} + e_i \\
\end{aligned}`
$$
]]

---
class: inverse
background-image: url("media/as_tree_train_93514522.jpg")
background-size: cover

#  Building the model

.pull-left[

* Forced entry: all variables entered simultaneously.

* Hierarchical: variables entered in blocks.

+ Blocks should be based on past research, or theory being tested.
  + Good method.

* Stepwise: variables entered on the basis of statistical criteria (i.e., Relative contribution to predicting outcome).

+ Should be used only for exploratory analysis.
]

---
class: inverse
background-image: url("media/as_blu_house_93514381.jpg")
background-size: cover

#  Things that can go wrong

.pull-right[
### Things we’ve met before

.eq_med[
* Linearity (of the logit)

* Spherical residuals
  + Independent errors

* Multicollinearity
]

### Unique problems

.eq_med[
* Incomplete information

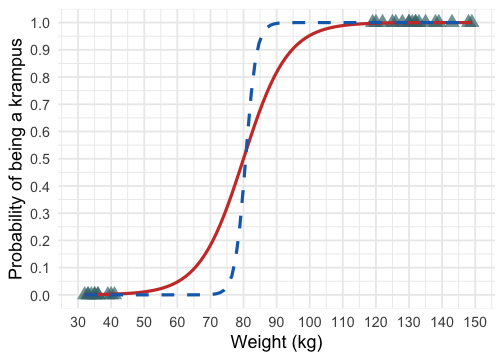

* Complete separation
]
]

---
class: inverse
background-image: url("media/as_santa_moon_37337682.jpg")
background-size: cover

#  Incomplete information

.pull-left[.blubox[
### Empty cells

.eq_lrge[* We don’t know how many presents are delivered after two puddings or not delivered after 5 wines

* Problem quickly escalates with continuous predictors

* Inflates standard errors
]]]

.pull-right[.blubox[

<table>
 <thead>
  <tr>
   <th style="text-align:left;background-color: #15224c !important;font-size: 18px;">   </th>
   <th style="text-align:center;background-color: #15224c !important;font-size: 18px;"> Quantity </th>
   <th style="text-align:center;background-color: #15224c !important;font-size: 18px;"> Delivered </th>
   <th style="text-align:center;background-color: #15224c !important;font-size: 18px;"> Not delivered </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Pudding </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 0 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 27 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Pudding </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 1 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 36 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 10 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Pudding </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 2 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> - </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 5 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Pudding </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 3 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 37 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 6 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Pudding </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 4 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 12 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 4 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Mulled wine </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 0 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 27 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 3 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Mulled wine </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 1 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 32 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 11 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Mulled wine </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 2 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 24 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 36 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Mulled wine </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 3 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 14 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 48 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> Mulled wine </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 4 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> 3 </td>
   <td style="text-align:center;color: white !important;background-color: rgba(32, 21, 34, 0.3) !important;font-size: 18px;"> - </td>
  </tr>
</tbody>
</table>
]]

---
background-image: url("media/as_krampus_374161953.jpg")
background-size: cover

#  Complete separation

When the outcome variable can be perfectly predicted

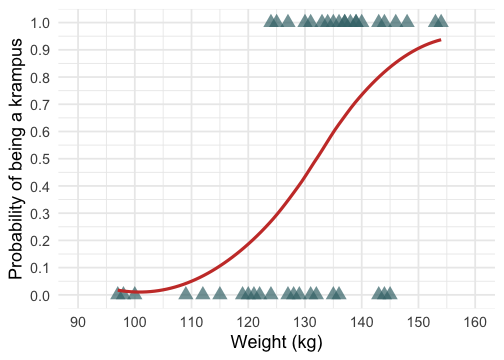

* Predicting whether someone is a krampus based on weight

.pull-left[
### Santa vs. krampus

![](categorical_outcomes_files/figure-html/unnamed-chunk-9-1.png)

]

![:abs 10%, 15%, 60%](media/santa.png)
![:abs 9%, 35%, 60%](media/krampus.png)

.pull-right[
### Elves vs. krampus

![](categorical_outcomes_files/figure-html/unnamed-chunk-10-1.png)

]

![:abs 7%, 60%, 60%](media/elf.jpg)
![:abs 9%, 80%, 60%](media/krampus.png)

---
exclude: ![:isSV]
class: no-scribble

---
class: no-scribble
exclude: ![:isSV]

---
class: inverse
background-image: url("media/as_snowy_trees_white_126530339.jpg")
background-size: cover

# Fitting the model

```r
santa_full_mod <- glm(delivered ~ treat*quantity, data = santa_tib, family = binomial())

santa_full_mod |>
  broom::tidy(conf.int = TRUE) |>
  knitr::kable(digits = 2, align = 'lcccccc')
```

</br>

.blubox[
<table class="table" style="font-size: 28px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;color: #2C5577 !important;"> term </th>
   <th style="text-align:center;color: #2C5577 !important;"> estimate </th>
   <th style="text-align:center;color: #2C5577 !important;"> std.error </th>
   <th style="text-align:center;color: #2C5577 !important;"> statistic </th>
   <th style="text-align:center;color: #2C5577 !important;"> p.value </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.low </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.high </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:center;"> 1.83 </td>
   <td style="text-align:center;"> 0.38 </td>
   <td style="text-align:center;"> 4.80 </td>
   <td style="text-align:center;"> 0.00 </td>
   <td style="text-align:center;"> 1.13 </td>
   <td style="text-align:center;"> 2.63 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #2C5577 !important;"> treatMulled wine </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.20 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.52 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.38 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.70 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -0.83 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 1.22 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> quantity </td>
   <td style="text-align:center;"> -0.08 </td>
   <td style="text-align:center;"> 0.17 </td>
   <td style="text-align:center;"> -0.48 </td>
   <td style="text-align:center;"> 0.63 </td>
   <td style="text-align:center;"> -0.41 </td>
   <td style="text-align:center;"> 0.25 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #2C5577 !important;"> treatMulled wine:quantity </td>
   <td style="text-align:center;color: #2C5577 !important;"> -1.03 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.23 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -4.45 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.00 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -1.49 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -0.58 </td>
  </tr>
</tbody>
</table>
]

---
class: inverse
background-image: url("media/as_snowy_trees_white_126530339.jpg")
background-size: cover

</br>

.pull-left[

```r
santa_tib |>
  filter(treat == "Pudding") |>
  glm(delivered ~ quantity, data = _, family = binomial())
```

.blubox[
<table class="table" style="font-size: 16px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;color: #2C5577 !important;"> term </th>
   <th style="text-align:center;color: #2C5577 !important;"> estimate </th>
   <th style="text-align:center;color: #2C5577 !important;"> statistic </th>
   <th style="text-align:center;color: #2C5577 !important;"> p.value </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.low </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.high </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:center;"> 1.83 </td>
   <td style="text-align:center;"> 4.80 </td>
   <td style="text-align:center;"> 0.00 </td>
   <td style="text-align:center;"> 1.13 </td>
   <td style="text-align:center;"> 2.63 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #2C5577 !important;"> quantity </td>
   <td style="text-align:center;color: #2C5577 !important;"> -0.08 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -0.48 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.63 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -0.41 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.25 </td>
  </tr>
</tbody>
</table>
]]

![:abs 10%, 20%, 3%](media/pudding.png)

.pull-right[

```r
santa_tib |>
  filter(treat == "Mulled wine") |>
  glm(delivered ~ quantity, data = _, family = binomial())
```

.blubox[
<table class="table" style="font-size: 16px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;color: #2C5577 !important;"> term </th>
   <th style="text-align:center;color: #2C5577 !important;"> estimate </th>
   <th style="text-align:center;color: #2C5577 !important;"> statistic </th>
   <th style="text-align:center;color: #2C5577 !important;"> p.value </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.low </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.high </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:center;"> 2.03 </td>
   <td style="text-align:center;"> 5.73 </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:center;"> 1.37 </td>
   <td style="text-align:center;"> 2.76 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #2C5577 !important;"> quantity </td>
   <td style="text-align:center;color: #2C5577 !important;"> -1.11 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -6.99 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -1.44 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -0.81 </td>
  </tr>
</tbody>
</table>
]]

![:abs 6%, 70%, 3%](media/mulled_wine.png)

</br>

.center[.eq_lrge[.blu_dk[
$$
`\begin{aligned}
b_\text{wine} − b_\text{pudding} &= −1.11−(−0.08) \\
&= −1.03
\end{aligned}`
$$
]]]

---
class: inverse
background-image: url("media/as_snowy_trees_white_126530339.jpg")
background-size: cover

# Odds ratio

```r
santa_full_mod |>
  broom::tidy(conf.int = TRUE, `exponentiate = TRUE`) |>
  knitr::kable(digits = 2, align = 'lcccccc')
```

.blubox[
<table class="table" style="font-size: 28px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;color: #2C5577 !important;"> term </th>
   <th style="text-align:center;color: #2C5577 !important;"> estimate </th>
   <th style="text-align:center;color: #2C5577 !important;"> std.error </th>
   <th style="text-align:center;color: #2C5577 !important;"> statistic </th>
   <th style="text-align:center;color: #2C5577 !important;"> p.value </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.low </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.high </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:center;"> 6.23 </td>
   <td style="text-align:center;"> 0.38 </td>
   <td style="text-align:center;"> 4.80 </td>
   <td style="text-align:center;"> 0.00 </td>
   <td style="text-align:center;"> 3.08 </td>
   <td style="text-align:center;"> 13.86 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #2C5577 !important;"> treatMulled wine </td>
   <td style="text-align:center;color: #2C5577 !important;"> 1.22 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.52 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.38 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.70 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.43 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 3.37 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> quantity </td>
   <td style="text-align:center;"> 0.92 </td>
   <td style="text-align:center;"> 0.17 </td>
   <td style="text-align:center;"> -0.48 </td>
   <td style="text-align:center;"> 0.63 </td>
   <td style="text-align:center;"> 0.66 </td>
   <td style="text-align:center;"> 1.28 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #2C5577 !important;"> treatMulled wine:quantity </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.36 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.23 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -4.45 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.00 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.23 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0.56 </td>
  </tr>
</tbody>
</table>
]

---
class: inverse
background-image: url("media/as_snowy_trees_white_126530339.jpg")
background-size: cover

</br>

.pull-left[

```r
santa_tib |>
  filter(treat == "Pudding") |>
  glm(delivered ~ quantity, data = _, family = binomial())
```

![:abs 10%, 20%, 3%](media/pudding.png)

.pull-right[

```r
santa_tib |>
  filter(treat == "Mulled wine") |>
  glm(delivered ~ quantity, data = _, family = binomial())
```

.blubox[
<table class="table" style="font-size: 16px; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:left;color: #2C5577 !important;"> term </th>
   <th style="text-align:center;color: #2C5577 !important;"> estimate </th>
   <th style="text-align:center;color: #2C5577 !important;"> statistic </th>
   <th style="text-align:center;color: #2C5577 !important;"> p.value </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.low </th>
   <th style="text-align:center;color: #2C5577 !important;"> conf.high </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:center;"> 2.03 </td>
   <td style="text-align:center;"> 5.73 </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:center;"> 1.37 </td>
   <td style="text-align:center;"> 2.76 </td>
  </tr>
  <tr>
   <td style="text-align:left;color: #2C5577 !important;"> quantity </td>
   <td style="text-align:center;color: #2C5577 !important;"> -1.11 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -6.99 </td>
   <td style="text-align:center;color: #2C5577 !important;"> 0 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -1.44 </td>
   <td style="text-align:center;color: #2C5577 !important;"> -0.81 </td>
  </tr>
</tbody>
</table>
]]

![:abs 6%, 70%, 3%](media/mulled_wine.png)

</br>

.center[.eq_lrge[.blu_dk[
$$
`\begin{aligned}
b_\text{wine} − b_\text{pudding} &= −1.11−(−0.08) \\
&= −1.03
\end{aligned}`
$$
]]]

.center[.eq_lrge[.blu_dk[
$$
`\begin{aligned}
\exp(b)_\text{difference} &= e^{−1.03} \\
&= 0.36
\end{aligned}`
$$
]]]

---
class: inverse, center, middle
background-image: url("media/as_snowman_wave_303329070.jpg")
background-size: cover
exclude: ![:isSV]

---
class: inverse, center, middle
background-image: url("media/as_snowman_wave_303329070.jpg")
background-size: cover

![](categorical_outcomes_files/figure-html/unnamed-chunk-23-1.png)

![:abs 6%, 78%, 60%](media/mulled_wine.png)
![:abs 10%, 75%, 20%](media/pudding.png)

---
class: inverse, center, middle
background-image: url("media/as_snowman_wave_303329070.jpg")
background-size: cover
exclude: true

![](categorical_outcomes_files/figure-html/unnamed-chunk-24-1.png)

---
class: inverse
background-image: url("media/as_blu_snowman_389261412.jpg")
background-size: cover
exclude: true

#  Conclusions

.pull-left[
### It’s OK for elves to eat puddings

### It’s not OK for elves to drink more than 1 glass of mulled wine!
]

---
class: inverse
background-image: url("media/as_log_cabin_184043999.jpg")
background-size: cover
exclude: true

.left[.blubox[

You’d better watch out, you might want to cry </br>
You’d better beware, I’m telling you why </br>
Logistic regression is coming to town

Santa’s checking the output, he’s checking it twice </br>
To try to predict, who’s naughty or nice </br>
Logistic regression is coming to town

He’s got a binary outcome. Residuals aren’t normal </br>
But with a logit link function, everything is cool </br>

So, there’s nothing to fear. There’s no need to cry </br>
It’s like every other model we’ve tried </br>
Logistic regression is coming to town

The effect of predictors, is easy to see </br>
You just to need to check the exponent of *b* </br>
Logistic regression is coming to town

But design cells can be empty, that’s incomplete information </br>
And if prediction is perfect then you have complete separation </br>

But there’s nothing to fear. There’s no need to cry </br>
It’s like every other, model we’ve tried </br>
Logistic regression is coming to town
]]

---

background-image: none
background-color: #000000
class: no-scribble
exclude: ![:isSV]

???

---

background-image: none
background-color: #000000
class: no-scribble
exclude: ![:isSV]

---
