Repeated measures designs

# Repeated measures and the GLM
## Professor Andy Field

<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/twitter_60.png">
  <span style="line-height:40px;">@profandyfield</span>
</div>
<div>
  <img style="vertical-align:middle; width:60px" src="media/youtube.png">
  <span style="line-height:40px;">www.youtube.com/user/ProfAndyField/</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/ds_com_fav.png">
  <span style="line-height:40px;">www.discoveringstatistics.com</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/milton_grey_fav.png">
  <span style="line-height:40px;">www.milton-the-cat.rocks</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/discovr_fav.png">
  <span style="line-height:40px;">www.discovr.rocks</span>
</div>

???

h or ?: Toggle the help window
j: Jump to next slide
k: Jump to previous slide
b: Toggle blackout mode
m: Toggle mirrored mode.
p: Toggle PresenterMode
f: Toggle Fullscreen
t: Reset presentation timer
<number> + <Return>: Jump to slide <number>
c: Create a clone presentation on a new window

class: inverse
background-image: url("media/spaceship_neon_ppt_hex.jpg")
background-size: cover

.eq_lrge[.center[There is unrest in the universe. A race of evil space lizards known as the Inane Cult are planning to take over Earth. Their leader *Lazinc Durt* is poised for the invasion.

*Hora Stet*, a brave but exhausted saviour of our world is oblivious to Lazinc Durt's plans. He has spend many years protecting the Earth, but he is counting the days until he can pass his mission on and retire to a nice beach.

His fearless protégé, *Daze Flich*, arrives with a message ...]]

---

???

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: Hora Stet, I'm so glad to see you.

**Hora Stet**: Daze? Where have you been?

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: On a long, dangerous, heroic mission, where I was very heroic. I have intercepted a transmission from Lazinc Durt, leader of the inane cult. It's not good news.

**Hora**: What is it?

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: Let me show you ....

---
background-image: none
background-color: #000000
class: no-scribble

???

**Hora Stet**: Oh, that is bad ....

**Daze**: Hora, how can we stop them?

**Hora Stet**: We've been experimenting with training sniffer dogs to detect aliens but we need more research. Can you get me some sniffer dogs?

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: We have the best spaniels in the land, but we could only find 8 of them.

**Hora Stet**: Hmmm, that's not many. I'm nopt sure whjat I can do with 8 spaniels. I may need to consult a higher intelligence.

---
background-image: none
background-color: #000000
class: no-scribble

---

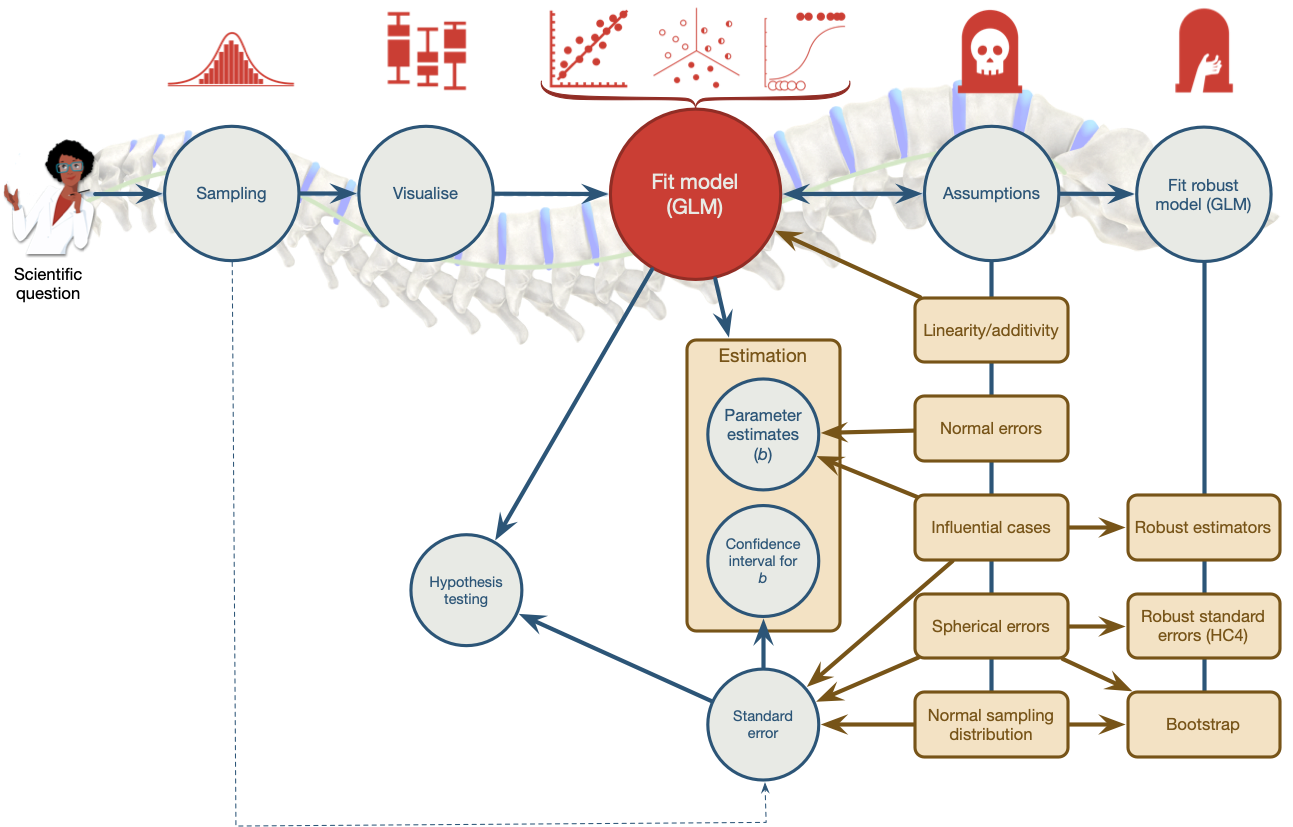

![:scale 83%](media/spine_content_map.png)
???

We've seen this map of the process of fitting models before

---
class: center

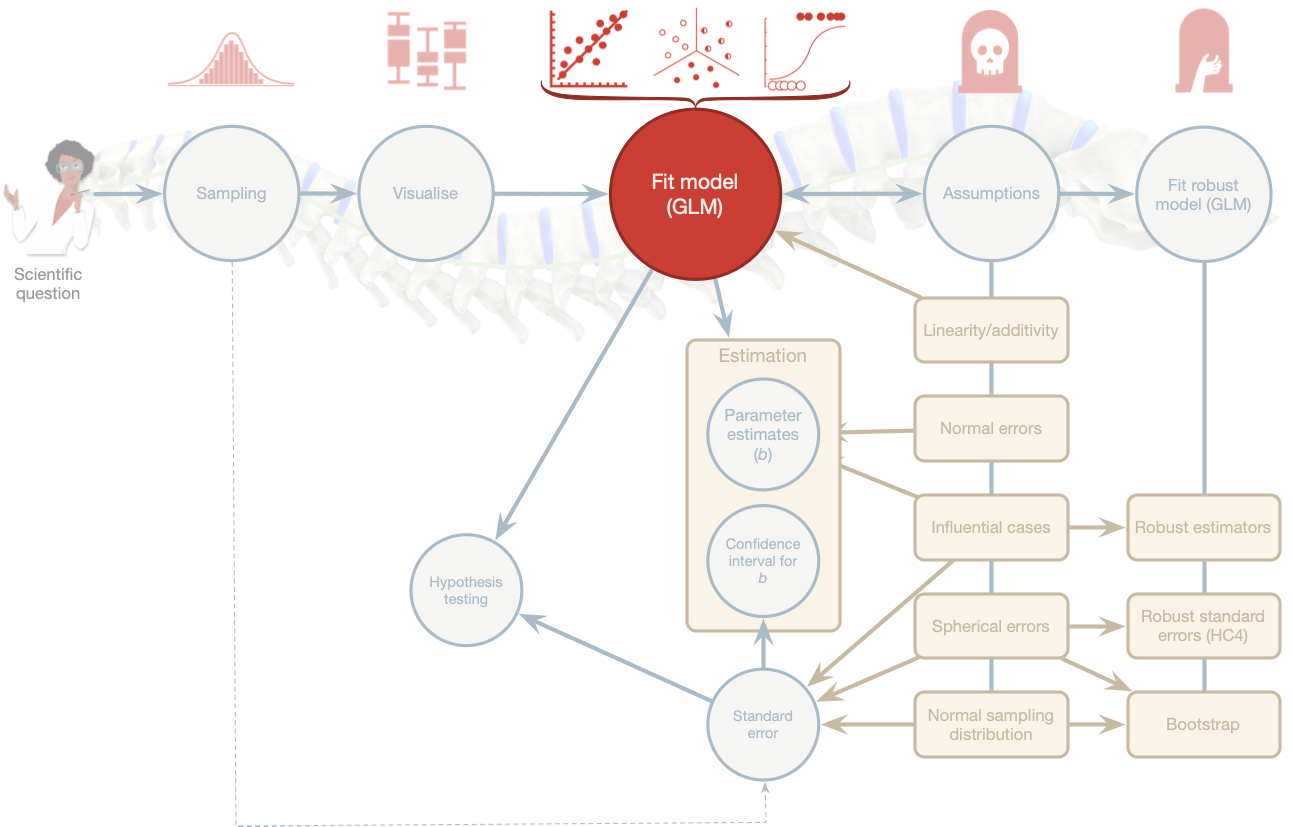

![:scale 83%](media/spine_lec_04.png)

???

Today we focus back on the model itself to look at the form of the model we're fitting. The faded stuff still applies though - we'll look at bias, robust models, and of course samples and estimation and so on. But they are the same as for other models, what is different is the form of the model we're fitting.

---
.center[

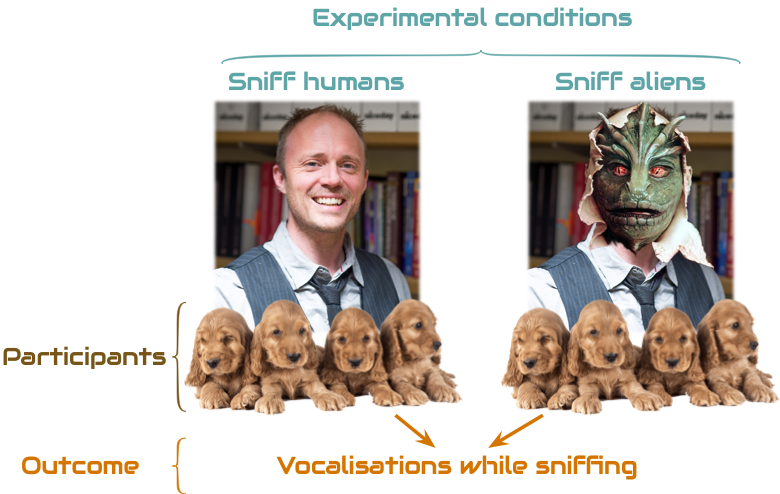

![:scale 65%](media/rm_design_sniffing_puppies.png)
]

* **Systematic variance**: created by our manipulation
* **Unsystematic variance**: variance created by unknown factors

???
If we test the same puppies while sniffing humans at two points in time, we’d expect them to get similar scores (other things being equal their vocalizations shouldn’t change much). A lot of unsystematic variance is removed (e.g. how much they bnaturally vocalise, how sensitive their nose is etc.).

Like an independent design, in a repeated measures design, differences between the two conditions can be caused by one of two things: (1) the manipulation that was carried out on the participants (whether the puppies sniffed aliens or humans), or (2) other factors that we couldn’t account for (time of day, mood, excitability). The latter factor in is likely to create much less random variation in a RM design because many sources of possible variation are controlled.

As such, there are always two sources of variation:

Systematic variation: This variation is due to the experimenter doing something to all of the participants in one condition but not in the other condition.

Unsystematic variation: This variation results from random factors that could not be controlled.

Like independent designs, repeated measures designs still compare the amount of systematic variance to the amount of unsystematic variance. In other words it compares the amount of variation caused by the experiment to the amount of natural variation (created by uncontrolled variables). However, the source of the systematic variance is different (I.e. it comes from within participants rather than between).

---

# Benefits of repeated measures designs

* Sensitivity
    + Unsystematic variance is reduced
    + More sensitive to experimental effects

* Economy
    + Less participants are needed
    + But, be careful of fatigue

???
Sensitivity
The effect of our experimental manipulation is likely to be more apparent in a repeated measures design than in a between-group design because in the former unsystematic variation can be caused only by differences in the way in which someone behaves at different times. In between-group designs we have differences in innate ability contributing to the unsystematic variation. Therefore, this error variation will almost always be much larger than if the same participants had been used. When we look at the effect of our experimental manipulation, it is always against a background of ‘noise’ caused by random, uncontrollable differences between our conditions. In a repeated measures design this ‘noise’ is kept to a minimum and so the effect of the experiment is more likely to show up. This means that repeated measures designs have more power to detect effects that genuinely exist than independent designs.
Economy
Repeated measures designs make more efficient use of participants and so save time and money. However, although in theory you could have a participant take part in many different conditions, they do tend to get very bored and frustrated in long experiments. Therefore, it’s always worth trying to bear in mind what your participants will have to endure before designing an experiment with 250 different experimental conditions

---

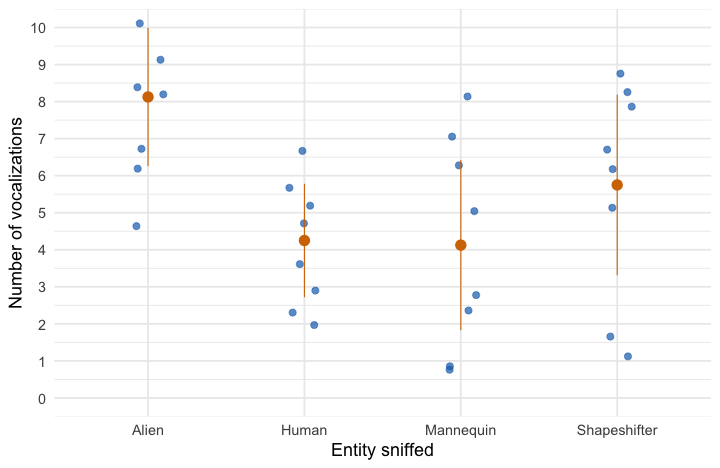

# Can puppies sniff out aliens?

* Outcome = vocalizations during 1 min sniffing (**vocalizations**)

* Predictor: type of entity being sniffed (**entity**)
      - Alien (not in humanoid form)
      - Human (control for alien vs human)
      - Mannequin (control for humanoid form)
      - Shapeshifter (alien in humanoid form)

* **dog_name** indicates the name of the dog (*N* = 8)

???

Imagine a scientist wanted to look at

---
# The data

.center[.whitebox[
<div id="ivrzgjbbep" style="padding-left:0px;padding-right:0px;padding-top:10px;padding-bottom:10px;overflow-x:auto;overflow-y:auto;width:auto;height:auto;">
<style>#ivrzgjbbep table {
  font-family: system-ui, 'Segoe UI', Roboto, Helvetica, Arial, sans-serif, 'Apple Color Emoji', 'Segoe UI Emoji', 'Segoe UI Symbol', 'Noto Color Emoji';
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
}

#ivrzgjbbep thead, #ivrzgjbbep tbody, #ivrzgjbbep tfoot, #ivrzgjbbep tr, #ivrzgjbbep td, #ivrzgjbbep th {
  border-style: none;
}

#ivrzgjbbep p {
  margin: 0;
  padding: 0;
}

#ivrzgjbbep .gt_table {
  display: table;
  border-collapse: collapse;
  line-height: normal;
  margin-left: auto;
  margin-right: auto;
  color: #333333;
  font-size: 16px;
  font-weight: normal;
  font-style: normal;
  background-color: #FFFFFF;
  width: auto;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #A8A8A8;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #A8A8A8;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
}

#ivrzgjbbep .gt_caption {
  padding-top: 4px;
  padding-bottom: 4px;
}

#ivrzgjbbep .gt_title {
  color: #333333;
  font-size: 125%;
  font-weight: initial;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-color: #FFFFFF;
  border-bottom-width: 0;
}

#ivrzgjbbep .gt_subtitle {
  color: #333333;
  font-size: 85%;
  font-weight: initial;
  padding-top: 3px;
  padding-bottom: 5px;
  padding-left: 5px;
  padding-right: 5px;
  border-top-color: #FFFFFF;
  border-top-width: 0;
}

#ivrzgjbbep .gt_heading {
  background-color: #FFFFFF;
  text-align: center;
  border-bottom-color: #FFFFFF;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
}

#ivrzgjbbep .gt_bottom_border {
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#ivrzgjbbep .gt_col_headings {
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
}

#ivrzgjbbep .gt_col_heading {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: normal;
  text-transform: inherit;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: bottom;
  padding-top: 5px;
  padding-bottom: 6px;
  padding-left: 5px;
  padding-right: 5px;
  overflow-x: hidden;
}

#ivrzgjbbep .gt_column_spanner_outer {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: normal;
  text-transform: inherit;
  padding-top: 0;
  padding-bottom: 0;
  padding-left: 4px;
  padding-right: 4px;
}

#ivrzgjbbep .gt_column_spanner_outer:first-child {
  padding-left: 0;
}

#ivrzgjbbep .gt_column_spanner_outer:last-child {
  padding-right: 0;
}

#ivrzgjbbep .gt_column_spanner {
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  vertical-align: bottom;
  padding-top: 5px;
  padding-bottom: 5px;
  overflow-x: hidden;
  display: inline-block;
  width: 100%;
}

#ivrzgjbbep .gt_spanner_row {
  border-bottom-style: hidden;
}

#ivrzgjbbep .gt_group_heading {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: middle;
  text-align: left;
}

#ivrzgjbbep .gt_empty_group_heading {
  padding: 0.5px;
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  vertical-align: middle;
}

#ivrzgjbbep .gt_from_md > :first-child {
  margin-top: 0;
}

#ivrzgjbbep .gt_from_md > :last-child {
  margin-bottom: 0;
}

#ivrzgjbbep .gt_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  margin: 10px;
  border-top-style: solid;
  border-top-width: 1px;
  border-top-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: middle;
  overflow-x: hidden;
}

#ivrzgjbbep .gt_stub {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-right-style: solid;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  padding-left: 5px;
  padding-right: 5px;
}

#ivrzgjbbep .gt_stub_row_group {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-right-style: solid;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  padding-left: 5px;
  padding-right: 5px;
  vertical-align: top;
}

#ivrzgjbbep .gt_row_group_first td {
  border-top-width: 2px;
}

#ivrzgjbbep .gt_row_group_first th {
  border-top-width: 2px;
}

#ivrzgjbbep .gt_summary_row {
  color: #333333;
  background-color: #FFFFFF;
  text-transform: inherit;
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
}

#ivrzgjbbep .gt_first_summary_row {
  border-top-style: solid;
  border-top-color: #D3D3D3;
}

#ivrzgjbbep .gt_first_summary_row.thick {
  border-top-width: 2px;
}

#ivrzgjbbep .gt_last_summary_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#ivrzgjbbep .gt_grand_summary_row {
  color: #333333;
  background-color: #FFFFFF;
  text-transform: inherit;
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
}

#ivrzgjbbep .gt_first_grand_summary_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-top-style: double;
  border-top-width: 6px;
  border-top-color: #D3D3D3;
}

#ivrzgjbbep .gt_last_grand_summary_row_top {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-style: double;
  border-bottom-width: 6px;
  border-bottom-color: #D3D3D3;
}

#ivrzgjbbep .gt_striped {
  background-color: rgba(128, 128, 128, 0.05);
}

#ivrzgjbbep .gt_table_body {
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#ivrzgjbbep .gt_footnotes {
  color: #333333;
  background-color: #FFFFFF;
  border-bottom-style: none;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
}

#ivrzgjbbep .gt_footnote {
  margin: 0px;
  font-size: 90%;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
}

#ivrzgjbbep .gt_sourcenotes {
  color: #333333;
  background-color: #FFFFFF;
  border-bottom-style: none;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
}

#ivrzgjbbep .gt_sourcenote {
  font-size: 90%;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
}

#ivrzgjbbep .gt_left {
  text-align: left;
}

#ivrzgjbbep .gt_center {
  text-align: center;
}

#ivrzgjbbep .gt_right {
  text-align: right;
  font-variant-numeric: tabular-nums;
}

#ivrzgjbbep .gt_font_normal {
  font-weight: normal;
}

#ivrzgjbbep .gt_font_bold {
  font-weight: bold;
}

#ivrzgjbbep .gt_font_italic {
  font-style: italic;
}

#ivrzgjbbep .gt_super {
  font-size: 65%;
}

#ivrzgjbbep .gt_footnote_marks {
  font-size: 75%;
  vertical-align: 0.4em;
  position: initial;
}

#ivrzgjbbep .gt_asterisk {
  font-size: 100%;
  vertical-align: 0;
}

#ivrzgjbbep .gt_indent_1 {
  text-indent: 5px;
}

#ivrzgjbbep .gt_indent_2 {
  text-indent: 10px;
}

#ivrzgjbbep .gt_indent_3 {
  text-indent: 15px;
}

#ivrzgjbbep .gt_indent_4 {
  text-indent: 20px;
}

#ivrzgjbbep .gt_indent_5 {
  text-indent: 25px;
}
</style>
<table class="gt_table" data-quarto-disable-processing="false" data-quarto-bootstrap="false">
  <thead>

    <tr class="gt_col_headings">
      <th class="gt_col_heading gt_columns_bottom_border gt_left" rowspan="1" colspan="1" scope="col" id=""></th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="dog_name">dog_name</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Alien">Alien</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Human">Human</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Mannequin">Mannequin</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Shapeshifter">Shapeshifter</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Mean">Mean</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Variance">Variance</th>
    </tr>
  </thead>
  <tbody class="gt_table_body">
    <tr><th id="stub_1_1" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_1 dog_name" class="gt_row gt_center">Milton</td>
<td headers="stub_1_1 Alien" class="gt_row gt_center">8</td>
<td headers="stub_1_1 Human" class="gt_row gt_center">7</td>
<td headers="stub_1_1 Mannequin" class="gt_row gt_center">1</td>
<td headers="stub_1_1 Shapeshifter" class="gt_row gt_center">6</td>
<td headers="stub_1_1 Mean" class="gt_row gt_center">5.50</td>
<td headers="stub_1_1 Variance" class="gt_row gt_center">7.25</td></tr>
    <tr><th id="stub_1_2" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_2 dog_name" class="gt_row gt_center">Woofy</td>
<td headers="stub_1_2 Alien" class="gt_row gt_center">9</td>
<td headers="stub_1_2 Human" class="gt_row gt_center">5</td>
<td headers="stub_1_2 Mannequin" class="gt_row gt_center">2</td>
<td headers="stub_1_2 Shapeshifter" class="gt_row gt_center">5</td>
<td headers="stub_1_2 Mean" class="gt_row gt_center">5.25</td>
<td headers="stub_1_2 Variance" class="gt_row gt_center">6.19</td></tr>
    <tr><th id="stub_1_3" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_3 dog_name" class="gt_row gt_center">Ramsey</td>
<td headers="stub_1_3 Alien" class="gt_row gt_center">6</td>
<td headers="stub_1_3 Human" class="gt_row gt_center">2</td>
<td headers="stub_1_3 Mannequin" class="gt_row gt_center">3</td>
<td headers="stub_1_3 Shapeshifter" class="gt_row gt_center">8</td>
<td headers="stub_1_3 Mean" class="gt_row gt_center">4.75</td>
<td headers="stub_1_3 Variance" class="gt_row gt_center">5.69</td></tr>
    <tr><th id="stub_1_4" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_4 dog_name" class="gt_row gt_center">Mr. Snifficus III</td>
<td headers="stub_1_4 Alien" class="gt_row gt_center">5</td>
<td headers="stub_1_4 Human" class="gt_row gt_center">3</td>
<td headers="stub_1_4 Mannequin" class="gt_row gt_center">1</td>
<td headers="stub_1_4 Shapeshifter" class="gt_row gt_center">9</td>
<td headers="stub_1_4 Mean" class="gt_row gt_center">4.50</td>
<td headers="stub_1_4 Variance" class="gt_row gt_center">8.75</td></tr>
    <tr><th id="stub_1_5" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_5 dog_name" class="gt_row gt_center">Willock</td>
<td headers="stub_1_5 Alien" class="gt_row gt_center">8</td>
<td headers="stub_1_5 Human" class="gt_row gt_center">4</td>
<td headers="stub_1_5 Mannequin" class="gt_row gt_center">5</td>
<td headers="stub_1_5 Shapeshifter" class="gt_row gt_center">8</td>
<td headers="stub_1_5 Mean" class="gt_row gt_center">6.25</td>
<td headers="stub_1_5 Variance" class="gt_row gt_center">3.19</td></tr>
    <tr><th id="stub_1_6" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_6 dog_name" class="gt_row gt_center">The Venerable Dr. Waggy</td>
<td headers="stub_1_6 Alien" class="gt_row gt_center">7</td>
<td headers="stub_1_6 Human" class="gt_row gt_center">5</td>
<td headers="stub_1_6 Mannequin" class="gt_row gt_center">6</td>
<td headers="stub_1_6 Shapeshifter" class="gt_row gt_center">7</td>
<td headers="stub_1_6 Mean" class="gt_row gt_center">6.25</td>
<td headers="stub_1_6 Variance" class="gt_row gt_center">0.69</td></tr>
    <tr><th id="stub_1_7" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_7 dog_name" class="gt_row gt_center">Lord Scenticle</td>
<td headers="stub_1_7 Alien" class="gt_row gt_center">10</td>
<td headers="stub_1_7 Human" class="gt_row gt_center">2</td>
<td headers="stub_1_7 Mannequin" class="gt_row gt_center">7</td>
<td headers="stub_1_7 Shapeshifter" class="gt_row gt_center">2</td>
<td headers="stub_1_7 Mean" class="gt_row gt_center">5.25</td>
<td headers="stub_1_7 Variance" class="gt_row gt_center">11.69</td></tr>
    <tr><th id="stub_1_8" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_8 dog_name" class="gt_row gt_center">Professor Nose</td>
<td headers="stub_1_8 Alien" class="gt_row gt_center">12</td>
<td headers="stub_1_8 Human" class="gt_row gt_center">6</td>
<td headers="stub_1_8 Mannequin" class="gt_row gt_center">8</td>
<td headers="stub_1_8 Shapeshifter" class="gt_row gt_center">1</td>
<td headers="stub_1_8 Mean" class="gt_row gt_center">6.75</td>
<td headers="stub_1_8 Variance" class="gt_row gt_center">15.69</td></tr>
    <tr><th id="grand_summary_stub_1" scope="row" class="gt_row gt_left gt_stub gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row"><strong>Mean</strong></th>
<td headers="grand_summary_stub_1 dog_name" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row">—</td>
<td headers="grand_summary_stub_1 Alien" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">8.12</td>
<td headers="grand_summary_stub_1 Human" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">4.25</td>
<td headers="grand_summary_stub_1 Mannequin" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">4.12</td>
<td headers="grand_summary_stub_1 Shapeshifter" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">5.75</td>
<td headers="grand_summary_stub_1 Mean" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row">—</td>
<td headers="grand_summary_stub_1 Variance" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row">—</td></tr>
  </tbody>


</table>
</div>
]]

---
# The data in <svg style="height: 1em; top:.04em; position: relative; fill: #136CB9;" viewBox="0 0 581 512"><path d="M581 226.6C581 119.1 450.9 32 290.5 32S0 119.1 0 226.6C0 322.4 103.3 402 239.4 418.1V480h99.1v-61.5c24.3-2.7 47.6-7.4 69.4-13.9L448 480h112l-67.4-113.7c54.5-35.4 88.4-84.9 88.4-139.7zm-466.8 14.5c0-73.5 98.9-133 220.8-133s211.9 40.7 211.9 133c0 50.1-26.5 85-70.3 106.4-2.4-1.6-4.7-2.9-6.4-3.7-10.2-5.2-27.8-10.5-27.8-10.5s86.6-6.4 86.6-92.7-90.6-87.9-90.6-87.9h-199V361c-74.1-21.5-125.2-67.1-125.2-119.9zm225.1 38.3v-55.6c57.8 0 87.8-6.8 87.8 27.3 0 36.5-38.2 28.3-87.8 28.3zm-.9 72.5H365c10.8 0 18.9 11.7 24 19.2-16.1 1.9-33 2.8-50.6 2.9v-22.1z"/></svg>

<div class="datatables html-widget html-fill-item-overflow-hidden html-fill-item" id="htmlwidget-4cfb2014a3685ee33566" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-4cfb2014a3685ee33566">{"x":{"filter":"none","vertical":false,"caption":"<caption>Table 2: Data for the sniffer dog example<\/caption>","data":[["1","2","3","4","5","6","7","8","9","10","11","12","13","14","15","16","17","18","19","20","21","22","23","24","25","26","27","28","29","30","31","32"],["Milton","Milton","Milton","Milton","Woofy","Woofy","Woofy","Woofy","Ramsey","Ramsey","Ramsey","Ramsey","Mr. Snifficus III","Mr. Snifficus III","Mr. Snifficus III","Mr. Snifficus III","Willock","Willock","Willock","Willock","The Venerable Dr. Waggy","The Venerable Dr. Waggy","The Venerable Dr. Waggy","The Venerable Dr. Waggy","Lord Scenticle","Lord Scenticle","Lord Scenticle","Lord Scenticle","Professor Nose","Professor Nose","Professor Nose","Professor Nose"],["Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter"],[8,7,1,6,9,5,2,5,6,2,3,8,5,3,1,9,8,4,5,8,7,5,6,7,10,2,7,2,12,6,8,1]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>dog_name<\/th>\n      <th>entity<\/th>\n      <th>vocalizations<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"dom":"tp","columnDefs":[{"className":"dt-center","targets":[1,2,3]},{"orderable":false,"targets":0}],"pageLength":10,"order":[],"autoWidth":false,"orderClasses":false},"selection":{"mode":"multiple","selected":null,"target":"row","selectable":null}},"evals":[],"jsHooks":[]}</script>

---
# Repeated measures and the linear model

$$
`\begin{aligned}
\text{vocalizations}_{i} & = \hat{b}_{0} + \hat{b}_{1}\text{entity}_{i}+ e_{i}\\
\end{aligned}`
$$

* Same participants in all conditions

+ Scores across conditions correlate

  + Violates the assumption of independent residuals (think back to the lecture on bias)

* Need to adjust the model to estimate this dependency

.center[.ong[.eq_lrge[
$$
`\begin{aligned}
\text{vocalizations}_{ij} &= (\hat{b}_{0} + \hat{u}_{0j}) + (\hat{b}_{1j} + \hat{u}_{1j})\text{entity}_{ij}+ e_{ij}\\
\hat{u}_{0j} &\sim N(0, \sigma^2_{u_0})\\
\hat{u}_{1j} &\sim N(0, \sigma^2_{u_1})\\
\end{aligned}`
$$
]]]

* Remember that **entity** would actually be split into 3 dummy/contrast variables

---
# Approaches to repeated measures designs and the GLM

1. Assume **sphericity**

  + Estimate it

  + Correct for it (adjust the degrees of freedom)

2. Fit a different kind of model (a *multilevel growth model*)

  + Can model different kinds of dependency in errors

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# What is sphericity, `$\epsilon$` ?

.center[
<div id="maudidvgfo" style="padding-left:0px;padding-right:0px;padding-top:10px;padding-bottom:10px;overflow-x:auto;overflow-y:auto;width:auto;height:auto;">
<style>#maudidvgfo table {
  font-family: system-ui, 'Segoe UI', Roboto, Helvetica, Arial, sans-serif, 'Apple Color Emoji', 'Segoe UI Emoji', 'Segoe UI Symbol', 'Noto Color Emoji';
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
}

#maudidvgfo thead, #maudidvgfo tbody, #maudidvgfo tfoot, #maudidvgfo tr, #maudidvgfo td, #maudidvgfo th {
  border-style: none;
}

#maudidvgfo p {
  margin: 0;
  padding: 0;
}

#maudidvgfo .gt_table {
  display: table;
  border-collapse: collapse;
  line-height: normal;
  margin-left: auto;
  margin-right: auto;
  color: #333333;
  font-size: 16px;
  font-weight: normal;
  font-style: normal;
  background-color: #FFFFFF;
  width: auto;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #A8A8A8;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #A8A8A8;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
}

#maudidvgfo .gt_caption {
  padding-top: 4px;
  padding-bottom: 4px;
}

#maudidvgfo .gt_title {
  color: #333333;
  font-size: 125%;
  font-weight: initial;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-color: #FFFFFF;
  border-bottom-width: 0;
}

#maudidvgfo .gt_subtitle {
  color: #333333;
  font-size: 85%;
  font-weight: initial;
  padding-top: 3px;
  padding-bottom: 5px;
  padding-left: 5px;
  padding-right: 5px;
  border-top-color: #FFFFFF;
  border-top-width: 0;
}

#maudidvgfo .gt_heading {
  background-color: #FFFFFF;
  text-align: center;
  border-bottom-color: #FFFFFF;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
}

#maudidvgfo .gt_bottom_border {
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#maudidvgfo .gt_col_headings {
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
}

#maudidvgfo .gt_col_heading {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: normal;
  text-transform: inherit;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: bottom;
  padding-top: 5px;
  padding-bottom: 6px;
  padding-left: 5px;
  padding-right: 5px;
  overflow-x: hidden;
}

#maudidvgfo .gt_column_spanner_outer {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: normal;
  text-transform: inherit;
  padding-top: 0;
  padding-bottom: 0;
  padding-left: 4px;
  padding-right: 4px;
}

#maudidvgfo .gt_column_spanner_outer:first-child {
  padding-left: 0;
}

#maudidvgfo .gt_column_spanner_outer:last-child {
  padding-right: 0;
}

#maudidvgfo .gt_column_spanner {
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  vertical-align: bottom;
  padding-top: 5px;
  padding-bottom: 5px;
  overflow-x: hidden;
  display: inline-block;
  width: 100%;
}

#maudidvgfo .gt_spanner_row {
  border-bottom-style: hidden;
}

#maudidvgfo .gt_group_heading {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: middle;
  text-align: left;
}

#maudidvgfo .gt_empty_group_heading {
  padding: 0.5px;
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  vertical-align: middle;
}

#maudidvgfo .gt_from_md > :first-child {
  margin-top: 0;
}

#maudidvgfo .gt_from_md > :last-child {
  margin-bottom: 0;
}

#maudidvgfo .gt_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  margin: 10px;
  border-top-style: solid;
  border-top-width: 1px;
  border-top-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: middle;
  overflow-x: hidden;
}

#maudidvgfo .gt_stub {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-right-style: solid;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  padding-left: 5px;
  padding-right: 5px;
}

#maudidvgfo .gt_stub_row_group {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-right-style: solid;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  padding-left: 5px;
  padding-right: 5px;
  vertical-align: top;
}

#maudidvgfo .gt_row_group_first td {
  border-top-width: 2px;
}

#maudidvgfo .gt_row_group_first th {
  border-top-width: 2px;
}

#maudidvgfo .gt_summary_row {
  color: #333333;
  background-color: #FFFFFF;
  text-transform: inherit;
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
}

#maudidvgfo .gt_first_summary_row {
  border-top-style: solid;
  border-top-color: #D3D3D3;
}

#maudidvgfo .gt_first_summary_row.thick {
  border-top-width: 2px;
}

#maudidvgfo .gt_last_summary_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#maudidvgfo .gt_grand_summary_row {
  color: #333333;
  background-color: #FFFFFF;
  text-transform: inherit;
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
}

#maudidvgfo .gt_first_grand_summary_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-top-style: double;
  border-top-width: 6px;
  border-top-color: #D3D3D3;
}

#maudidvgfo .gt_last_grand_summary_row_top {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-style: double;
  border-bottom-width: 6px;
  border-bottom-color: #D3D3D3;
}

#maudidvgfo .gt_striped {
  background-color: rgba(128, 128, 128, 0.05);
}

#maudidvgfo .gt_table_body {
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#maudidvgfo .gt_footnotes {
  color: #333333;
  background-color: #FFFFFF;
  border-bottom-style: none;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
}

#maudidvgfo .gt_footnote {
  margin: 0px;
  font-size: 90%;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
}

#maudidvgfo .gt_sourcenotes {
  color: #333333;
  background-color: #FFFFFF;
  border-bottom-style: none;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
}

#maudidvgfo .gt_sourcenote {
  font-size: 90%;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
}

#maudidvgfo .gt_left {
  text-align: left;
}

#maudidvgfo .gt_center {
  text-align: center;
}

#maudidvgfo .gt_right {
  text-align: right;
  font-variant-numeric: tabular-nums;
}

#maudidvgfo .gt_font_normal {
  font-weight: normal;
}

#maudidvgfo .gt_font_bold {
  font-weight: bold;
}

#maudidvgfo .gt_font_italic {
  font-style: italic;
}

#maudidvgfo .gt_super {
  font-size: 65%;
}

#maudidvgfo .gt_footnote_marks {
  font-size: 75%;
  vertical-align: 0.4em;
  position: initial;
}

#maudidvgfo .gt_asterisk {
  font-size: 100%;
  vertical-align: 0;
}

#maudidvgfo .gt_indent_1 {
  text-indent: 5px;
}

#maudidvgfo .gt_indent_2 {
  text-indent: 10px;
}

#maudidvgfo .gt_indent_3 {
  text-indent: 15px;
}

#maudidvgfo .gt_indent_4 {
  text-indent: 20px;
}

#maudidvgfo .gt_indent_5 {
  text-indent: 25px;
}
</style>
<table class="gt_table" data-quarto-disable-processing="false" data-quarto-bootstrap="false">
  <thead>

    <tr class="gt_col_headings">
      <th class="gt_col_heading gt_columns_bottom_border gt_left" rowspan="1" colspan="1" scope="col" id=""></th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Alien-Human">Alien-Human</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Alien-Mannequin">Alien-Mannequin</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Alien-Shapeshifter">Alien-Shapeshifter</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Human-Mannequin">Human-Mannequin</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Human-Shapeshifter">Human-Shapeshifter</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Mannequin-Shapeshifter">Mannequin-Shapeshifter</th>
    </tr>
  </thead>
  <tbody class="gt_table_body">
    <tr><th id="stub_1_1" scope="row" class="gt_row gt_center gt_stub">Milton</th>
<td headers="stub_1_1 Alien-Human" class="gt_row gt_center">1</td>
<td headers="stub_1_1 Alien-Mannequin" class="gt_row gt_center">7</td>
<td headers="stub_1_1 Alien-Shapeshifter" class="gt_row gt_center">2</td>
<td headers="stub_1_1 Human-Mannequin" class="gt_row gt_center">6</td>
<td headers="stub_1_1 Human-Shapeshifter" class="gt_row gt_center">1</td>
<td headers="stub_1_1 Mannequin-Shapeshifter" class="gt_row gt_center">-5</td></tr>
    <tr><th id="stub_1_2" scope="row" class="gt_row gt_center gt_stub">Woofy</th>
<td headers="stub_1_2 Alien-Human" class="gt_row gt_center">4</td>
<td headers="stub_1_2 Alien-Mannequin" class="gt_row gt_center">7</td>
<td headers="stub_1_2 Alien-Shapeshifter" class="gt_row gt_center">4</td>
<td headers="stub_1_2 Human-Mannequin" class="gt_row gt_center">3</td>
<td headers="stub_1_2 Human-Shapeshifter" class="gt_row gt_center">0</td>
<td headers="stub_1_2 Mannequin-Shapeshifter" class="gt_row gt_center">-3</td></tr>
    <tr><th id="stub_1_3" scope="row" class="gt_row gt_center gt_stub">Ramsey</th>
<td headers="stub_1_3 Alien-Human" class="gt_row gt_center">4</td>
<td headers="stub_1_3 Alien-Mannequin" class="gt_row gt_center">3</td>
<td headers="stub_1_3 Alien-Shapeshifter" class="gt_row gt_center">-2</td>
<td headers="stub_1_3 Human-Mannequin" class="gt_row gt_center">-1</td>
<td headers="stub_1_3 Human-Shapeshifter" class="gt_row gt_center">-6</td>
<td headers="stub_1_3 Mannequin-Shapeshifter" class="gt_row gt_center">-5</td></tr>
    <tr><th id="stub_1_4" scope="row" class="gt_row gt_center gt_stub">Mr. Snifficus III</th>
<td headers="stub_1_4 Alien-Human" class="gt_row gt_center">2</td>
<td headers="stub_1_4 Alien-Mannequin" class="gt_row gt_center">4</td>
<td headers="stub_1_4 Alien-Shapeshifter" class="gt_row gt_center">-4</td>
<td headers="stub_1_4 Human-Mannequin" class="gt_row gt_center">2</td>
<td headers="stub_1_4 Human-Shapeshifter" class="gt_row gt_center">-6</td>
<td headers="stub_1_4 Mannequin-Shapeshifter" class="gt_row gt_center">-8</td></tr>
    <tr><th id="stub_1_5" scope="row" class="gt_row gt_center gt_stub">Willock</th>
<td headers="stub_1_5 Alien-Human" class="gt_row gt_center">4</td>
<td headers="stub_1_5 Alien-Mannequin" class="gt_row gt_center">3</td>
<td headers="stub_1_5 Alien-Shapeshifter" class="gt_row gt_center">0</td>
<td headers="stub_1_5 Human-Mannequin" class="gt_row gt_center">-1</td>
<td headers="stub_1_5 Human-Shapeshifter" class="gt_row gt_center">-4</td>
<td headers="stub_1_5 Mannequin-Shapeshifter" class="gt_row gt_center">-3</td></tr>
    <tr><th id="stub_1_6" scope="row" class="gt_row gt_center gt_stub">The Venerable Dr. Waggy</th>
<td headers="stub_1_6 Alien-Human" class="gt_row gt_center">2</td>
<td headers="stub_1_6 Alien-Mannequin" class="gt_row gt_center">1</td>
<td headers="stub_1_6 Alien-Shapeshifter" class="gt_row gt_center">0</td>
<td headers="stub_1_6 Human-Mannequin" class="gt_row gt_center">-1</td>
<td headers="stub_1_6 Human-Shapeshifter" class="gt_row gt_center">-2</td>
<td headers="stub_1_6 Mannequin-Shapeshifter" class="gt_row gt_center">-1</td></tr>
    <tr><th id="stub_1_7" scope="row" class="gt_row gt_center gt_stub">Lord Scenticle</th>
<td headers="stub_1_7 Alien-Human" class="gt_row gt_center">8</td>
<td headers="stub_1_7 Alien-Mannequin" class="gt_row gt_center">3</td>
<td headers="stub_1_7 Alien-Shapeshifter" class="gt_row gt_center">8</td>
<td headers="stub_1_7 Human-Mannequin" class="gt_row gt_center">-5</td>
<td headers="stub_1_7 Human-Shapeshifter" class="gt_row gt_center">0</td>
<td headers="stub_1_7 Mannequin-Shapeshifter" class="gt_row gt_center">5</td></tr>
    <tr><th id="stub_1_8" scope="row" class="gt_row gt_center gt_stub">Professor Nose</th>
<td headers="stub_1_8 Alien-Human" class="gt_row gt_center">6</td>
<td headers="stub_1_8 Alien-Mannequin" class="gt_row gt_center">4</td>
<td headers="stub_1_8 Alien-Shapeshifter" class="gt_row gt_center">11</td>
<td headers="stub_1_8 Human-Mannequin" class="gt_row gt_center">-2</td>
<td headers="stub_1_8 Human-Shapeshifter" class="gt_row gt_center">5</td>
<td headers="stub_1_8 Mannequin-Shapeshifter" class="gt_row gt_center">7</td></tr>
    <tr><th id="grand_summary_stub_1" scope="row" class="gt_row gt_left gt_stub gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row">Variance</th>
<td headers="grand_summary_stub_1 Alien-Human" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">5.27</td>
<td headers="grand_summary_stub_1 Alien-Mannequin" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">4.29</td>
<td headers="grand_summary_stub_1 Alien-Shapeshifter" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">25.70</td>
<td headers="grand_summary_stub_1 Human-Mannequin" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">11.55</td>
<td headers="grand_summary_stub_1 Human-Shapeshifter" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">14.29</td>
<td headers="grand_summary_stub_1 Mannequin-Shapeshifter" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">26.55</td></tr>
  </tbody>


</table>
</div>
]
---
# The assumption of sphericity, `$\epsilon$`

* What is it?

+ The differences between pairs of groups should have equal variances

* How is it estimated?

  + Greenhouse-Geisser estimate, `$\hat{\epsilon}$`

  + Huynh-Feldt estimate, `$\tilde{\epsilon}$`

  + If `$\epsilon = 1$`, sphericity is perfect

  + If `$\epsilon < 1$`, sphericity is violated (to some degree)

---
# What to do about sphericity?

* (<svg style="height: 1em; top:.04em; position: relative; fill: #136CB9;" viewBox="0 0 581 512"><path d="M581 226.6C581 119.1 450.9 32 290.5 32S0 119.1 0 226.6C0 322.4 103.3 402 239.4 418.1V480h99.1v-61.5c24.3-2.7 47.6-7.4 69.4-13.9L448 480h112l-67.4-113.7c54.5-35.4 88.4-84.9 88.4-139.7zm-466.8 14.5c0-73.5 98.9-133 220.8-133s211.9 40.7 211.9 133c0 50.1-26.5 85-70.3 106.4-2.4-1.6-4.7-2.9-6.4-3.7-10.2-5.2-27.8-10.5-27.8-10.5s86.6-6.4 86.6-92.7-90.6-87.9-90.6-87.9h-199V361c-74.1-21.5-125.2-67.1-125.2-119.9zm225.1 38.3v-55.6c57.8 0 87.8-6.8 87.8 27.3 0 36.5-38.2 28.3-87.8 28.3zm-.9 72.5H365c10.8 0 18.9 11.7 24 19.2-16.1 1.9-33 2.8-50.6 2.9v-22.1z"/></svg> can) multiply *df* by these estimates to correct for the effect of sphericity

* Given that `$\epsilon$` quantifies the deviation from perfect sphericity, we correct the *df* by the degree to which spehercity is violated

* *df* get smaller making it harder for the test statistic to be significant

* Routinely apply the G-G correction and forget about sphericity

---
background-image: none
background-color: #000000
class: no-scribble

<video width="100%" height="100%" controls id="my_video">
    <source src="media/sphericity_song.mp4" type="video/mp4">
</video>
---
# Fitting the model

+ Specify the repeated measures with `(rm_predictors|id_var)`

  + Automatically sets contrasts

  + Built in interaction plot with `afex_plot()`

  + But ... no parameter estimates, diagnostic plots, or robust methods

```r
sniff_afx <- afex::aov_4(vocalizations ~ entity + (entity|dog_name), data = sniff_tib)
```

]

+ A trickier option (we don't teach you it)

  + Manually set contrasts

  + Can get parameter estimates, diagnostic plots, and robust methods
]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Contrasts

If the dog training has been successful then we'd expect sniffer dogs to make more vocalizations when sniffing alien entities than non alien-entities.

* **Contrast 1**: {alien, shapeshifter} vs. {human, mannequin}

We have two 'chunks' in contrast 1 that would then need to be decomposed:

* **Contrast 2**: {alien} vs. {shapeshifter}
* **Contrast 3**: {human} vs. {mannequin}

Using the rules for contrast coding we'd get the codes in Table 4:

.center[
<table>
<caption>Table 4: Contrast coding for the entity variable</caption>
 <thead>
  <tr>
   <th style="text-align:left;"> Group </th>
   <th style="text-align:left;"> Contrast 1 </th>
   <th style="text-align:left;"> Contrast 2 </th>
   <th style="text-align:left;"> Contrast 3 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Alien </td>
   <td style="text-align:left;"> 1/2 </td>
   <td style="text-align:left;"> 1/2 </td>
   <td style="text-align:left;"> 0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Human </td>
   <td style="text-align:left;"> -1/2 </td>
   <td style="text-align:left;"> 0 </td>
   <td style="text-align:left;"> 1/2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Mannequin </td>
   <td style="text-align:left;"> -1/2 </td>
   <td style="text-align:left;"> 0 </td>
   <td style="text-align:left;"> -1/2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Shapeshifter </td>
   <td style="text-align:left;"> 1/2 </td>
   <td style="text-align:left;"> -1/2 </td>
   <td style="text-align:left;"> 0 </td>
  </tr>
</tbody>
</table>
]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Overall model summary

```r
sniff_afx <- afex::aov_4(vocalizations ~ entity + (entity|dog_name), data = sniff_tib)
sniff_afx
```

```
## Anova Table (Type 3 tests)
##
## Response: vocalizations
##   Effect          df   MSE      F  ges p.value
## 1 entity 1.60, 11.19 13.71 3.79 + .327    .063
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '+' 0.1 ' ' 1
##
## Sphericity correction method: GG
```

</br>

???

Note we use generalized eta-squared, which is better for repeated measures designs.

---
class: center

# Interpretation

![](repeated_measures_files/figure-html/unnamed-chunk-8-1.png)

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Contrasts

```r
sniff_emm <- emmeans::emmeans(sniff_afx, ~entity, model = "multivariate")
sniff_cons <- list(
  aliens_vs_non = c(1/2, -1/2, -1/2, 1/2),
  alien_vs_shape = c(1/2, 0, 0, -1/2),
  human_vs_manquin = c(0, 1/2, -1/2, 0)
  )
emmeans::contrast(sniff_emm, sniff_cons)
```

</br>

---
# Post hoc tests

```r
pairs(sniff_emm, adjust = "holm")
```

</br>

<table>
 <thead>
  <tr>
   <th style="text-align:left;"> contrast </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> SE </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> t.ratio </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Alien - Human </td>
   <td style="text-align:right;"> 3.875 </td>
   <td style="text-align:right;"> 0.811 </td>
   <td style="text-align:right;"> 7 </td>
   <td style="text-align:right;"> 4.775 </td>
   <td style="text-align:right;"> 0.010 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Alien - Mannequin </td>
   <td style="text-align:right;"> 4.000 </td>
   <td style="text-align:right;"> 0.732 </td>
   <td style="text-align:right;"> 7 </td>
   <td style="text-align:right;"> 5.465 </td>
   <td style="text-align:right;"> 0.006 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Alien - Shapeshifter </td>
   <td style="text-align:right;"> 2.375 </td>
   <td style="text-align:right;"> 1.792 </td>
   <td style="text-align:right;"> 7 </td>
   <td style="text-align:right;"> 1.325 </td>
   <td style="text-align:right;"> 0.907 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Human - Mannequin </td>
   <td style="text-align:right;"> 0.125 </td>
   <td style="text-align:right;"> 1.202 </td>
   <td style="text-align:right;"> 7 </td>
   <td style="text-align:right;"> 0.104 </td>
   <td style="text-align:right;"> 0.920 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Human - Shapeshifter </td>
   <td style="text-align:right;"> -1.500 </td>
   <td style="text-align:right;"> 1.336 </td>
   <td style="text-align:right;"> 7 </td>
   <td style="text-align:right;"> -1.122 </td>
   <td style="text-align:right;"> 0.907 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Mannequin - Shapeshifter </td>
   <td style="text-align:right;"> -1.625 </td>
   <td style="text-align:right;"> 1.822 </td>
   <td style="text-align:right;"> 7 </td>
   <td style="text-align:right;"> -0.892 </td>
   <td style="text-align:right;"> 0.907 </td>
  </tr>
</tbody>
</table>

---
# Robust models

```r
WRS2::rmanova(
y = sniff_tib$vocalizations,
groups = sniff_tib$entity,
blocks = sniff_tib$dog_name
)
```

```
## Call:
## WRS2::rmanova(y = sniff_tib$vocalizations, groups = sniff_tib$entity,
##     blocks = sniff_tib$dog_name)
##
## Test statistic: F = 2.7528
## Degrees of freedom 1: 2.31
## Degrees of freedom 2: 11.55
## p-value: 0.1002
```

---
# Robust *post hoc* tests

```r
WRS2::rmmcp(
  y = sniff_tib$vocalizations,
  groups = sniff_tib$entity,
  blocks = sniff_tib$dog_name
  )
```

```
## Call:
## WRS2::rmmcp(y = sniff_tib$vocalizations, groups = sniff_tib$entity,
##     blocks = sniff_tib$dog_name)
##
##                              psihat  ci.lower ci.upper p.value  p.crit   sig
## Alien vs. Human             3.66667  -0.48300  7.81633 0.01360 0.01020 FALSE
## Alien vs. Mannequin         4.00000  -0.35728  8.35728 0.01172 0.00851 FALSE
## Alien vs. Shapeshifter      2.00000  -8.09920 12.09920 0.44148 0.01690 FALSE
## Human vs. Mannequin         0.00000  -5.38802  5.38802 1.00000 0.05000 FALSE
## Human vs. Shapeshifter     -1.83333  -9.23266  5.56599 0.34371 0.01270 FALSE
## Mannequin vs. Shapeshifter -2.00000 -12.54827  8.54827 0.46001 0.02500 FALSE
```

---

---
background-image: url("media/daze_mid_still.jpg")
background-size: cover
class: no-scribble

???

**Hora**: Daze, you're back. Good news. The sniffer dogs did well, although the result was not significant, the sample was small and the effect sizes look strong. I'm optimistic.

---
background-image: none
background-color: #000000
class: no-scribble

???
**Daze**: We have intercepted another transmission.
**Hora**: Oh no, show me.
---
background-image: none
background-color: #000000
class: no-scribble

???

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: I told you, not good news ... they don't like dogs! What kind of evil creatures are we dealing with?

**Hora**: Masking with scents? Interesting. Let's do some more research.

---
class: center, middle, title-slide, inverse
layout: false

## Scenting a victory ... factorial repeated measures designs

---
# Can scents distract the sniffer dogs?

.pull-left[
* 50 sniffer dogs
  + Participated in all conditions
  + Sniffed 9 different 'things'
* Predictor: **entity**
  + **Human**: the dog sniffs a human
  + **Shapeshifter** the dog sniffs an alien in humanoid form
  + **Alien** the dog sniffs an alien in lizard form
* Predictor: **scent_mask**
 + The entity had no masking scent (**none**)
 + The entity was smeared with **human** pheromones
 + The entity was smeared with **fox** pheromones
* Outcome:
  + Number of vocalizations during each 1 minute sniff
]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# The model

* Let's simplify things by ignoring the fact that **entity** and **scent_mask** will be represented by two dummy variables each (and the interaction by 4!)
* We can model individual differences in all parameters

.center[.eq_lrge[.ong[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = (\hat{b}_{0} + \hat{u}_{0j}) + (\hat{b}_{1j} +\hat{u}_{1j})\text{entity}_{ij} + (\hat{b}_{2j} + \hat{u}_{2j})\text{scent}_{ij} + \\
&\quad  \  (\hat{b}_{3j}+\hat{u}_{3j})(\text{entity}_{ij}\times\text{scent}_{ij}) + e_{ij}\\
\hat{u}_{0j} &\sim N(0, \sigma^2_{u_0})\\
\hat{u}_{1j} &\sim N(0, \sigma^2_{u_1})\\
\hat{u}_{2j} &\sim N(0, \sigma^2_{u_2})\\
\hat{u}_{3j} &\sim N(0, \sigma^2_{u_3})\\
\end{aligned}`
$$
]]]

* This model may be too complex to fit
* The simplest version of the repeated measures model instead treats the effects of predictor variables as fixed, but acknowledges that dogs, overall, will vary in their vocalizations:

.center[.eq_lrge[.ong[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = (\hat{b}_{0j} + \hat{u}_{0j}) + \hat{b}_{1}\text{entity}_{ij} + \hat{b}_{2}\text{scent}_{ij} + \hat{b}_{3}(\text{entity}_{ij}\times\text{scent}_{ij}) + e_{ij}\\
\hat{u}_{0j} &\sim N(0, \sigma^2_{u_0})\\
\end{aligned}`
$$
]]]

---
class: center
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

# The data

<div class="datatables html-widget html-fill-item-overflow-hidden html-fill-item" id="htmlwidget-458eef44ef85ac9d0f50" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-458eef44ef85ac9d0f50">{"x":{"filter":"none","vertical":false,"caption":"<caption>Table 7: Data for the scent masking example<\/caption>","data":[["1","2","3","4","5","6","7","8","9","10","11","12","13","14","15","16","17","18","19","20","21","22","23","24","25","26","27","28","29","30","31","32","33","34","35","36","37","38","39","40","41","42","43","44","45","46","47","48","49","50","51","52","53","54","55","56","57","58","59","60","61","62","63","64","65","66","67","68","69","70","71","72","73","74","75","76","77","78","79","80","81","82","83","84","85","86","87","88","89","90","91","92","93","94","95","96","97","98","99","100","101","102","103","104","105","106","107","108","109","110","111","112","113","114","115","116","117","118","119","120","121","122","123","124","125","126","127","128","129","130","131","132","133","134","135","136","137","138","139","140","141","142","143","144","145","146","147","148","149","150","151","152","153","154","155","156","157","158","159","160","161","162","163","164","165","166","167","168","169","170","171","172","173","174","175","176","177","178","179","180","181","182","183","184","185","186","187","188","189","190","191","192","193","194","195","196","197","198","199","200","201","202","203","204","205","206","207","208","209","210","211","212","213","214","215","216","217","218","219","220","221","222","223","224","225","226","227","228","229","230","231","232","233","234","235","236","237","238","239","240","241","242","243","244","245","246","247","248","249","250","251","252","253","254","255","256","257","258","259","260","261","262","263","264","265","266","267","268","269","270","271","272","273","274","275","276","277","278","279","280","281","282","283","284","285","286","287","288","289","290","291","292","293","294","295","296","297","298","299","300","301","302","303","304","305","306","307","308","309","310","311","312","313","314","315","316","317","318","319","320","321","322","323","324","325","326","327","328","329","330","331","332","333","334","335","336","337","338","339","340","341","342","343","344","345","346","347","348","349","350","351","352","353","354","355","356","357","358","359","360","361","362","363","364","365","366","367","368","369","370","371","372","373","374","375","376","377","378","379","380","381","382","383","384","385","386","387","388","389","390","391","392","393","394","395","396","397","398","399","400","401","402","403","404","405","406","407","408","409","410","411","412","413","414","415","416","417","418","419","420","421","422","423","424","425","426","427","428","429","430","431","432","433","434","435","436","437","438","439","440","441","442","443","444","445","446","447","448","449","450"],["56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","682h3","682h3","682h3","682h3","682h3","682h3","682h3","682h3","682h3","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","ik011","ik011","ik011","ik011","ik011","ik011","ik011","ik011","ik011","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","629m5","629m5","629m5","629m5","629m5","629m5","629m5","629m5","629m5","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","7q328","7q328","7q328","7q328","7q328","7q328","7q328","7q328","7q328","9t256","9t256","9t256","9t256","9t256","9t256","9t256","9t256","9t256","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","97ali","97ali","97ali","97ali","97ali","97ali","97ali","97ali","97ali","881d7","881d7","881d7","881d7","881d7","881d7","881d7","881d7","881d7","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","y193g","y193g","y193g","y193g","y193g","y193g","y193g","y193g","y193g","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","4g179","4g179","4g179","4g179","4g179","4g179","4g179","4g179","4g179","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","jt877","jt877","jt877","jt877","jt877","jt877","jt877","jt877","jt877","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67"],["Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human"],["Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None"],[7,9,8,11,6,8,3,3,3,8,8,10,10,7,10,6,4,3,13,5,5,4,4,7,8,2,2,7,10,12,9,6,12,8,2,2,11,9,11,10,9,7,7,5,2,6,9,11,8,9,11,5,4,2,8,7,11,6,4,11,9,4,3,8,15,13,13,11,15,9,7,5,12,15,13,11,11,12,10,3,4,7,7,13,8,9,6,5,3,3,8,11,10,6,8,6,7,4,3,8,9,7,7,6,7,7,3,3,9,9,11,8,7,13,9,5,3,14,15,15,11,12,10,10,4,4,13,11,14,10,11,11,5,5,4,5,7,9,6,9,8,5,4,2,10,9,12,9,8,7,7,5,4,12,10,16,11,9,13,8,5,3,7,8,10,9,6,9,5,4,2,12,13,15,9,9,16,7,5,3,8,11,9,8,9,11,7,3,1,9,9,12,8,11,10,6,3,4,8,7,9,10,12,9,9,3,3,14,11,18,14,8,13,8,6,3,10,9,11,10,9,10,7,8,3,5,3,11,9,5,9,7,5,3,11,13,12,12,11,12,7,6,3,12,12,15,7,8,9,10,4,3,6,10,13,7,8,8,5,2,3,9,7,8,9,9,6,4,3,2,13,19,19,16,14,16,9,5,6,7,9,12,7,9,12,8,5,4,10,12,12,7,9,11,8,3,4,9,13,13,11,8,10,7,7,3,10,10,14,8,8,11,9,4,2,11,10,11,8,16,14,9,4,5,9,9,13,11,8,12,8,5,3,9,11,16,11,9,13,9,6,4,10,7,10,6,7,7,6,4,3,8,8,10,4,7,12,5,1,2,12,12,17,12,14,13,11,5,4,11,13,17,7,10,13,11,5,5,9,10,8,6,8,12,7,3,2,7,9,8,8,10,10,4,3,1,10,9,17,6,8,5,7,6,2,5,8,15,7,4,7,3,2,1,5,10,14,9,11,14,8,4,2,7,9,9,11,9,8,10,3,2,11,11,13,10,11,15,10,5,4,9,12,11,7,8,10,7,4,2]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>dog_id<\/th>\n      <th>entity<\/th>\n      <th>scent_mask<\/th>\n      <th>vocalizations<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"dom":"tp","columnDefs":[{"className":"dt-center","targets":[1,2,3]},{"className":"dt-right","targets":4},{"orderable":false,"targets":0}],"pageLength":10,"order":[],"autoWidth":false,"orderClasses":false},"selection":{"mode":"multiple","selected":null,"target":"row","selectable":null}},"evals":[],"jsHooks":[]}</script>

---
class: center

# The data

![](repeated_measures_files/figure-html/unnamed-chunk-17-1.png)

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Overall model summary

```r
scent_afx <- afex::aov_4(vocalizations ~ entity*scent_mask + (entity*scent_mask|dog_id), data = scent_tib)
scent_afx
```

```
## Anova Table (Type 3 tests)
##
## Response: vocalizations
##              Effect           df  MSE          F  ges p.value
## 1            entity  1.98, 96.88 4.23 315.95 *** .522   <.001
## 2        scent_mask  1.95, 95.75 2.71  12.91 *** .027   <.001
## 3 entity:scent_mask 3.66, 179.27 3.37  60.26 *** .235   <.001
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '+' 0.1 ' ' 1
##
## Sphericity correction method: GG
```

**"It is never sensible to interpret main effects in the presence of a significant interaction effect."**

]]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Overall model summary

---

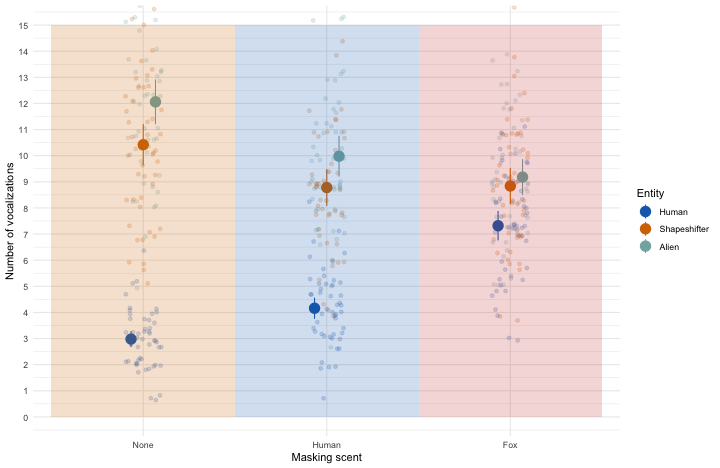

# Simple effects analysis
## The effect of entity within type of scent

```r
emmeans::joint_tests(scent_afx, "scent_mask")
```

```
## scent_mask = None:
##  model term df1 df2 F.ratio p.value
##  entity       2  49 391.102  <.0001
##
## scent_mask = Human:
##  model term df1 df2 F.ratio p.value
##  entity       2  49 133.309  <.0001
##
## scent_mask = Fox:
##  model term df1 df2 F.ratio p.value
##  entity       2  49  19.099  <.0001
```

* The effect of entity is significant for all three scents.

* That's not a helpful finding.

---
# Simple effects analysis
## The effect of scent used within entity

```r
emmeans::joint_tests(scent_afx, "entity")
```

```
## entity = Human:
##  model term df1 df2 F.ratio p.value
##  scent_mask   2  49 166.937  <.0001
##
## entity = Shapeshifter:
##  model term df1 df2 F.ratio p.value
##  scent_mask   2  49  10.984  0.0001
##
## entity = Alien:
##  model term df1 df2 F.ratio p.value
##  scent_mask   2  49  24.969  <.0001
```

* The effect of the type of scent worn is significant in all three entities.

* This is also not a helpful finding!

---
# Post hoc tests across an interaction

![](repeated_measures_files/figure-html/unnamed-chunk-22-1.png)

???

If we compare all 9 means against all other means we'll end up with 36 tests, so we might want to focus in on particular tests. For example, what are the differences between entities within each scent. This yields 9 tests (1/4 of what we'd otherwise have).

---
# Post hoc tests across an interaction

```r
int_emm <- emmeans::emmeans(scent_afx, ~entity|scent_mask, method = "multivariate")
pairs(int_emm, adjust = "holm")
```

```
## scent_mask = None:
##  contrast             estimate    SE df t.ratio p.value
##  Human - Shapeshifter    -7.44 0.350 49 -21.250  <.0001
##  Human - Alien           -9.08 0.382 49 -23.764  <.0001
##  Shapeshifter - Alien    -1.64 0.433 49  -3.787  0.0004
##
## scent_mask = Human:
##  contrast             estimate    SE df t.ratio p.value
##  Human - Shapeshifter    -4.62 0.354 49 -13.035  <.0001
##  Human - Alien           -5.82 0.377 49 -15.456  <.0001
##  Shapeshifter - Alien    -1.20 0.343 49  -3.500  0.0010
##
## scent_mask = Fox:
##  contrast             estimate    SE df t.ratio p.value
##  Human - Shapeshifter    -1.52 0.378 49  -4.019  0.0004
##  Human - Alien           -1.86 0.318 49  -5.846  <.0001
##  Shapeshifter - Alien    -0.34 0.394 49  -0.862  0.3929
##
## P value adjustment: holm method for 3 tests
```

---
# Post hoc tests across an interaction

---
# Diagnostic plots and robust models

]

???

You can't do them so here's a picture of a spaniel looking sad

---
background-image: none
background-color: #000000
class: no-scribble

---
# Summary

* Repeated measures designs violate the assumption of independent errors

* Sphericity

+ The degree to which the variances of differences between pairs of conditions are similar

  + Apply the Greenhouse-Geisser correctiona nd forget about it

* Interpret *F*-statistics as you would for other models

* Follow-up tests

  + Simple effect analysis

  + Selective *post hoc* tests

  + Contrasts (but for factorial designs goes beyond what we teach)
