Repeated measures designs

# Repeated measures and the GLM
## Professor Andy Field

<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/twitter_60.png">
  <span style="line-height:40px;">@profandyfield</span>
</div>
<div>
  <img style="vertical-align:middle; width:60px" src="media/youtube.png">
  <span style="line-height:40px;">www.youtube.com/user/ProfAndyField/</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/ds_com_fav.png">
  <span style="line-height:40px;">www.discoveringstatistics.com</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/milton_grey_fav.png">
  <span style="line-height:40px;">www.milton-the-cat.rocks</span>
</div>
<div>
  <img style="vertical-align:middle; width:30px; height:30px" src="media/discovr_fav.png">
  <span style="line-height:40px;">www.discovr.rocks</span>
</div>

???

h or ?: Toggle the help window
j: Jump to next slide
k: Jump to previous slide
b: Toggle blackout mode
m: Toggle mirrored mode.
p: Toggle PresenterMode
f: Toggle Fullscreen
t: Reset presentation timer
<number> + <Return>: Jump to slide <number>
c: Create a clone presentation on a new window

class: inverse
background-image: url("media/spaceship_neon_ppt_hex.jpg")
background-size: cover

---

???

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: Hora Stet, I'm so glad to see you.

**Hora Stet**: Daze? Where have you been?

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: On a long, dangerous, heroic mission, where I was very heroic. I have intercepted a transmission from Lazinc Durt, leader of the inane cult. It's not good news.

**Hora**: What is it?

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: Let me show you ....

---
background-image: none
background-color: #000000
class: no-scribble

???

**Hora Stet**: Oh, that is bad ....

**Daze**: Hora, how can we stop them?

**Hora Stet**: We've been experimenting with training sniffer dogs to detect aliens but we need more research. Can you get me some sniffer dogs?

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: We have the best spaniels in the land, but we could only find 8 of them.

**Hora Stet**: Hmmm, that's not many. I'm nopt sure whjat I can do with 8 spaniels. I may need to consult a higher intelligence.

---
background-image: none
background-color: #000000
class: no-scribble

---

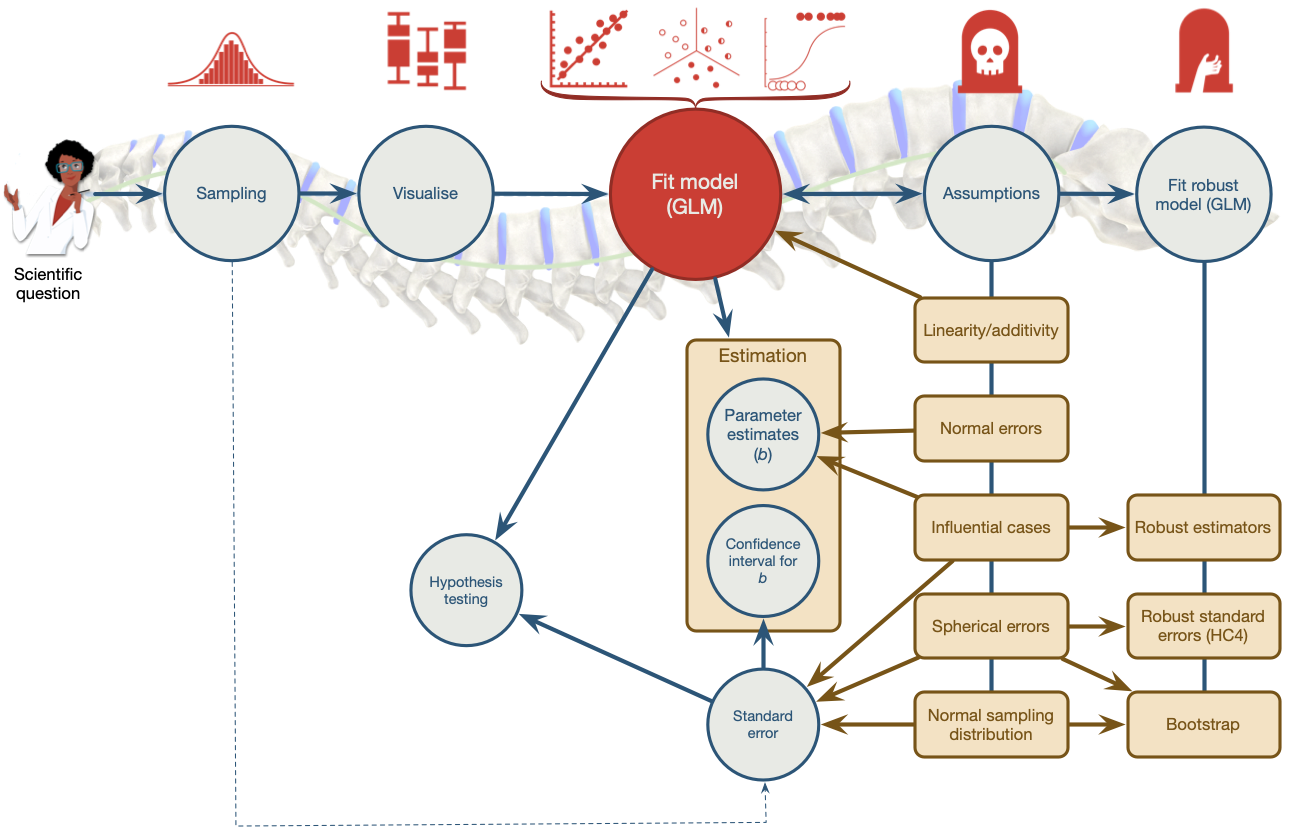

![:scale 83%](media/spine_content_map.png)
???

We've seen this map of the process of fitting models before

---
class: center

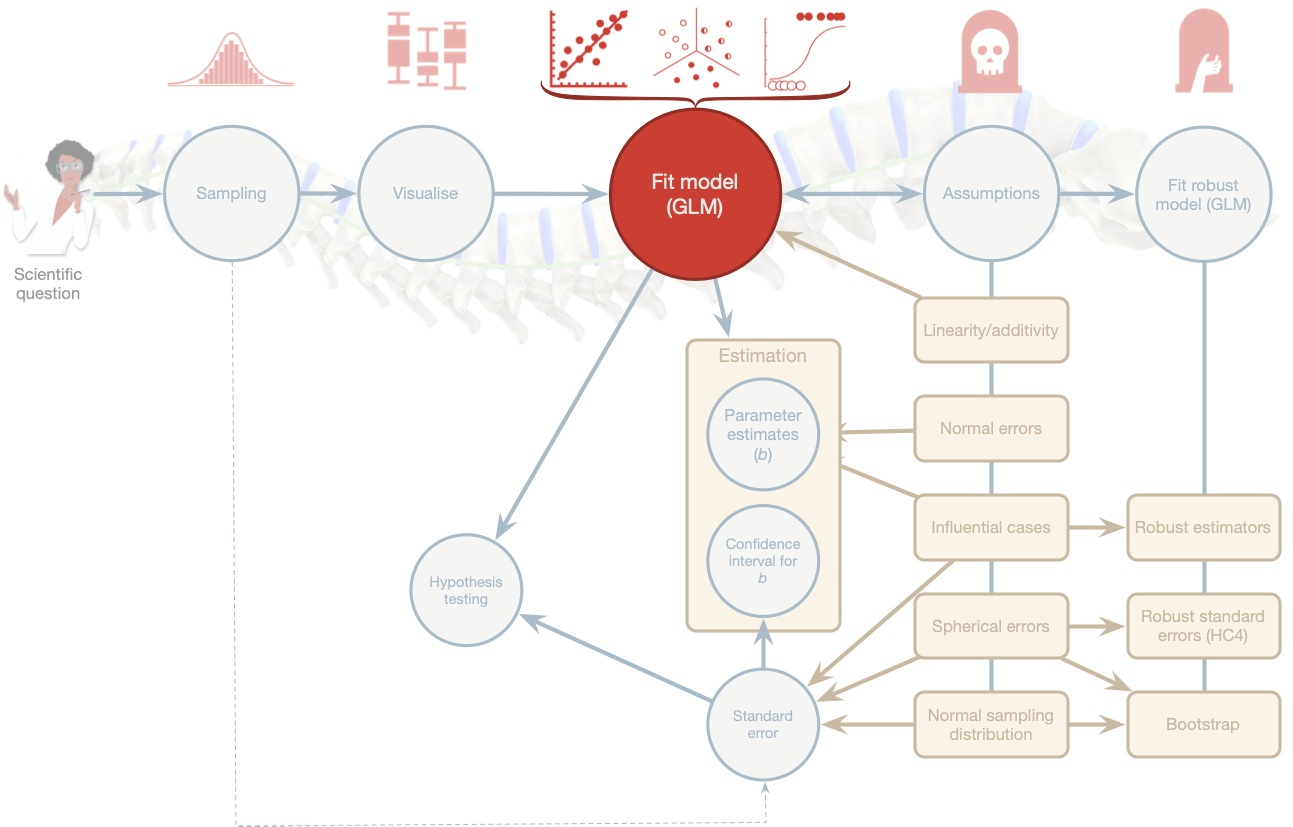

![:scale 83%](media/spine_lec_04.png)

???

Today we focus back on the model itself to look at the form of the model we're fitting. The faded stuff still applies though - we'll look at bias, robust models, and of course samples and estimation and so on. But they are the same as for other models, what is different is the form of the model we're fitting.

---
.center[

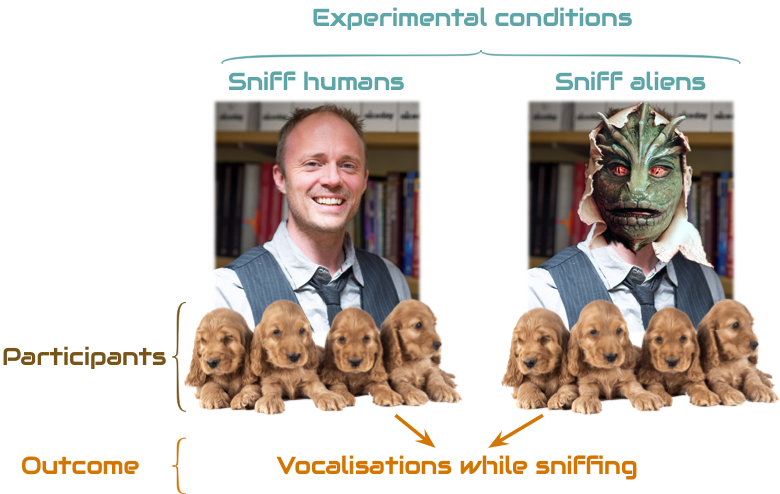

![:scale 65%](media/rm_design_sniffing_puppies.png)
]

* **Systematic variance**: created by our manipulation
* **Unsystematic variance**: variance created by unknown factors

???

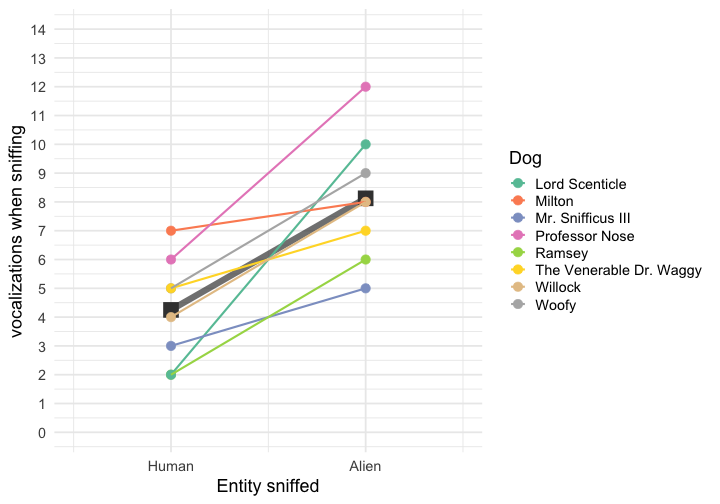

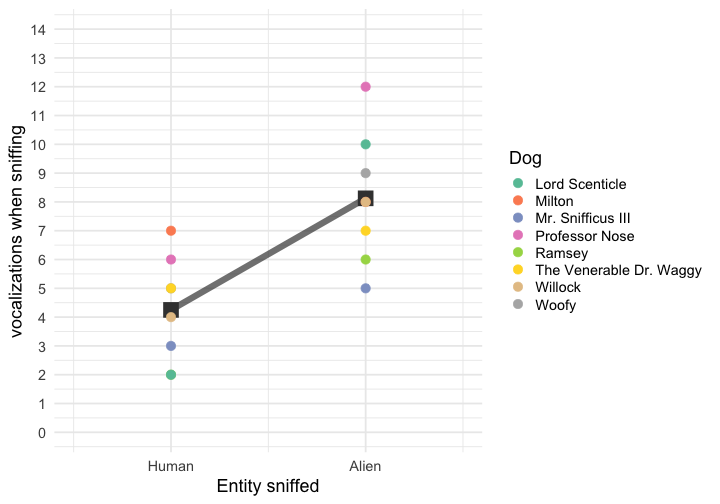

If we test the same puppies while sniffing humans at two points in time, we’d expect them to get similar scores (other things being equal their vocalizations shouldn't change much). A lot of unsystematic variance is removed (e.g. how much they naturally vocalise, how sensitive their nose is etc.).

Like an independent design, in a repeated measures design, differences between the two conditions can be caused by one of two things: (1) the manipulation that was carried out on the participants (whether the puppies sniffed aliens or humans), or (2) other factors that we couldn’t account for (time of day, mood, excitability). The latter factor in is likely to create much less random variation in a RM design because many sources of possible variation are controlled.

As such, there are always two sources of variation:

Systematic variation: This variation is due to the experimenter doing something to all of the participants in one condition but not in the other condition.

Unsystematic variation: This variation results from random factors that could not be controlled.

Like independent designs, repeated measures designs still compare the amount of systematic variance to the amount of unsystematic variance. In other words it compares the amount of variation caused by the experiment to the amount of natural variation (created by uncontrolled variables). However, the source of the systematic variance is different (I.e. it comes from within participants rather than between).

---

# Benefits of repeated measures designs

* Sensitivity
    + Unsystematic variance is reduced
    + More sensitive to experimental effects

* Economy
    + Less participants are needed
    + But, be careful of fatigue

???
Sensitivity
The effect of our experimental manipulation is likely to be more apparent in a repeated measures design than in a between-group design because in the former unsystematic variation can be caused only by differences in the way in which someone behaves at different times. In between-group designs we have differences in innate ability contributing to the unsystematic variation. Therefore, this error variation will almost always be much larger than if the same participants had been used. When we look at the effect of our experimental manipulation, it is always against a background of ‘noise’ caused by random, uncontrollable differences between our conditions. In a repeated measures design this ‘noise’ is kept to a minimum and so the effect of the experiment is more likely to show up. This means that repeated measures designs have more power to detect effects that genuinely exist than independent designs.
Economy
Repeated measures designs make more efficient use of participants and so save time and money. However, although in theory you could have a participant take part in many different conditions, they do tend to get very bored and frustrated in long experiments. Therefore, it’s always worth trying to bear in mind what your participants will have to endure before designing an experiment with 250 different experimental conditions

---

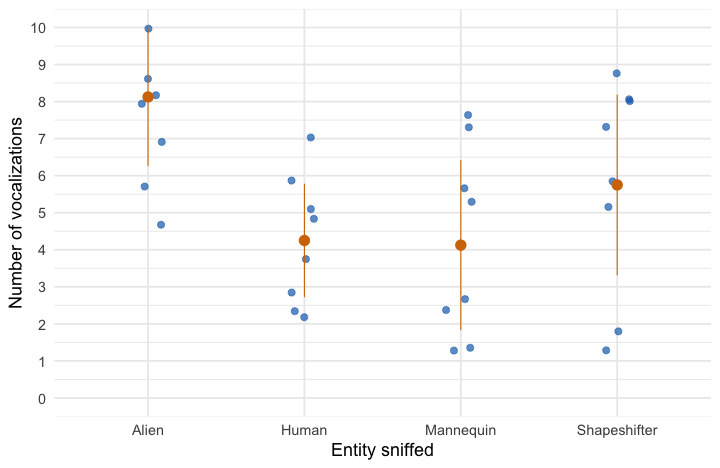

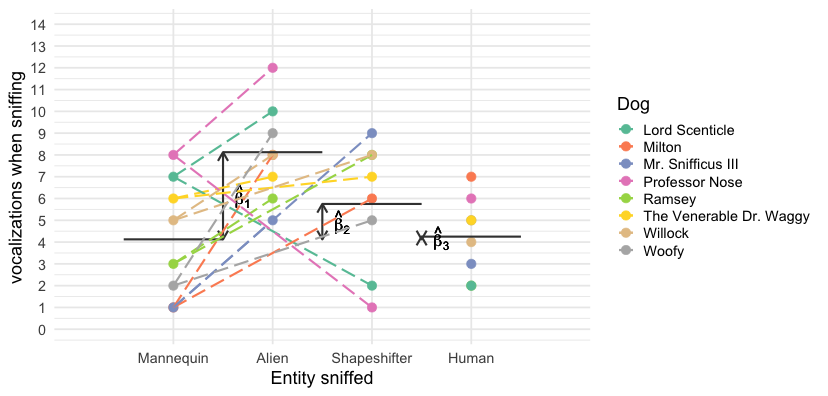

# Can puppies sniff out aliens?

* Outcome = vocalizations during 1 min sniffing (**vocalizations**)

* Predictor: type of entity being sniffed (**entity**)
      - Alien (not in humanoid form)
      - Human (control for alien vs human)
      - Mannequin (control for humanoid form)
      - Shapeshifter (alien in humanoid form)

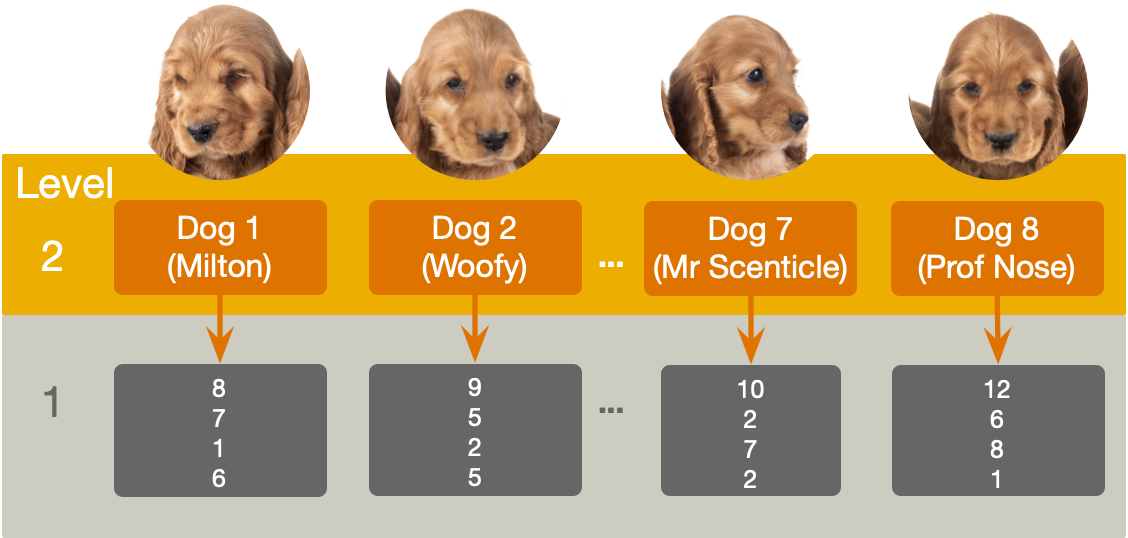

* **dog_name** indicates the name of the dog (*N* = 8)

???

Imagine a scientist wanted to look at

---
# The data

.center[.whitebox[
<div id="meesbxzrlc" style="padding-left:0px;padding-right:0px;padding-top:10px;padding-bottom:10px;overflow-x:auto;overflow-y:auto;width:auto;height:auto;">
<style>#meesbxzrlc table {
  font-family: system-ui, 'Segoe UI', Roboto, Helvetica, Arial, sans-serif, 'Apple Color Emoji', 'Segoe UI Emoji', 'Segoe UI Symbol', 'Noto Color Emoji';
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
}

#meesbxzrlc thead, #meesbxzrlc tbody, #meesbxzrlc tfoot, #meesbxzrlc tr, #meesbxzrlc td, #meesbxzrlc th {
  border-style: none;
}

#meesbxzrlc p {
  margin: 0;
  padding: 0;
}

#meesbxzrlc .gt_table {
  display: table;
  border-collapse: collapse;
  line-height: normal;
  margin-left: auto;
  margin-right: auto;
  color: #333333;
  font-size: 16px;
  font-weight: normal;
  font-style: normal;
  background-color: #FFFFFF;
  width: auto;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #A8A8A8;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #A8A8A8;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
}

#meesbxzrlc .gt_caption {
  padding-top: 4px;
  padding-bottom: 4px;
}

#meesbxzrlc .gt_title {
  color: #333333;
  font-size: 125%;
  font-weight: initial;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-color: #FFFFFF;
  border-bottom-width: 0;
}

#meesbxzrlc .gt_subtitle {
  color: #333333;
  font-size: 85%;
  font-weight: initial;
  padding-top: 3px;
  padding-bottom: 5px;
  padding-left: 5px;
  padding-right: 5px;
  border-top-color: #FFFFFF;
  border-top-width: 0;
}

#meesbxzrlc .gt_heading {
  background-color: #FFFFFF;
  text-align: center;
  border-bottom-color: #FFFFFF;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
}

#meesbxzrlc .gt_bottom_border {
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#meesbxzrlc .gt_col_headings {
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
}

#meesbxzrlc .gt_col_heading {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: normal;
  text-transform: inherit;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: bottom;
  padding-top: 5px;
  padding-bottom: 6px;
  padding-left: 5px;
  padding-right: 5px;
  overflow-x: hidden;
}

#meesbxzrlc .gt_column_spanner_outer {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: normal;
  text-transform: inherit;
  padding-top: 0;
  padding-bottom: 0;
  padding-left: 4px;
  padding-right: 4px;
}

#meesbxzrlc .gt_column_spanner_outer:first-child {
  padding-left: 0;
}

#meesbxzrlc .gt_column_spanner_outer:last-child {
  padding-right: 0;
}

#meesbxzrlc .gt_column_spanner {
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  vertical-align: bottom;
  padding-top: 5px;
  padding-bottom: 5px;
  overflow-x: hidden;
  display: inline-block;
  width: 100%;
}

#meesbxzrlc .gt_spanner_row {
  border-bottom-style: hidden;
}

#meesbxzrlc .gt_group_heading {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: middle;
  text-align: left;
}

#meesbxzrlc .gt_empty_group_heading {
  padding: 0.5px;
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  vertical-align: middle;
}

#meesbxzrlc .gt_from_md > :first-child {
  margin-top: 0;
}

#meesbxzrlc .gt_from_md > :last-child {
  margin-bottom: 0;
}

#meesbxzrlc .gt_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  margin: 10px;
  border-top-style: solid;
  border-top-width: 1px;
  border-top-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 1px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 1px;
  border-right-color: #D3D3D3;
  vertical-align: middle;
  overflow-x: hidden;
}

#meesbxzrlc .gt_stub {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-right-style: solid;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  padding-left: 5px;
  padding-right: 5px;
}

#meesbxzrlc .gt_stub_row_group {
  color: #333333;
  background-color: #FFFFFF;
  font-size: 100%;
  font-weight: initial;
  text-transform: inherit;
  border-right-style: solid;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
  padding-left: 5px;
  padding-right: 5px;
  vertical-align: top;
}

#meesbxzrlc .gt_row_group_first td {
  border-top-width: 2px;
}

#meesbxzrlc .gt_row_group_first th {
  border-top-width: 2px;
}

#meesbxzrlc .gt_summary_row {
  color: #333333;
  background-color: #FFFFFF;
  text-transform: inherit;
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
}

#meesbxzrlc .gt_first_summary_row {
  border-top-style: solid;
  border-top-color: #D3D3D3;
}

#meesbxzrlc .gt_first_summary_row.thick {
  border-top-width: 2px;
}

#meesbxzrlc .gt_last_summary_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#meesbxzrlc .gt_grand_summary_row {
  color: #333333;
  background-color: #FFFFFF;
  text-transform: inherit;
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
}

#meesbxzrlc .gt_first_grand_summary_row {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-top-style: double;
  border-top-width: 6px;
  border-top-color: #D3D3D3;
}

#meesbxzrlc .gt_last_grand_summary_row_top {
  padding-top: 8px;
  padding-bottom: 8px;
  padding-left: 5px;
  padding-right: 5px;
  border-bottom-style: double;
  border-bottom-width: 6px;
  border-bottom-color: #D3D3D3;
}

#meesbxzrlc .gt_striped {
  background-color: rgba(128, 128, 128, 0.05);
}

#meesbxzrlc .gt_table_body {
  border-top-style: solid;
  border-top-width: 2px;
  border-top-color: #D3D3D3;
  border-bottom-style: solid;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
}

#meesbxzrlc .gt_footnotes {
  color: #333333;
  background-color: #FFFFFF;
  border-bottom-style: none;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
}

#meesbxzrlc .gt_footnote {
  margin: 0px;
  font-size: 90%;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
}

#meesbxzrlc .gt_sourcenotes {
  color: #333333;
  background-color: #FFFFFF;
  border-bottom-style: none;
  border-bottom-width: 2px;
  border-bottom-color: #D3D3D3;
  border-left-style: none;
  border-left-width: 2px;
  border-left-color: #D3D3D3;
  border-right-style: none;
  border-right-width: 2px;
  border-right-color: #D3D3D3;
}

#meesbxzrlc .gt_sourcenote {
  font-size: 90%;
  padding-top: 4px;
  padding-bottom: 4px;
  padding-left: 5px;
  padding-right: 5px;
}

#meesbxzrlc .gt_left {
  text-align: left;
}

#meesbxzrlc .gt_center {
  text-align: center;
}

#meesbxzrlc .gt_right {
  text-align: right;
  font-variant-numeric: tabular-nums;
}

#meesbxzrlc .gt_font_normal {
  font-weight: normal;
}

#meesbxzrlc .gt_font_bold {
  font-weight: bold;
}

#meesbxzrlc .gt_font_italic {
  font-style: italic;
}

#meesbxzrlc .gt_super {
  font-size: 65%;
}

#meesbxzrlc .gt_footnote_marks {
  font-size: 75%;
  vertical-align: 0.4em;
  position: initial;
}

#meesbxzrlc .gt_asterisk {
  font-size: 100%;
  vertical-align: 0;
}

#meesbxzrlc .gt_indent_1 {
  text-indent: 5px;
}

#meesbxzrlc .gt_indent_2 {
  text-indent: 10px;
}

#meesbxzrlc .gt_indent_3 {
  text-indent: 15px;
}

#meesbxzrlc .gt_indent_4 {
  text-indent: 20px;
}

#meesbxzrlc .gt_indent_5 {
  text-indent: 25px;
}
</style>
<table class="gt_table" data-quarto-disable-processing="false" data-quarto-bootstrap="false">
  <thead>

    <tr class="gt_col_headings">
      <th class="gt_col_heading gt_columns_bottom_border gt_left" rowspan="1" colspan="1" scope="col" id=""></th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="dog_name">dog_name</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Alien">Alien</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Human">Human</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Mannequin">Mannequin</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Shapeshifter">Shapeshifter</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Mean">Mean</th>
      <th class="gt_col_heading gt_columns_bottom_border gt_center" rowspan="1" colspan="1" scope="col" id="Variance">Variance</th>
    </tr>
  </thead>
  <tbody class="gt_table_body">
    <tr><th id="stub_1_1" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_1 dog_name" class="gt_row gt_center">Milton</td>
<td headers="stub_1_1 Alien" class="gt_row gt_center">8</td>
<td headers="stub_1_1 Human" class="gt_row gt_center">7</td>
<td headers="stub_1_1 Mannequin" class="gt_row gt_center">1</td>
<td headers="stub_1_1 Shapeshifter" class="gt_row gt_center">6</td>
<td headers="stub_1_1 Mean" class="gt_row gt_center">5.50</td>
<td headers="stub_1_1 Variance" class="gt_row gt_center">7.25</td></tr>
    <tr><th id="stub_1_2" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_2 dog_name" class="gt_row gt_center">Woofy</td>
<td headers="stub_1_2 Alien" class="gt_row gt_center">9</td>
<td headers="stub_1_2 Human" class="gt_row gt_center">5</td>
<td headers="stub_1_2 Mannequin" class="gt_row gt_center">2</td>
<td headers="stub_1_2 Shapeshifter" class="gt_row gt_center">5</td>
<td headers="stub_1_2 Mean" class="gt_row gt_center">5.25</td>
<td headers="stub_1_2 Variance" class="gt_row gt_center">6.19</td></tr>
    <tr><th id="stub_1_3" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_3 dog_name" class="gt_row gt_center">Ramsey</td>
<td headers="stub_1_3 Alien" class="gt_row gt_center">6</td>
<td headers="stub_1_3 Human" class="gt_row gt_center">2</td>
<td headers="stub_1_3 Mannequin" class="gt_row gt_center">3</td>
<td headers="stub_1_3 Shapeshifter" class="gt_row gt_center">8</td>
<td headers="stub_1_3 Mean" class="gt_row gt_center">4.75</td>
<td headers="stub_1_3 Variance" class="gt_row gt_center">5.69</td></tr>
    <tr><th id="stub_1_4" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_4 dog_name" class="gt_row gt_center">Mr. Snifficus III</td>
<td headers="stub_1_4 Alien" class="gt_row gt_center">5</td>
<td headers="stub_1_4 Human" class="gt_row gt_center">3</td>
<td headers="stub_1_4 Mannequin" class="gt_row gt_center">1</td>
<td headers="stub_1_4 Shapeshifter" class="gt_row gt_center">9</td>
<td headers="stub_1_4 Mean" class="gt_row gt_center">4.50</td>
<td headers="stub_1_4 Variance" class="gt_row gt_center">8.75</td></tr>
    <tr><th id="stub_1_5" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_5 dog_name" class="gt_row gt_center">Willock</td>
<td headers="stub_1_5 Alien" class="gt_row gt_center">8</td>
<td headers="stub_1_5 Human" class="gt_row gt_center">4</td>
<td headers="stub_1_5 Mannequin" class="gt_row gt_center">5</td>
<td headers="stub_1_5 Shapeshifter" class="gt_row gt_center">8</td>
<td headers="stub_1_5 Mean" class="gt_row gt_center">6.25</td>
<td headers="stub_1_5 Variance" class="gt_row gt_center">3.19</td></tr>
    <tr><th id="stub_1_6" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_6 dog_name" class="gt_row gt_center">The Venerable Dr. Waggy</td>
<td headers="stub_1_6 Alien" class="gt_row gt_center">7</td>
<td headers="stub_1_6 Human" class="gt_row gt_center">5</td>
<td headers="stub_1_6 Mannequin" class="gt_row gt_center">6</td>
<td headers="stub_1_6 Shapeshifter" class="gt_row gt_center">7</td>
<td headers="stub_1_6 Mean" class="gt_row gt_center">6.25</td>
<td headers="stub_1_6 Variance" class="gt_row gt_center">0.69</td></tr>
    <tr><th id="stub_1_7" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_7 dog_name" class="gt_row gt_center">Lord Scenticle</td>
<td headers="stub_1_7 Alien" class="gt_row gt_center">10</td>
<td headers="stub_1_7 Human" class="gt_row gt_center">2</td>
<td headers="stub_1_7 Mannequin" class="gt_row gt_center">7</td>
<td headers="stub_1_7 Shapeshifter" class="gt_row gt_center">2</td>
<td headers="stub_1_7 Mean" class="gt_row gt_center">5.25</td>
<td headers="stub_1_7 Variance" class="gt_row gt_center">11.69</td></tr>
    <tr><th id="stub_1_8" scope="row" class="gt_row gt_left gt_stub"></th>
<td headers="stub_1_8 dog_name" class="gt_row gt_center">Professor Nose</td>
<td headers="stub_1_8 Alien" class="gt_row gt_center">12</td>
<td headers="stub_1_8 Human" class="gt_row gt_center">6</td>
<td headers="stub_1_8 Mannequin" class="gt_row gt_center">8</td>
<td headers="stub_1_8 Shapeshifter" class="gt_row gt_center">1</td>
<td headers="stub_1_8 Mean" class="gt_row gt_center">6.75</td>
<td headers="stub_1_8 Variance" class="gt_row gt_center">15.69</td></tr>
    <tr><th id="grand_summary_stub_1" scope="row" class="gt_row gt_left gt_stub gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row"><strong>Mean</strong></th>
<td headers="grand_summary_stub_1 dog_name" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row">—</td>
<td headers="grand_summary_stub_1 Alien" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">8.12</td>
<td headers="grand_summary_stub_1 Human" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">4.25</td>
<td headers="grand_summary_stub_1 Mannequin" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">4.12</td>
<td headers="grand_summary_stub_1 Shapeshifter" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row" style="background-color: rgba(202,62,52,0.8); color: #E8EAE5; font-weight: bold;">5.75</td>
<td headers="grand_summary_stub_1 Mean" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row">—</td>
<td headers="grand_summary_stub_1 Variance" class="gt_row gt_center gt_grand_summary_row gt_first_grand_summary_row gt_last_summary_row">—</td></tr>
  </tbody>


</table>
</div>
]]

---
# The data in <svg style="height: 1em; top:.04em; position: relative; fill: #136CB9;" viewBox="0 0 581 512"><path d="M581 226.6C581 119.1 450.9 32 290.5 32S0 119.1 0 226.6C0 322.4 103.3 402 239.4 418.1V480h99.1v-61.5c24.3-2.7 47.6-7.4 69.4-13.9L448 480h112l-67.4-113.7c54.5-35.4 88.4-84.9 88.4-139.7zm-466.8 14.5c0-73.5 98.9-133 220.8-133s211.9 40.7 211.9 133c0 50.1-26.5 85-70.3 106.4-2.4-1.6-4.7-2.9-6.4-3.7-10.2-5.2-27.8-10.5-27.8-10.5s86.6-6.4 86.6-92.7-90.6-87.9-90.6-87.9h-199V361c-74.1-21.5-125.2-67.1-125.2-119.9zm225.1 38.3v-55.6c57.8 0 87.8-6.8 87.8 27.3 0 36.5-38.2 28.3-87.8 28.3zm-.9 72.5H365c10.8 0 18.9 11.7 24 19.2-16.1 1.9-33 2.8-50.6 2.9v-22.1z"/></svg>

<div class="datatables html-widget html-fill-item-overflow-hidden html-fill-item" id="htmlwidget-8d1f339649a9edc0d23f" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-8d1f339649a9edc0d23f">{"x":{"filter":"none","vertical":false,"caption":"<caption>Table 2: Data for the sniffer dog example<\/caption>","data":[["1","2","3","4","5","6","7","8","9","10","11","12","13","14","15","16","17","18","19","20","21","22","23","24","25","26","27","28","29","30","31","32"],["Milton","Milton","Milton","Milton","Woofy","Woofy","Woofy","Woofy","Ramsey","Ramsey","Ramsey","Ramsey","Mr. Snifficus III","Mr. Snifficus III","Mr. Snifficus III","Mr. Snifficus III","Willock","Willock","Willock","Willock","The Venerable Dr. Waggy","The Venerable Dr. Waggy","The Venerable Dr. Waggy","The Venerable Dr. Waggy","Lord Scenticle","Lord Scenticle","Lord Scenticle","Lord Scenticle","Professor Nose","Professor Nose","Professor Nose","Professor Nose"],["Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter","Alien","Human","Mannequin","Shapeshifter"],[8,7,1,6,9,5,2,5,6,2,3,8,5,3,1,9,8,4,5,8,7,5,6,7,10,2,7,2,12,6,8,1]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>dog_name<\/th>\n      <th>entity<\/th>\n      <th>vocalizations<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"dom":"tp","columnDefs":[{"className":"dt-center","targets":[1,2,3]},{"orderable":false,"targets":0}],"pageLength":10,"order":[],"autoWidth":false,"orderClasses":false},"selection":{"mode":"multiple","selected":null,"target":"row","selectable":null}},"evals":[],"jsHooks":[]}</script>

---
# Repeated measures and the linear model

To keep things simple, imagine a design where dogs sniff only aliens or humans (e.g., two conditions)

.pull-left[.eq_lrge[.ong[
$$
`\begin{aligned}
\text{vocalizations}_{i} & = \hat{b}_{0} + \hat{b}_{1}\text{entity}_{i} + e_{i}
\end{aligned}`
$$
]]]

.pull-right[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Entity sniffed </th>
   <th style="text-align:center;"> Dummy variable (entity) </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Alien </td>
   <td style="text-align:center;"> 1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Human </td>
   <td style="text-align:center;"> 0 </td>
  </tr>
</tbody>
</table>
]

</br>

* Scores across conditions correlate

* Violates the assumption of independent residuals (think back to the lecture on bias)
]

---
# Repeated measures: hierrachical data structure

---
# Repeated measures and the linear model

Need to adjust the model to estimate this dependency

.center[.ong[.eq_lrge[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = \hat{\beta}_{0j} + \hat{\beta}_{1j}\text{entity}_{ij}+ e_{ij}\\
\hat{\beta}_{0j} & = \hat{\beta}_0 + \hat{u}_{0j} \\
\hat{\beta}_{1j} & = \hat{\beta}_1 + \hat{u}_{1j}
\end{aligned}`
$$
]]]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

![](repeated_measures_lme_files/figure-html/unnamed-chunk-6-1.png)

.center[.ong[.eq_lrge[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = (\hat{\beta}_{0} + \hat{u}_{0j})+ \hat{\beta}_{1}\text{entity}_{ij}+ e_{ij}
\end{aligned}`
$$
]]]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

![](repeated_measures_lme_files/figure-html/unnamed-chunk-7-1.png)

.center[.ong[.eq_lrge[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = (\hat{\beta}_{0} + \hat{u}_{0j}) + (\hat{\beta}_{1} + \hat{u}_{1j})\text{entity}_{ij}+ e_{ij}
\end{aligned}`
$$
]]]
---
# Repeated measures and the linear model

Back to our actual design (with 4 conditions: Alien, Human, Mannequin, Shapeshifter)

* **entity** would be split into 3 dummy/contrast variables
* Let's just use default dummy coding

<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Entity sniffed </th>
   <th style="text-align:center;"> Dummy 1 (Alien vs. mannequin) </th>
   <th style="text-align:center;"> Dummy 2 (Shapeshifter vs. mannequin) </th>
   <th style="text-align:left;"> Dummy 3 (Human vs. mannequin) </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Alien </td>
   <td style="text-align:center;"> 1 </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:left;"> 0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Shapeshifter </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:center;"> 1 </td>
   <td style="text-align:left;"> 0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Human </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:left;"> 1 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Mannequin </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:center;"> 0 </td>
   <td style="text-align:left;"> 0 </td>
  </tr>
</tbody>
</table>

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

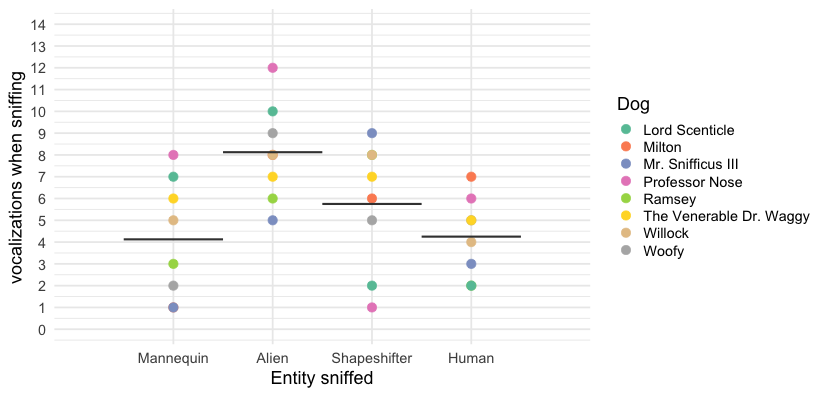

![](repeated_measures_lme_files/figure-html/unnamed-chunk-9-1.png)

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

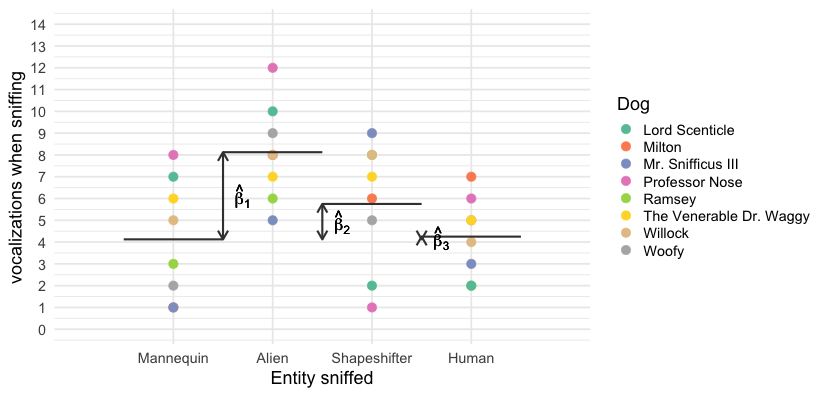

![](repeated_measures_lme_files/figure-html/unnamed-chunk-10-1.png)

.center[.ong[.eq_lrge[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = \hat{\beta}_{0j} + \hat{\beta}_{1}\text{alien vs. manq}_{ij} + \hat{\beta}_{2}\text{shape vs. manq}_{ij} + \hat{\beta}_{3}\text{human vs. manq}_{ij} + e_{ij} \\
\hat{\beta}_{0j} &=  \hat{\beta}_{0} + \hat{u}_{0j}
\end{aligned}`
$$
]]]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

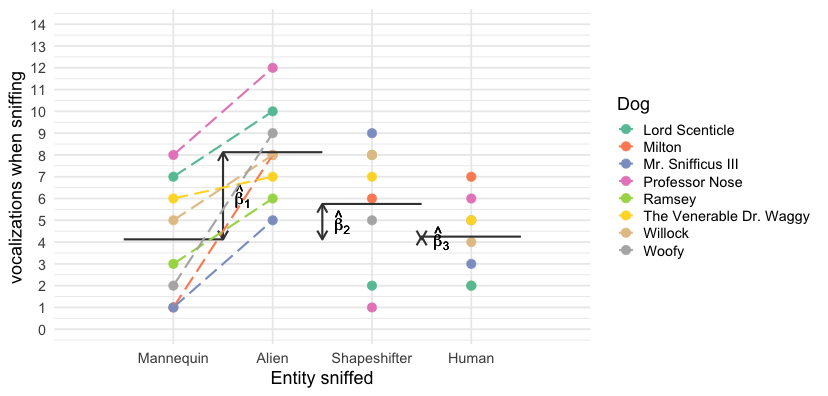

![](repeated_measures_lme_files/figure-html/unnamed-chunk-11-1.png)

.center[.ong[.eq_lrge[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = \hat{\beta}_{0j} + \hat{\beta}_{1j}\text{alien vs. manq}_{ij} + \hat{\beta}_{2j}\text{shape vs. manq}_{ij} + \hat{\beta}_{3j}\text{human vs. manq}_{ij} + e_{ij} \\
\hat{\beta}_{0j} &= \hat{\beta}_{0} + \hat{u}_{0j} \\
\hat{\beta}_{1j} &= \hat{\beta}_{1} + \hat{u}_{1j} \\
\end{aligned}`
$$
]]]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

![](repeated_measures_lme_files/figure-html/unnamed-chunk-12-1.png)

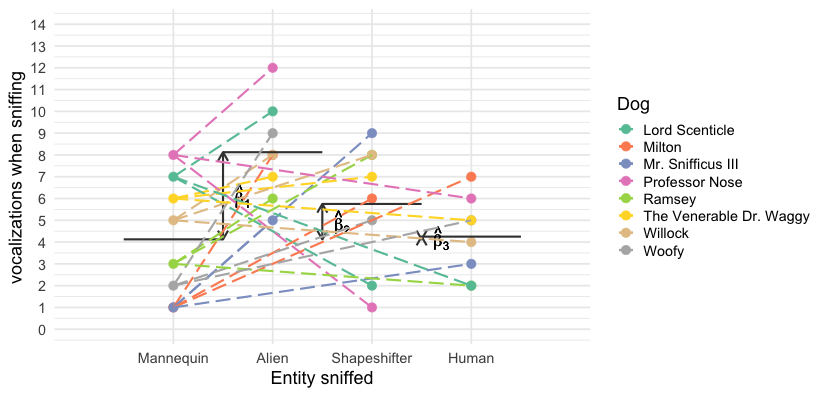

![](repeated_measures_lme_files/figure-html/unnamed-chunk-13-1.png)

Historic: Repeated measures ANOVA (RM-ANOVA)

* Restricts the model in two ways
  * Assumes effects are equivalent across participants (the effect in participant 1 is the same as in participant 2)
  * Errors have compound symmetry/sphericity
    + CS: The correlation between scores across conditions is the same
    + Sphericity: differences between scores in pairs of conditions have the same variance
    + These restrictions may be unrealistic

Multilevel modelling (MLM) approach

* Fewer restrictions: doesn't require CS or sphericity
* MLM can include multiple hierarchical structures (e.g., observations within people, within clinics)
* MLMs can (in general) cope with missing values RM-ANOVA cannot.
* MLMs can be extended to categorical outcomes, RM-ANOVA cannot.
* Contrast coding is possible

---
# Fitting the model

+ A trickier but more flexible option

  + Manually set contrasts

  + Can get parameter estimates, diagnostic plots, and robust methods
]

+ Specify the repeated measures with `(rm_predictors|id_var)`

  + Automatically sets contrasts

  + Built in interaction plot with `afex_plot()`

  + But ... no parameter estimates, diagnostic plots, or robust methods

  + See other lecture
]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Contrasts

If the dog training has been successful then we'd expect sniffer dogs to make more vocalizations when sniffing alien entities than non alien-entities.

* **Contrast 1**: {alien, shapeshifter} vs. {human, mannequin}

We have two 'chunks' in contrast 1 that would then need to be decomposed:

* **Contrast 2**: {alien} vs. {shapeshifter}
* **Contrast 3**: {human} vs. {mannequin}

Using the rules for contrast coding we'd get the codes in Table 4:

.center[
<table>
<caption>Table 4: Contrast coding for the entity variable</caption>
 <thead>
  <tr>
   <th style="text-align:left;"> Group </th>
   <th style="text-align:left;"> Contrast 1 </th>
   <th style="text-align:left;"> Contrast 2 </th>
   <th style="text-align:left;"> Contrast 3 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> Alien </td>
   <td style="text-align:left;"> 1/2 </td>
   <td style="text-align:left;"> 1/2 </td>
   <td style="text-align:left;"> 0 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Human </td>
   <td style="text-align:left;"> -1/2 </td>
   <td style="text-align:left;"> 0 </td>
   <td style="text-align:left;"> 1/2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Mannequin </td>
   <td style="text-align:left;"> -1/2 </td>
   <td style="text-align:left;"> 0 </td>
   <td style="text-align:left;"> -1/2 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> Shapeshifter </td>
   <td style="text-align:left;"> 1/2 </td>
   <td style="text-align:left;"> -1/2 </td>
   <td style="text-align:left;"> 0 </td>
  </tr>
</tbody>
</table>
]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Fitting the model

```r
aliens_vs_non = c(1/2, -1/2, -1/2, 1/2)
alien_vs_shape = c(1/2, 0, 0, -1/2)
human_vs_manquin = c(0, 1/2, -1/2, 0)

contrasts(sniff_tib$entity) <- cbind(aliens_vs_non, alien_vs_shape, human_vs_manquin)

sniff_ri <- nlme::lme(
* vocalizations ~ 1,
* random = ~1|dog_name, #
  data = sniff_tib
  )

sniff_ent <- nlme::lme(
* vocalizations ~ entity, #
  random = ~1|dog_name,
  data = sniff_tib
  )

sniff_rs <- nlme::lme(
  vocalizations ~ entity,
* random = ~entity|dog_name, #
  data = sniff_tib)
```

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# The model

```r
anova(sniff_ent)
```

<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Effect </th>
   <th style="text-align:right;"> numDF </th>
   <th style="text-align:right;"> denDF </th>
   <th style="text-align:right;"> F-value </th>
   <th style="text-align:right;"> p-value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:right;"> 1 </td>
   <td style="text-align:right;"> 21 </td>
   <td style="text-align:right;"> 162.36 </td>
   <td style="text-align:right;"> 0.00 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> entity </td>
   <td style="text-align:right;"> 3 </td>
   <td style="text-align:right;"> 21 </td>
   <td style="text-align:right;"> 4.54 </td>
   <td style="text-align:right;"> 0.01 </td>
  </tr>
</tbody>
</table>

</br>

???

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Contrasts

```r
broom.mixed::tidy(sniff_ent, effects = "fixed")
```

</br>

# Interpretation

![](repeated_measures_lme_files/figure-html/unnamed-chunk-19-1.png)

---

background-image: url("media/daze_mid_still.jpg")
background-size: cover
class: no-scribble

???

**Hora**: Daze, you're back. Good news. The sniffer dogs did well - it looks like the training worked:the dogs make significantly more vocalisations to aliens and shapeshifters than they do for the mannequins. I'm optimistic.

---
background-image: none
background-color: #000000
class: no-scribble

???
**Daze**: We have intercepted another transmission.
**Hora**: Oh no, show me.
---
background-image: none
background-color: #000000
class: no-scribble

???

---
background-image: none
background-color: #000000
class: no-scribble

???

**Daze**: I told you, not good news ... they don't like dogs! What kind of evil creatures are we dealing with?

**Hora**: Masking with scents? Interesting. Let's do some more research.

---
class: center, middle, title-slide, inverse
layout: false

## Scenting a victory ... factorial repeated measures designs

---
# Can scents distract the sniffer dogs?

.pull-left[
* 50 sniffer dogs
  + Participated in all conditions
  + Sniffed 9 different 'things'
* Predictor: **entity**
  + **Human**: the dog sniffs a human
  + **Shapeshifter** the dog sniffs an alien in humanoid form
  + **Alien** the dog sniffs an alien in lizard form
* Predictor: **scent_mask**
 + The entity had no masking scent (**none**)
 + The entity was smeared with **human** pheromones
 + The entity was smeared with **fox** pheromones
* Outcome:
  + Number of vocalizations during each 1 minute sniff
]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# The model

* Let's simplify things by ignoring the fact that **entity** and **scent_mask** will be represented by two dummy variables each (and the interaction by 4!)
* We can model individual differences in all parameters

.center[.eq_lrge[.ong[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = \hat{b}_{0j} + \hat{b}_{1j}\text{entity}_{ij} + \hat{b}_{2j}\text{scent}_{ij} + \hat{b}_{3j}(\text{entity}_{ij}\times\text{scent}_{ij}) + e_{ij}\\
\hat{b}_{0j} & = \hat{b}_0 + \hat{u}_{0j} \\
\hat{b}_{1j} & = \hat{b}_1 + \hat{u}_{1j} \\
\hat{b}_{2j} & = \hat{b}_2 + \hat{u}_{2j} \\
\hat{b}_{3j} & = \hat{b}_3 + \hat{u}_{3j} \\
\end{aligned}`
$$
]]]

* This model will be too complex to fit
* The simplest version of the repeated measures model instead treats the effects of predictor variables as fixed, but acknowledges that dogs, overall, will vary in their vocalizations:

.center[.eq_lrge[.ong[
$$
`\begin{aligned}
\text{vocalizations}_{ij} & = \hat{b}_{0j} + \hat{b}_{1}\text{entity}_{ij} + \hat{b}_{2}\text{scent}_{ij} + \hat{b}_{3}(\text{entity}_{ij}\times\text{scent}_{ij}) + e_{ij}\\
\hat{b}_{0j} & = \hat{b}_0 + \hat{u}_{0j} \\
\end{aligned}`
$$
]]]

---
class: center
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

# The data

<div class="datatables html-widget html-fill-item-overflow-hidden html-fill-item" id="htmlwidget-4148d43ae341b466b50c" style="width:100%;height:auto;"></div>
<script type="application/json" data-for="htmlwidget-4148d43ae341b466b50c">{"x":{"filter":"none","vertical":false,"caption":"<caption>Table 7: Data for the scent masking example<\/caption>","data":[["1","2","3","4","5","6","7","8","9","10","11","12","13","14","15","16","17","18","19","20","21","22","23","24","25","26","27","28","29","30","31","32","33","34","35","36","37","38","39","40","41","42","43","44","45","46","47","48","49","50","51","52","53","54","55","56","57","58","59","60","61","62","63","64","65","66","67","68","69","70","71","72","73","74","75","76","77","78","79","80","81","82","83","84","85","86","87","88","89","90","91","92","93","94","95","96","97","98","99","100","101","102","103","104","105","106","107","108","109","110","111","112","113","114","115","116","117","118","119","120","121","122","123","124","125","126","127","128","129","130","131","132","133","134","135","136","137","138","139","140","141","142","143","144","145","146","147","148","149","150","151","152","153","154","155","156","157","158","159","160","161","162","163","164","165","166","167","168","169","170","171","172","173","174","175","176","177","178","179","180","181","182","183","184","185","186","187","188","189","190","191","192","193","194","195","196","197","198","199","200","201","202","203","204","205","206","207","208","209","210","211","212","213","214","215","216","217","218","219","220","221","222","223","224","225","226","227","228","229","230","231","232","233","234","235","236","237","238","239","240","241","242","243","244","245","246","247","248","249","250","251","252","253","254","255","256","257","258","259","260","261","262","263","264","265","266","267","268","269","270","271","272","273","274","275","276","277","278","279","280","281","282","283","284","285","286","287","288","289","290","291","292","293","294","295","296","297","298","299","300","301","302","303","304","305","306","307","308","309","310","311","312","313","314","315","316","317","318","319","320","321","322","323","324","325","326","327","328","329","330","331","332","333","334","335","336","337","338","339","340","341","342","343","344","345","346","347","348","349","350","351","352","353","354","355","356","357","358","359","360","361","362","363","364","365","366","367","368","369","370","371","372","373","374","375","376","377","378","379","380","381","382","383","384","385","386","387","388","389","390","391","392","393","394","395","396","397","398","399","400","401","402","403","404","405","406","407","408","409","410","411","412","413","414","415","416","417","418","419","420","421","422","423","424","425","426","427","428","429","430","431","432","433","434","435","436","437","438","439","440","441","442","443","444","445","446","447","448","449","450"],["56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","56f9p","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","2m89y","682h3","682h3","682h3","682h3","682h3","682h3","682h3","682h3","682h3","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","7o1d2","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","2k3vo","ik011","ik011","ik011","ik011","ik011","ik011","ik011","ik011","ik011","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","1a19m","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","8ex22","629m5","629m5","629m5","629m5","629m5","629m5","629m5","629m5","629m5","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","13gbv","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","9rh3t","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","vagkw","7q328","7q328","7q328","7q328","7q328","7q328","7q328","7q328","7q328","9t256","9t256","9t256","9t256","9t256","9t256","9t256","9t256","9t256","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","kwbat","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","4ex74","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","0n7n8","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","rq46l","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","wbyb8","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","il0j6","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","36sdu","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","17jo3","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","18x8g","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","yn6pm","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","8d4sj","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","g5ggk","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","pyatf","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","l73ta","97ali","97ali","97ali","97ali","97ali","97ali","97ali","97ali","97ali","881d7","881d7","881d7","881d7","881d7","881d7","881d7","881d7","881d7","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","rf84i","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","amdw2","y193g","y193g","y193g","y193g","y193g","y193g","y193g","y193g","y193g","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","uf48a","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","b6fif","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","7ei00","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ja6a6","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","ub64o","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","gpq57","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","2peo7","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","3lxrp","4g179","4g179","4g179","4g179","4g179","4g179","4g179","4g179","4g179","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","fxxcm","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","q0uh8","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","7e62r","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","6n3p1","jt877","jt877","jt877","jt877","jt877","jt877","jt877","jt877","jt877","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","1sy79","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","bg7j4","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67","uxl67"],["Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human","Alien","Alien","Alien","Shapeshifter","Shapeshifter","Shapeshifter","Human","Human","Human"],["Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None","Fox","Human","None"],[7,9,8,11,6,8,3,3,3,8,8,10,10,7,10,6,4,3,13,5,5,4,4,7,8,2,2,7,10,12,9,6,12,8,2,2,11,9,11,10,9,7,7,5,2,6,9,11,8,9,11,5,4,2,8,7,11,6,4,11,9,4,3,8,15,13,13,11,15,9,7,5,12,15,13,11,11,12,10,3,4,7,7,13,8,9,6,5,3,3,8,11,10,6,8,6,7,4,3,8,9,7,7,6,7,7,3,3,9,9,11,8,7,13,9,5,3,14,15,15,11,12,10,10,4,4,13,11,14,10,11,11,5,5,4,5,7,9,6,9,8,5,4,2,10,9,12,9,8,7,7,5,4,12,10,16,11,9,13,8,5,3,7,8,10,9,6,9,5,4,2,12,13,15,9,9,16,7,5,3,8,11,9,8,9,11,7,3,1,9,9,12,8,11,10,6,3,4,8,7,9,10,12,9,9,3,3,14,11,18,14,8,13,8,6,3,10,9,11,10,9,10,7,8,3,5,3,11,9,5,9,7,5,3,11,13,12,12,11,12,7,6,3,12,12,15,7,8,9,10,4,3,6,10,13,7,8,8,5,2,3,9,7,8,9,9,6,4,3,2,13,19,19,16,14,16,9,5,6,7,9,12,7,9,12,8,5,4,10,12,12,7,9,11,8,3,4,9,13,13,11,8,10,7,7,3,10,10,14,8,8,11,9,4,2,11,10,11,8,16,14,9,4,5,9,9,13,11,8,12,8,5,3,9,11,16,11,9,13,9,6,4,10,7,10,6,7,7,6,4,3,8,8,10,4,7,12,5,1,2,12,12,17,12,14,13,11,5,4,11,13,17,7,10,13,11,5,5,9,10,8,6,8,12,7,3,2,7,9,8,8,10,10,4,3,1,10,9,17,6,8,5,7,6,2,5,8,15,7,4,7,3,2,1,5,10,14,9,11,14,8,4,2,7,9,9,11,9,8,10,3,2,11,11,13,10,11,15,10,5,4,9,12,11,7,8,10,7,4,2]],"container":"<table class=\"display\">\n  <thead>\n    <tr>\n      <th> <\/th>\n      <th>dog_id<\/th>\n      <th>entity<\/th>\n      <th>scent_mask<\/th>\n      <th>vocalizations<\/th>\n    <\/tr>\n  <\/thead>\n<\/table>","options":{"dom":"tp","columnDefs":[{"className":"dt-center","targets":[1,2,3]},{"className":"dt-right","targets":4},{"orderable":false,"targets":0}],"pageLength":10,"order":[],"autoWidth":false,"orderClasses":false},"selection":{"mode":"multiple","selected":null,"target":"row","selectable":null}},"evals":[],"jsHooks":[]}</script>

---
class: center

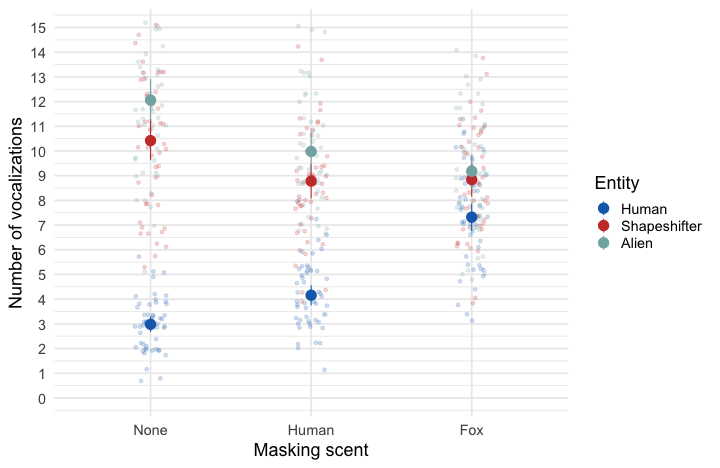

# The data

![](repeated_measures_lme_files/figure-html/unnamed-chunk-22-1.png)

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Contrasts

We have a natural control group for the entity (human) so a natural contrast is to use dummy coding.

* **Contrast 1**: {alien} vs. {human}
* **Contrast 2**: {shapeshifter} vs. {human}

We have a natural control group for the scent masks (no scent) so a natural contrast is to use dummy coding.

* **Contrast 1**: {human} vs. {none}
* **Contrast 2**: {fox} vs. {none}

---
# Specifying contrasts

The level order of the variables is:

```r
levels(scent_tib$entity)
```

```
## [1] "Human"        "Shapeshifter" "Alien"
```

```r
levels(scent_tib$scent_mask)
```

```
## [1] "None"  "Human" "Fox"
```

We can do nothing (default dummy coding will do the above) or set up contrasts explicitly with:

```r
contrasts(scent_tib$entity) <- contr.treatment(3, base = 1)
contrasts(scent_tib$scent_mask) <- contr.treatment(3, base = 1)
```

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover
# Building models

```r
scent_base <- nlme::lme(
* vocalizations ~ 1, #
  random = ~1|dog_id,
  data = scent_tib
  )

scent_ent <- nlme::lme(
* vocalizations ~ entity, #
  random = ~1|dog_id,
  data = scent_tib
  )

scent_scent <- nlme::lme(
* vocalizations ~ entity + scent_mask, #
  random = ~1|dog_id,
  data = scent_tib
  )

scent_int <- nlme::lme(
* vocalizations ~ entity + scent_mask + entity:scent_mask, #
  random = ~1|dog_id,
  data = scent_tib
  )
```

---

```r
anova(scent_base, scent_ent, scent_scent, scent_int)
```
.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> Name </th>
   <th style="text-align:right;"> Model </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> AIC </th>
   <th style="text-align:right;"> BIC </th>
   <th style="text-align:right;"> logLik </th>
   <th style="text-align:left;"> Test </th>
   <th style="text-align:right;"> L.Ratio </th>
   <th style="text-align:left;"> p-value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> scent_base </td>
   <td style="text-align:right;"> 1 </td>
   <td style="text-align:right;"> 3 </td>
   <td style="text-align:right;"> 2428.57 </td>
   <td style="text-align:right;"> 2440.89 </td>
   <td style="text-align:right;"> -1211.29 </td>
   <td style="text-align:left;">  </td>
   <td style="text-align:right;"> NA </td>
   <td style="text-align:left;"> NA </td>
  </tr>
  <tr>
   <td style="text-align:left;"> scent_ent </td>
   <td style="text-align:right;"> 2 </td>
   <td style="text-align:right;"> 5 </td>
   <td style="text-align:right;"> 2107.09 </td>
   <td style="text-align:right;"> 2127.60 </td>
   <td style="text-align:right;"> -1048.54 </td>
   <td style="text-align:left;"> 1 vs 2 </td>
   <td style="text-align:right;"> 325.48 </td>
   <td style="text-align:left;"> &lt;.001 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> scent_scent </td>
   <td style="text-align:right;"> 3 </td>
   <td style="text-align:right;"> 7 </td>
   <td style="text-align:right;"> 2099.80 </td>
   <td style="text-align:right;"> 2128.48 </td>
   <td style="text-align:right;"> -1042.90 </td>
   <td style="text-align:left;"> 2 vs 3 </td>
   <td style="text-align:right;"> 11.29 </td>
   <td style="text-align:left;"> .004 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> scent_int </td>
   <td style="text-align:right;"> 4 </td>
   <td style="text-align:right;"> 11 </td>
   <td style="text-align:right;"> 1925.05 </td>
   <td style="text-align:right;"> 1970.03 </td>
   <td style="text-align:right;"> -951.53 </td>
   <td style="text-align:left;"> 3 vs 4 </td>
   <td style="text-align:right;"> 182.74 </td>
   <td style="text-align:left;"> &lt;.001 </td>
  </tr>
</tbody>
</table>
]
--

</br>

**"It is never sensible to interpret main effects in the presence of a significant interaction effect."**

]]

---
background-image: url("media/spaceship_light_2_ppt_hex.jpg")
background-size: cover

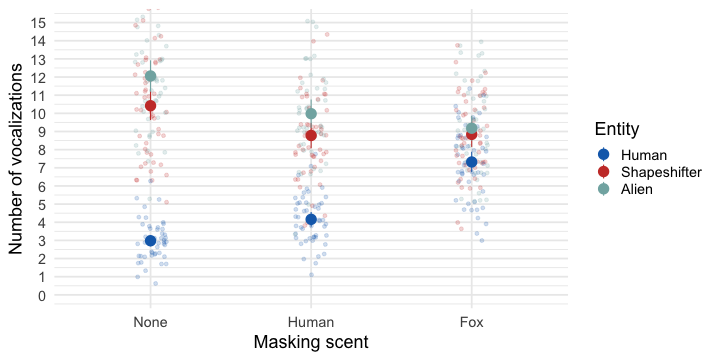

# Entity × scent_mask interaction

```r
broom.mixed::tidy(scent_int, effects = "fixed")
```

</br>

.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> (Intercept) </td>
   <td style="text-align:right;"> 2.98 </td>
   <td style="text-align:right;"> 0.331 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> 8.993 </td>
   <td style="text-align:right;"> 0.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityShapeshifter </td>
   <td style="text-align:right;"> 7.44 </td>
   <td style="text-align:right;"> 0.360 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> 20.641 </td>
   <td style="text-align:right;"> 0.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityAlien </td>
   <td style="text-align:right;"> 9.08 </td>
   <td style="text-align:right;"> 0.360 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> 25.191 </td>
   <td style="text-align:right;"> 0.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> scent_maskHuman </td>
   <td style="text-align:right;"> 1.18 </td>
   <td style="text-align:right;"> 0.360 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> 3.274 </td>
   <td style="text-align:right;"> 0.001 </td>
  </tr>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> scent_maskFox </td>
   <td style="text-align:right;"> 4.34 </td>
   <td style="text-align:right;"> 0.360 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> 12.041 </td>
   <td style="text-align:right;"> 0.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;background-color: yellow !important;"> fixed </td>
   <td style="text-align:left;background-color: yellow !important;"> entityShapeshifter:scent_maskHuman </td>
   <td style="text-align:right;background-color: yellow !important;"> -2.82 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.510 </td>
   <td style="text-align:right;background-color: yellow !important;"> 392 </td>
   <td style="text-align:right;background-color: yellow !important;"> -5.532 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;background-color: yellow !important;"> fixed </td>
   <td style="text-align:left;background-color: yellow !important;"> entityAlien:scent_maskHuman </td>
   <td style="text-align:right;background-color: yellow !important;"> -3.26 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.510 </td>
   <td style="text-align:right;background-color: yellow !important;"> 392 </td>
   <td style="text-align:right;background-color: yellow !important;"> -6.395 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;background-color: yellow !important;"> fixed </td>
   <td style="text-align:left;background-color: yellow !important;"> entityShapeshifter:scent_maskFox </td>
   <td style="text-align:right;background-color: yellow !important;"> -5.92 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.510 </td>
   <td style="text-align:right;background-color: yellow !important;"> 392 </td>
   <td style="text-align:right;background-color: yellow !important;"> -11.614 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.000 </td>
  </tr>
  <tr>
   <td style="text-align:left;background-color: yellow !important;"> fixed </td>
   <td style="text-align:left;background-color: yellow !important;"> entityAlien:scent_maskFox </td>
   <td style="text-align:right;background-color: yellow !important;"> -7.22 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.510 </td>
   <td style="text-align:right;background-color: yellow !important;"> 392 </td>
   <td style="text-align:right;background-color: yellow !important;"> -14.164 </td>
   <td style="text-align:right;background-color: yellow !important;"> 0.000 </td>
  </tr>
</tbody>
</table>
]

---
## Entity × scent_mask interaction: parameter 1

.center[.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityShapeshifter:scent_maskHuman </td>
   <td style="text-align:right;"> -2.82 </td>
   <td style="text-align:right;"> 0.51 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> -5.53 </td>
   <td style="text-align:right;"> 0 </td>
  </tr>
</tbody>
</table>

]]

.center[
![](repeated_measures_lme_files/figure-html/unnamed-chunk-32-1.png)
]
---

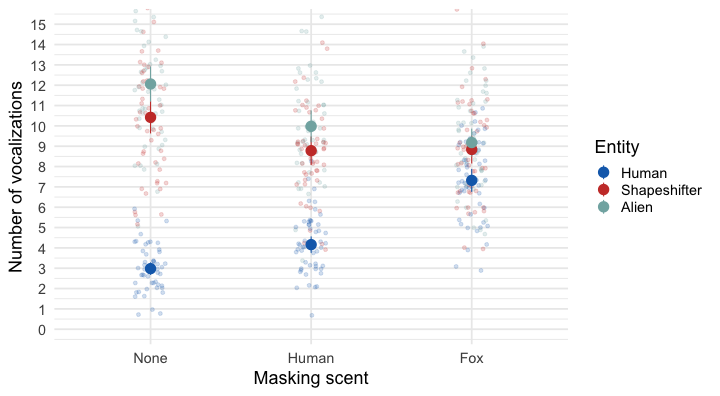

## Entity × scent_mask interaction: parameter 1

---
## Entity × scent_mask interaction: parameter 2

.center[.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityAlien:scent_maskHuman </td>
   <td style="text-align:right;"> -3.26 </td>
   <td style="text-align:right;"> 0.51 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> -6.4 </td>
   <td style="text-align:right;"> 0 </td>
  </tr>
</tbody>
</table>
]]

???
The human scent increases vocalizations to humans and although it reduces vocalizations to aliens dogs are still able to discriminate between aliens smeared with human scent and humans smeared with human scent. And aliens smeared with human scent still have a lot more vocalizations than humans with no scent.

---
## Entity × scent_mask interaction: parameter 2

.center[.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityAlien:scent_maskHuman </td>
   <td style="text-align:right;"> -3.26 </td>
   <td style="text-align:right;"> 0.51 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> -6.4 </td>
   <td style="text-align:right;"> 0 </td>
  </tr>
</tbody>
</table>
]]

???
The human scent increases vocalizations to humans and although it reduces vocalizations to shapeshifters, dogs are still able to discriminate between shapeshifters smeared with human scent and humans smeared with human scent. And shapeshifters smeared with human scent still have a lot more vocalizations than humans with no scent.

---
## Entity × scent_mask interaction: parameter 3
.center[.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityShapeshifter:scent_maskFox </td>
   <td style="text-align:right;"> -5.92 </td>
   <td style="text-align:right;"> 0.51 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> -11.61 </td>
   <td style="text-align:right;"> 0 </td>
  </tr>
</tbody>
</table>
]]

.center[
![](repeated_measures_lme_files/figure-html/unnamed-chunk-40-1.png)
]
---
## Entity × scent_mask interaction: parameter 3

.center[.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityShapeshifter:scent_maskFox </td>
   <td style="text-align:right;"> -5.92 </td>
   <td style="text-align:right;"> 0.51 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> -11.61 </td>
   <td style="text-align:right;"> 0 </td>
  </tr>
</tbody>
</table>
]]

???

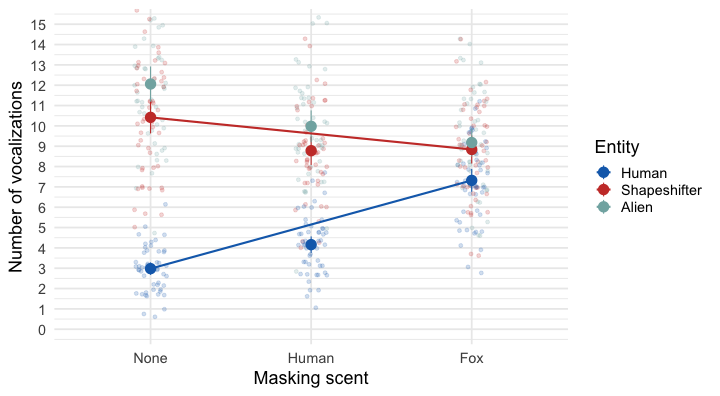

The fox scent increases vocalizations to humans and although it reduces vocalizations to shapeshifters dogs are still able to discriminate between shapeshifters smeared with fox scent and humans smeared with fox scent. And shapeshifters smeared with fox scent still have a lot more vocalizations than humans with no scent.

---

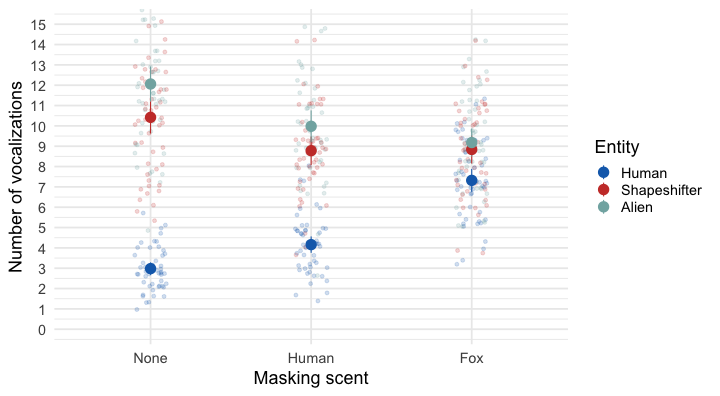

## Entity × scent_mask interaction: parameter 4

.center[.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityAlien:scent_maskFox </td>
   <td style="text-align:right;"> -7.22 </td>
   <td style="text-align:right;"> 0.51 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> -14.16 </td>
   <td style="text-align:right;"> 0 </td>
  </tr>
</tbody>
</table>
]]

---
## Entity × scent_mask interaction: parameter 4

.center[.whitebox[
<table>
 <thead>
  <tr>
   <th style="text-align:left;"> effect </th>
   <th style="text-align:left;"> term </th>
   <th style="text-align:right;"> estimate </th>
   <th style="text-align:right;"> std.error </th>
   <th style="text-align:right;"> df </th>
   <th style="text-align:right;"> statistic </th>
   <th style="text-align:right;"> p.value </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:left;"> fixed </td>
   <td style="text-align:left;"> entityAlien:scent_maskFox </td>
   <td style="text-align:right;"> -7.22 </td>
   <td style="text-align:right;"> 0.51 </td>
   <td style="text-align:right;"> 392 </td>
   <td style="text-align:right;"> -14.16 </td>
   <td style="text-align:right;"> 0 </td>
  </tr>
</tbody>
</table>
]]

???

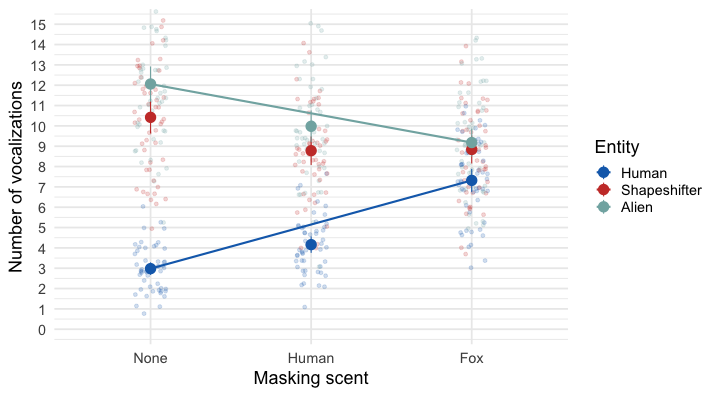

The fox scent increases vocalizations to humans and although it reduces vocalizations to aliens dogs are still able to discriminate between aliens smeared with fox scent and humans smeared with fox scent. And aliens smeared with fox scent still have a lot more vocalizations than humans with no scent.

---
background-image: none
background-color: #000000
class: no-scribble
